Janhoo 1270nm Gain Chip (RSOA) with Low Ripple and O Band for External Cavity Tunable Light Sources
Janhoo 1270nm Gain Chip (RSOA) with Low Ripple and O Band for External Cavity Tunable Light Sources
Specifications
Brand Name :
JANHOO
Model Number :
JSA-S27R90P05
Place of Origin :
CHINA
MOQ :
5
Price :
514USD
Delivery Time :
7DAYS
Description
Janhoo 1310nm Gain Chip
The Janhoo Gain Chip series is designed as a semiconductor optical element that serves as the optical gain medium in external cavity semiconductor lasers. JHBF offers both low reflectivity and high reflectivity types for the vertical facet side reflectivity. Products are available in Chip or COC (Chip on Carrier) formats, and can also be packaged into devices according to customer requirements.
Product Features
  • Proprietary chips with independent controllability
  • O band operation
  • Low ripple products
Applications
  • External cavity tunable light source (TLS)
  • Silicon photonics tunable light source
Janhoo 1270nm Gain Chip (RSOA) with Low Ripple and O Band for External Cavity Tunable Light Sources
Technical Specifications
Parameter Symbol Working Conditions Min Typ Max Unit
Working current Iop 250 300 mA
Forward Voltage VF 1.2 2 V
Centre wavelength λc If=250mA,Tc=25℃ 1270 nm
ASE Power PASE If=250mA,Tc=25℃ 5 mW
ASE Ripple Ripple If=250mA,Tc=25℃ 0.1 0.2 dB
Emission Angle θR 26 °
Vertical Divergence Angle θt --- --- 30 °
Horizontal Divergence Angle θp --- --- 16 °
AR (Anti-Reflection) Reflectivity RANG 0.01 %
HR (High-Reflection) Reflectivity RNOR 90 %
Operating Temperature TC I=Iop 25 45 °C
Storage Temperature Tstg -40 --- 85 °C
Chip Size 1000*400*100(±20) μm

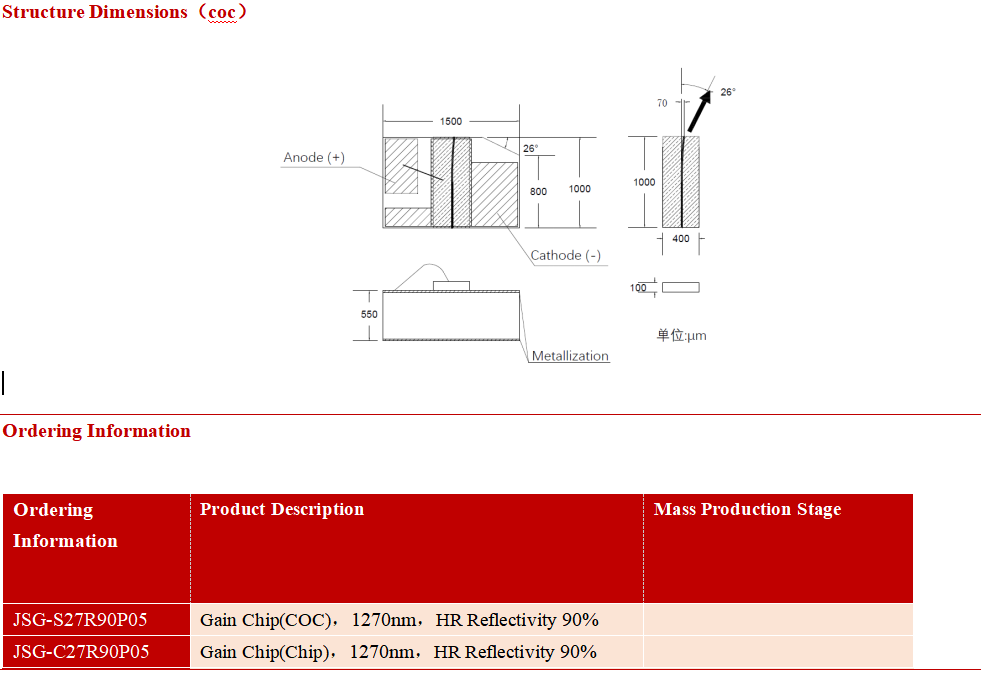

Janhoo 1270nm Gain Chip (RSOA) with Low Ripple and O Band for External Cavity Tunable Light Sources
