1550nm Gain Chip (RSOA) with Low Ripple and HR Reflectivity 95% for External Cavity Tunable Light Sources
1550nm Gain Chip (RSOA) with Low Ripple and HR Reflectivity 95% for External Cavity Tunable Light Sources
1550nm Gain Chip (RSOA) with Low Ripple and HR Reflectivity 95% for External Cavity Tunable Light Sources
1550nm Gain Chip (RSOA) with Low Ripple and HR Reflectivity 95% for External Cavity Tunable Light Sources
Specifications
Brand Name :
JANHOO
Model Number :
JSA-S55R95P01
Place of Origin :
CHINA
MOQ :
5
Price :
460USD
Delivery Time :
7DAYS
Description
Janhoo 1550nm Gain Chip
The JHBF Gain Chip series is designed as a semiconductor optical element that serves as the optical gain medium in external cavity semiconductor lasers. JHBF offers both low reflectivity and high reflectivity types for the vertical facet side reflectivity. Products are available in Chip or COC (Chip on Carrier) formats, and can also be packaged into devices according to customer requirements.
1550nm Gain Chip (RSOA) with Low Ripple and HR Reflectivity 95% for External Cavity Tunable Light Sources
Product Features
  • Proprietary chips with independent controllability
  • C-Band operation
  • Low ripple products
  • HR Reflectivity 95%
Applications
  • External cavity tunable light source (TLS)
  • Silicon photonics tunable light source
Product Specifications
Parameter Symbol Working conditions Min Typ Max Unit
Working current Iop 180 240 mA
Forward Voltage VF --- 1.2 2 V
Centre wavelength λc If=180mA,Tc=25℃ 1530 nm
ASE Power PASE If=180mA,Tc=25℃ 1 dBm
ASE Ripple Ripple If=180mA,Tc=25℃ 0.5 2 dB
Emission Angle θR 20 °
Vertical Divergence Angle θt --- --- 24.9 °
Horizontal Divergence Angle θp --- --- 16.7 °
AR (Anti-Reflection) Reflectivity RANG 0.01 %
HR (High-Reflection) Reflectivity RNOR 95 %
Operating Temperature TC I=Iop 25 40 °C
Storage Temperature Tstg -40 --- 85 °C

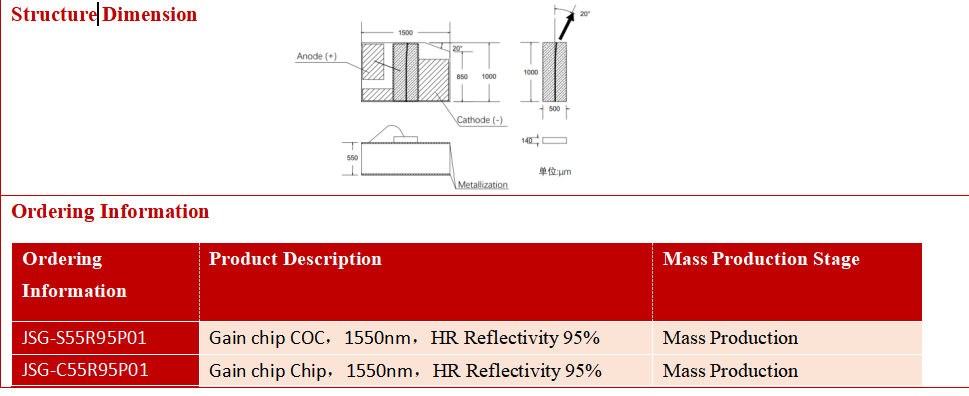

Size 1000*500*140(±20) μm
