Janhoo 830nm Gain Chip RSOA with Low Ripple and Infrared Band for External Cavity Lasers
Janhoo 830nm Gain Chip RSOA with Low Ripple and Infrared Band for External Cavity Lasers
Janhoo 830nm Gain Chip RSOA with Low Ripple and Infrared Band for External Cavity Lasers
Janhoo 830nm Gain Chip RSOA with Low Ripple and Infrared Band for External Cavity Lasers
Specifications
Brand Name :
JANHOO
Model Number :
JSG-S83R98P40
Place of Origin :
CHINA
MOQ :
5
Price :
514USD
Delivery Time :
7DAYS
Description
Janhoo 830nm Gain Chip
The Janhoo Gain Chip series serves as a semiconductor optical element designed to function as the optical gain medium in external cavity semiconductor lasers. JHBF provides both low reflectivity and high reflectivity types for the vertical facet side reflectivity. Available in Chip or COC (Chip on Carrier) formats, these products can also be custom packaged into devices to meet specific customer requirements.
Product Features
  • Proprietary chips with independent controllability
  • Infrared Band operation
  • Low ripple products for stable performance
Applications
  • External cavity tunable light source (TLS)
  • Silicon photonics tunable light source
Technical Specifications
Parameter Symbol Working Conditions Min Typ Max Unit
Working current Iop 250 400 mA
Forward Voltage VF 2.05 2.45 V
Centre wavelength λc If=250mA, Tc=25℃ 825 nm
ASE Power PASE If=250mA, Tc=25℃ 40 mW
ASE Ripple Ripple If=250mA, Tc=25℃ 0.2 2 dB
Emission Angle θR 26 °
Vertical Divergence Angle θt --- --- 32 °
Horizontal Divergence Angle θp --- --- 15 °
AR (Anti-Reflection) Reflectivity RANG 0.5 %
HR (High-Reflection) Reflectivity RNOR 98 %
Operating Temperature TC I=Iop 25 45 °C
Storage Temperature Tstg 85 °C

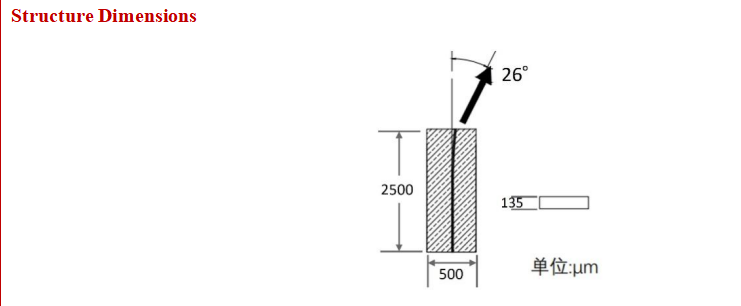

Chip Size 2500*500*135(±20) μm
