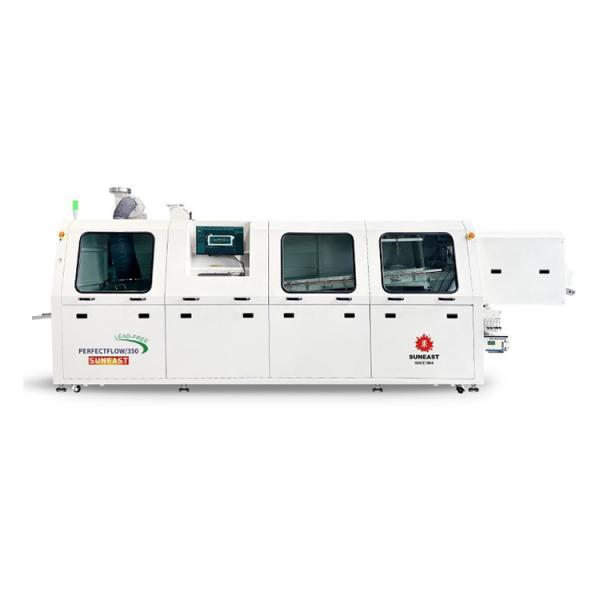

Double Wave Soldering Machine SUNEAST PERFECTFLOW/350 Welding Manufacturing Productivity
Double Wave Soldering Machine SUNEAST PERFECTFLOW/350 Welding Manufacturing Productivity
Specifications
Brand Name :
SUNEAST
Model Number :
PERFECTFLOW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
21000 USD
Payment Terms :
T/T
Supply Ability :
The production capacity is 100 units a month
Delivery Time :
7-20
Packaging Details :
Vacuum packing plus wooden box packing
PCB size :
350mm
Power supply :
3-phase 5-wire system 380V 50HZ
Dimension :
6000mm x 1422mm x 1750mm
Weight :
1850 KG
Startup power :
33KW
Normal power :
Approx.8.5KW
Description

Full Automatic Lead free Wave Soldering Machine With Tin Spray Wave Soldering SUNEAST PERFECTFLOW/350 For PCB Assembly Production Line

Description
PERFECTFLOW series is a tunnel type full sealing nitrogen filled wave soldering system. It adopts the world's first sealing solution for welding zone and the innovative segmented conveying solution, which perfectly meets the requirements of flexible welding process angle and enlarges the bottom space of boards, which solves the jamming, inconvenience in operation and maintenance problems of segmented conveyor in common wave soldering machine. It can extremely play the application effect of the nitrogen protection process of wave soldering, and greatly improve the performance of tunnel type wave soldering equipment and welding process quality.

Characteristics
Tunnel type full sealing nitrogen filled wave soldering machine PERFECTFLOW series Characteristics:

  • Conveyor system: adopts the segmented floating structure to effectively prevent the deformation of guide rail; innovative segmented conveying system, smoother conveying; the space of the bottom side of the board can be flexibly configured.
  • Preheating system: adopts the drawer type module energy-saving design, infrared and hot air convection heating can be combined as required, PID temperature control mode, with infrared heat compensation between the preheating zones and solde ring unit which effectively reduce temperature loss.
  • Soldering system: The solder pot is heated by external heat, the inner liner of the solder pot is made of cast iron, and treated with anti-corrosion; the solder pot is sealed with special elastic material and equipped with electric mode solder pot, which can be lifted, moved up and down freely.
  • Nitrogen filled system: the world's first sealing solution for welding zone,Flexible welding process angle; equipped with axygen separator for monitoring the remaining oxygen
  • PC+PLC control system: Windows 10 operation system, Chinese/English operation interface, process profile/data automatic storage function, over or under level of flux liguid alarm, low tin level alarm.

Product Specification

Model NO. PERFECTFLOW/350 PERFECTFLOW/450 PERFECTFLOW/610
Dimension:L*W*H(mm) 6000×1422×1750 6000×1522×1750 6000×1692×1750
Weight Appro×.1850kg Appro×.2050kg Appro×.2300kg
Power Supply 3PH 380V 50HZ 3PH 380V50HZ 3PH 380V 50HZ
Start up Power 33KW 33KW 45KW
Normal Running Power Approx.8.5KW Approx.9KW Approx.11KW
Control System PC+PLC PC+PLC PC+PLC
Spraying movement Step motor Step motor Step motor
Spraying Pressure 0.2Mpa~0.4Mpa 0.2Mpa~0.4Mpa 0.2Mpa~0.4Mpa
Flux Flow Control Option Option Option
Auto Flux Filling Standard Standard Standard
Exhausting Top exhaust Top exhaust Top exhaust
Exhausting Pipe Diameter(mm) φ250 φ250 φ250
Exhaust fan power 750 750 750
Preheating Mode Hot air convection/IR Hot air convection/IR Hot air convection/IR
Temperature Control Mode PID PID PID
Preheating Zone Quantity 3 3 3
Preheating Zone Length(mm) 1800 1800 1800
Preheating Temperature Range Room temperature~200℃ Room temperature~200℃ Room temperature~200℃
Warm-up Time(min) Approx.12min(setting:150℃) Approx.12min(setting:150℃) Approx.12min(setting:150℃)
Preheating Blower Motor 250W 3PH 220VAC 250W 3PH 220VAC 250W 3PH 220VAC
Width(mm) 50~350 50~450 50~610
PCB Conveying Direction L→R(Option:R→L) L→R(Option:R→L) L→R(Option:R→L)
Conveying Speed(mm/min) 500~1800 500~1800 500~1800
Conveying Height(mm) 750±20 750±20 750±20
Available Component Height(mm) 上(Top)120,下(Bottom)15 上(Top)120,下(Bottom)15 上(Top)120,下(Bottom)15
Conveying Speed Control Mode Closed loop stepless speed regulation by inverter Closed loop stepless speed regulation by inverter Closed loop stepless speed regulation by inverter
Finger Heavy type double hook finger Heavy type double hook finger Heavy type double hook finger
Option:Special jig for fixture Option:Special jig for fixture Option:Special jig for fixture
Conveying Angle 4.5~6.3° 4.5~6.3° 4.5~6.3°
Solder Pot Type Mechanical Mechanical Mechanical
Solder Pot Material Casting Iron Casting Iron Casting Iron
Wave Height Adjustment Inverter:Digital Control by PC
Cooling type Nitrogen knife cooling
Solder Pot Heating Power 13.5KW 13.5KW 18KW
Max Solder Pot Temperature 300℃ 300℃ 300℃
Solder Pot Capacity Appro×.480kg Appro×.550kg Appro×.640kg
Wave Driving Power 180W*2 3PH 220VAC 180W*2 3PH 220VAC 180W*2 3PH 220VAC
Solder Pot Warm-up Time Approx.150min(setting:250℃) Approx.150min(setting:250℃) Approx.150min(setting:250℃)
Temperature Control Mode PID PID PID
Finger Cleaning System Brush Brush Brush
Nitrogen purity 100.00% 100.00% 100.00%
Nitrogen consumption Appro×.20m³/h Appro×.22m³/h Appro×.25m³/h
Nitrogen pressure 0.4Mpa~0.6Mpa 0.4Mpa~0.6Mpa 0.4Mpa~0.6Mpa
External spraying unit (option) PERFECTFLOW/350-Z PERFECTFLOW/450-Z PERFECTFLOW/610-Z
500mm The total length+500mm 500mm The total length+500mm 500mm The total length+500mm
