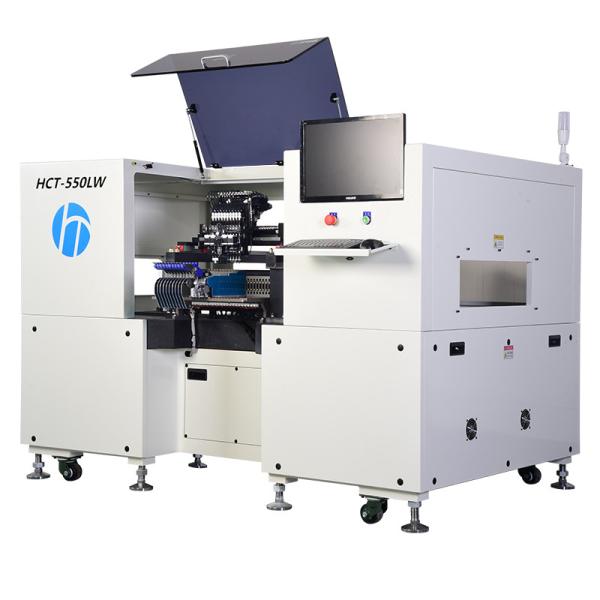

HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry
Specifications
Brand Name :
HCT
Model Number :
HCT-550LW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
20000-32000
Payment Terms :
T/T
Supply Ability :
The production capacity is 50 units a month
Delivery Time :
5-15
Packaging Details :
Vacuum packing plus wooden box packing
Application :
SMT for led Production Line
Name :
Pick and place machine
Maximum board size :
1200x480mm
Condition :
Original new and used
Usage :
SMD LED SMT
core components :
PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
machinery test report :
Provided
Model :
HCT-550LW
Brands :
HXT
Description

HXT SMT Machine for SMT Production Line HCT-550LW Pick and Place Machine for Electronic Products Machinery 10 head LED DOB Chip Mounter 55000 CPH Automatic Nozzle Changing


Product introduction

High-accuracy: Equipped with 5 high-definition digital vision alignment camera to guarantee high accuracy on-the-fly mode. High-speed: Maximum placement speed reaching 0.065s/chip. Automatic nozzle change function to ensure the speed of different sizes of components. With a SMEMA-compatible inline conveyor for line automation. Places SMD components from 0603 to 7474, apply to LED chip, capacitors, resistors, IC, diode, odd-shape components etc. Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCBs up to 1200mm long in a single pass. Excellent quality hardware support by using international famous brands ensure placement repeatability and precision. Self-developed software simplifies production, easy operating and programming.


HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry


Product Specification

Model HCT-550LW
Alignment Flying Vision Alignment System (Bottom Fixed Cameras)
Number of head 10 heads x 1 Gantry
Rated Placement Speed Vision Alignment LED 2835 55,000 CPH()
Placement Accuracy ±0.05mm(Based on the standard chips)
Mechanical Precision ±0.02mm
Component Range Fly Camera 0603(inch)~5050~7474(mm), high-power LED, IC<10mm

Max Height H=18mm
Board Dimension(mm) Minimum 50(L) x 50(W)

Maximum 1200(L) x 480(W) 1500(L)X480(W)Optional

PCB Thickness 0.5 - 3.0
Board Handling Method Inline Conveyor
Tape Feeder Feeder Type Electric Feeder

Feeder Capacity 26(12mmStandard)

Optional 8mm, 12mm, 16mm, 24mm
Utility Power AC 220V/240V50/60Hz, Single phase


Max 3.5KW

Air Supply Built-in Vacuum Pump (for nozzles only)
Mass Approx. 1700kg
External Dimension(mm) 2,050(L) x 1,350(D) x 1,360(H)



Product details

HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry

HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry

HCT-550LW Pick And Place Machine 10heads LED Lightning Manufacturing Industry

Applications:




Widely used in LED lighting, display screen manufacturing and electronic manufacturing services (EMS) industries.

The manufacture of LED fluorescent tube, soft lamp band, LED Dob, LED display screen, especially the mounting of LED display module above P4, enough to handle all kinds of resistors, capacitors, IC, LED chips, and other components of the Mount, suitable for a variety of electronic products in bulk production.
