Specifications
Place of Origin :
China
Brand Name :
RD
MOQ :
1
Price :
$21,300
Machine Type :
Pick and Place Machine
Application :
SMT LED Assembly Line
Product name :
pick and place machine
Type :
Semi automatic
Name :
Linear LED light source pick and place machine
Marketing Type :
pick and place machine for pcb assembly
Usage :
SMT Production Assembly Line
Description
Product Introduction
Machine features
Japanese original grinding screw, with long service life, low wear, and strong stability; Dual motor electronic feeder with built-in vacuum pump, no need for external air source; Each group of mounting heads independently controls the rotation angle, resulting in higher mounting efficiency; Each nozzle corresponds independently to a 1 megapixel flying camera for visual correction; 1500mm platform, PCB boards within 500mm can be recycled for production without the need for shutdown;
Work video
Product Parameters
Model No
RD-ZT6V
RD-ZT8V
RD-ZT10V
RD-ZT12V
Number of mounting heads
6 heads
8 heads
10 heads
12 heads
Feeder Station
23 stations
27 stations
30 stations
30 stations
Optimal placement speed
40000 chips/h
50000 chips/h
60000 chips/h
70000 chips/h
Machine weight
Approximately 950KG
Approximately 1600KG
External dimensions
2000mm long × 1300mm wide × 1450mm high
Height of Attachable Components
<8mm
Maximum mounting plate size
1500mm in length ×420mm in width/can be customized non-standard 1500mm in length × 600mm in width
Substrate transfer method
Platform style manual replacement of PCB board
Machine System
Independently developed operating system
Positioning method
Visual automatic MARK points
Correction of suction error by flying swatter
Each nozzle corresponds independently to a 1 megapixelflying camera for visual correction
Programming method
Visual camera positioning programming/Excel format file coordinate import
Input powerlvoltage
AC220V/50HZ(operating power approximately 2KWH)
Mountable components
Beads,resistors,capacitors,ICs,teminals,diodes,etc.above 0603
Product Details
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light

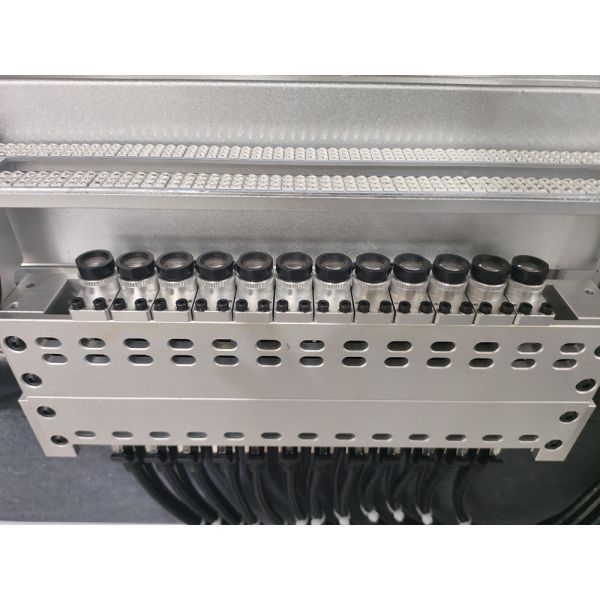

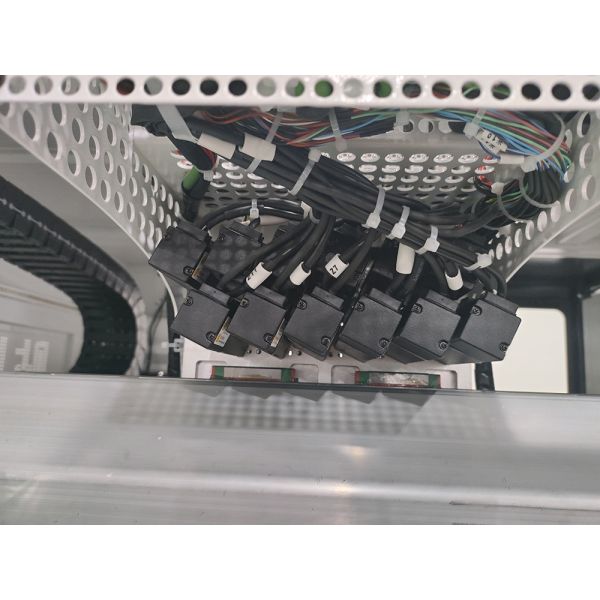

Each placement head is equipped with an independent camera motor

(i.e., an independent lens/zoom component in the "on-the-fly alignment" vision system), each with its own independent camera motor, making it one of the "ultimate configurations" for high-end precision electronics manufacturing. Through a revolutionary design of hardware parallelization, it solves the fundamental contradiction between efficiency and precision that cannot be resolved at the software level. Parallel vision processing: This is the most significant advantage. The 12 placement heads can simultaneously and independently capture images and perform recognition calculations of the components they have picked up while in motion. No waiting, no queuing.
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light


True "on-the-fly alignment": The component recognition process is 100% synchronized with the movement of the placement head. As
the placement head moves from the pick-up position to the PCB placement position, its built-in camera completes the component
recognition, positioning, and angle calculation along the way. Upon reaching the target point, placement occurs immediately,
achieving "zero" visual waiting time.
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light

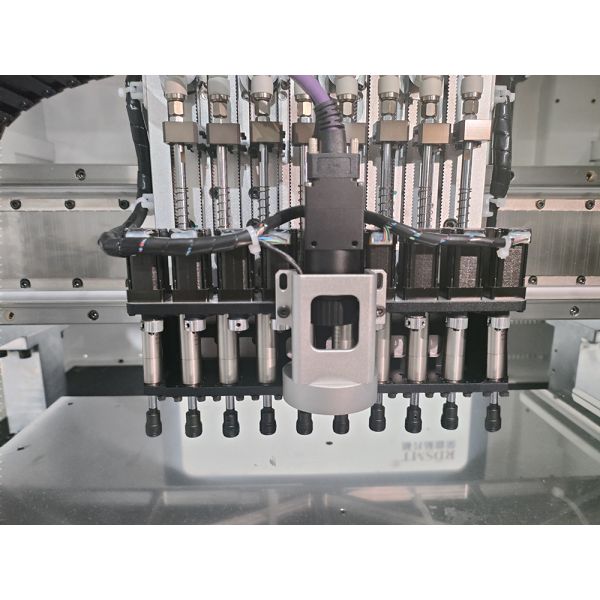

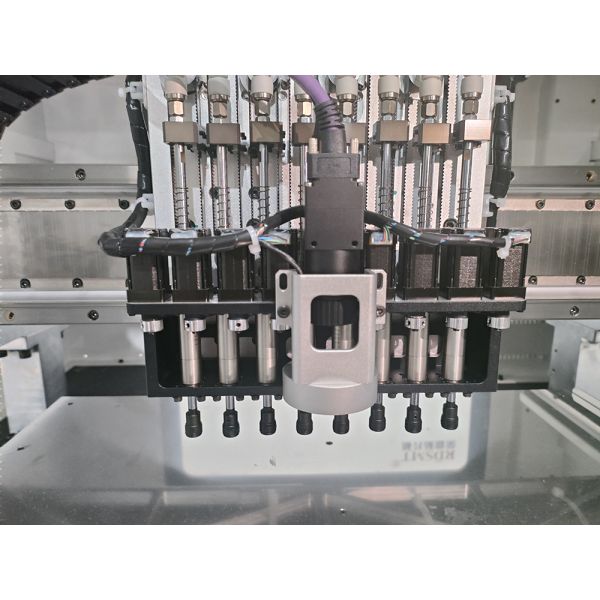

8 PLACEMENT HEAD
SIndependently control the rotation Angle, 50000chip/h
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light

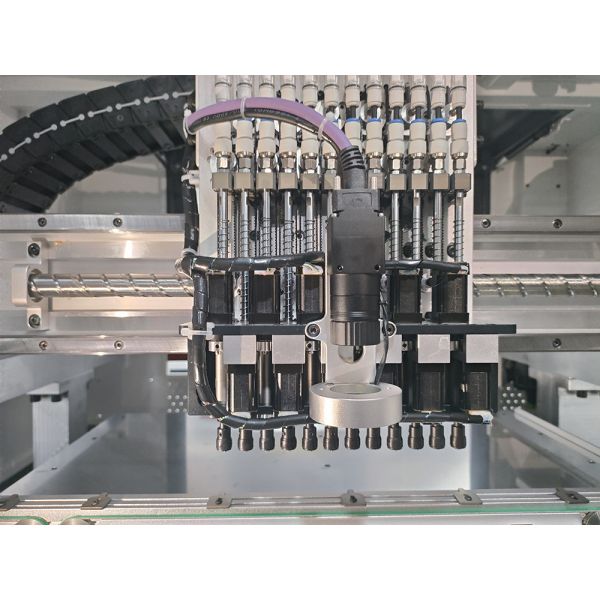

10 PLACEMENT HEAD
SIndependently control the rotation Angle, 60000chip/h
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
12 PLACEMENT HEADS(OPTION)
Independently control the rotation Angle, 70000chip/h
Certificate
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Application
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light

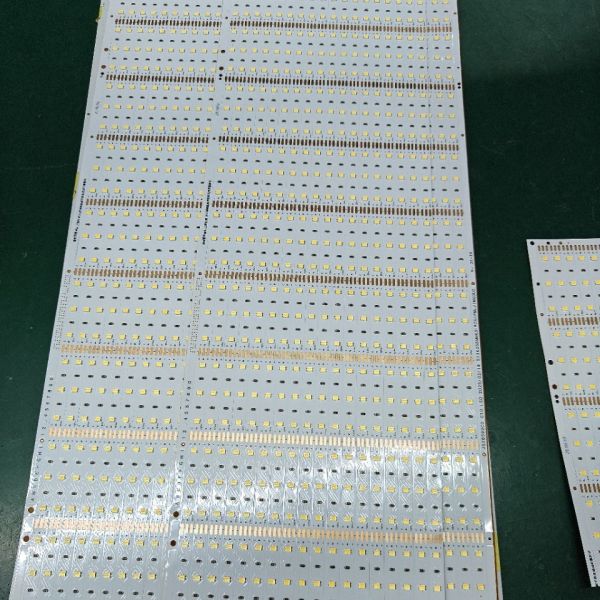

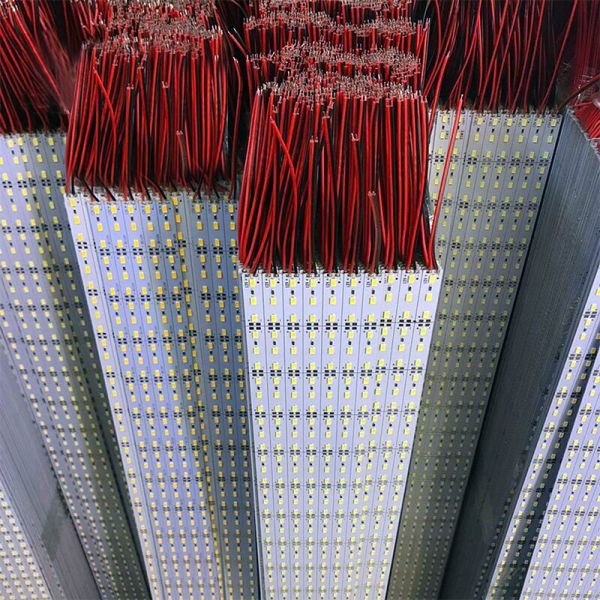

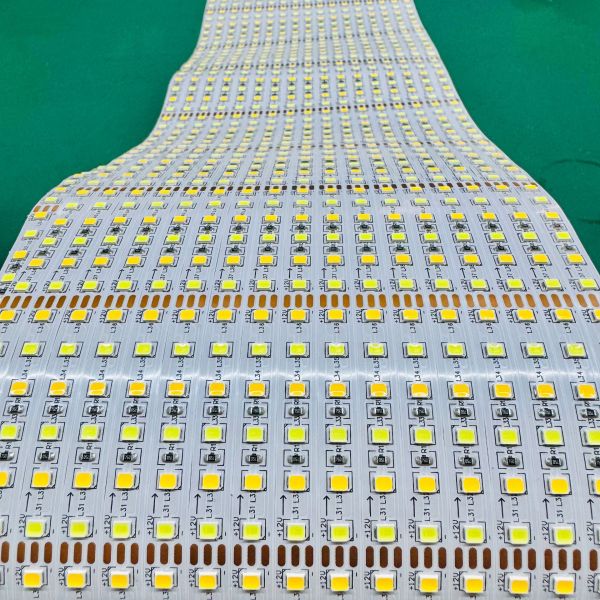

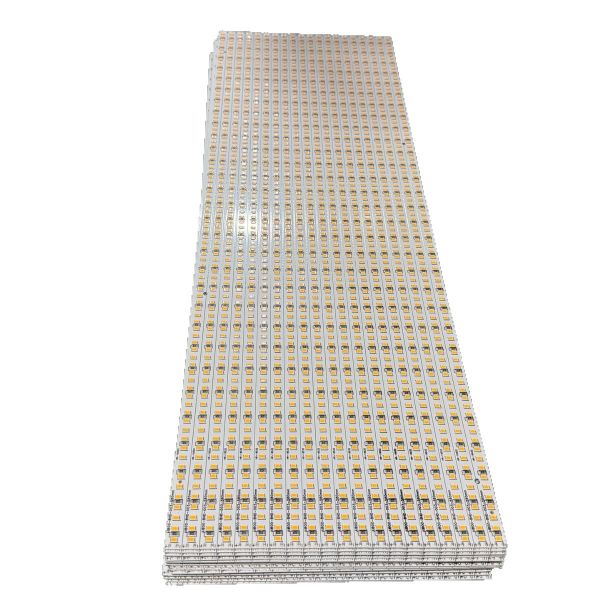

Suitable for: fluorescent tubes, soft light strips, flat panel lights, outdoor lights, ceiling lights, bulbs, terminals, etc.
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
Automatic High Speed Precision 8/10/12 Head SMT Pick and Place Machine for Linear LED Light
FAQ
Q1. This is the first time I use this kind of machine, is it easy to operate?
A: There is an English manual and guide video that show you how to use machine. We also can provide engineers to your factory for
your installation training. If you still have any question, please contact us by e-mail / Skype/ phone / trade manager online
service.

Q2: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty and after-sales for life.

Q3. If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG , we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

Q4. How to proceed an order for SMT Loader machine?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the details and places deposit for formal order.
Fourthly We arrange the production.

Q5. MOQ ?
1 set machine, mixed order is also welcomed.

Q6. How do you ship the goods and how long does it take to arrive?
A: Ship by Sea, CIF, DDP. It takes 25-35 days to arrive.

Q7. What about the lead time?
A: Stock is 3-7 days, 15-25 working days for mass production.

Q8. What is your payment method?
A: 30% Advance TT, 70% TT When the Goods are ready for Shipment.
