Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Specifications
Brand Name :
HCT
Model Number :
HCT-530LV
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
15000-26000
Payment Terms :
T/T
Supply Ability :
The production capacity is 50 units a month
Delivery Time :
5-15
Packaging Details :
Vacuum packing plus wooden box packing
Maximum board size :
1200x360mm
Placement speed :
0.086s/chip
Placement accuracy :
±0.05mm
Mechanical precision :
±0.02mm
Component range :
0603(inch)~5050~7474(mm)
Max height :
10mm
Description
Automatic SMT Machine for Smt Production Line HCT-530LV Pick and Place Machine for Electronic Products Machinery 8head LED PCB HXT machine chip mounter
Product introduction

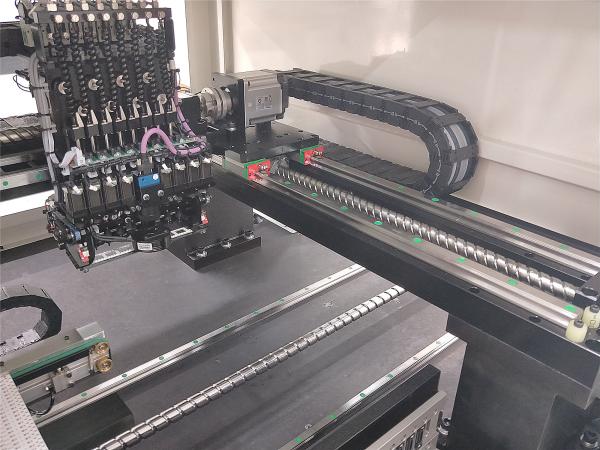

  • High-accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.
  • High-speed: Maximum placement speed reaching 0.086s/chip.
  • Each mounting head has its own Z - direction closed-loop stepper motor, which is designed for vertical motion.
  • Places SMD components from 0603 to 7474, including resistors, capacitors, standard and irregularly shaped LEDs.
  • Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCBs up to 1.2 meters long in a single pass.

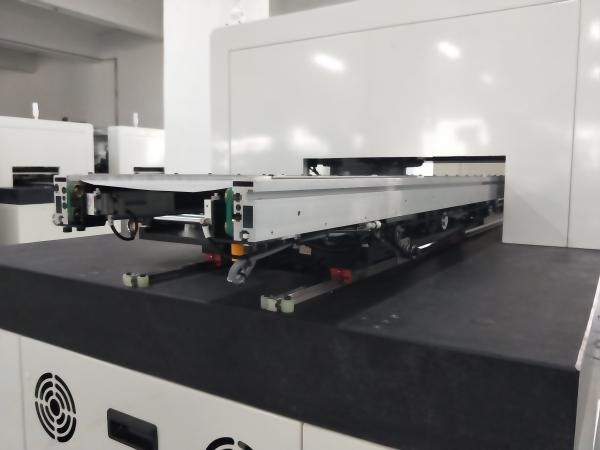

  • With a SMEMA-compatible inline conveyor for line automation.

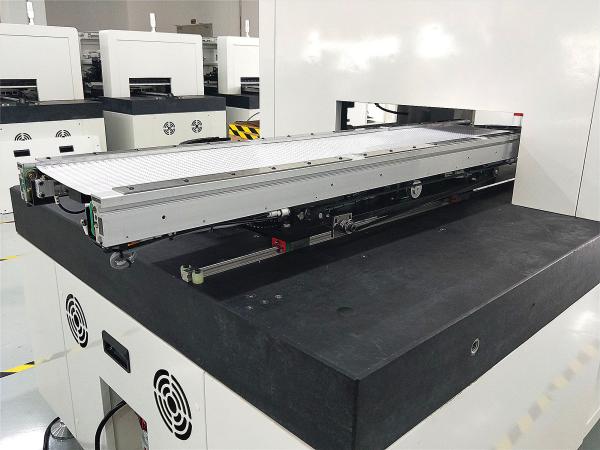

  • Heavy marble platform support to ensure long-service life.
  • Excellent quality hardware support by using international famous brands ensure placement repeatability and precision.
  • Self-developed software simplifies production, easy operating and programming.
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Product Specification
Technical Parameters
Model HCT-530LV
Alignment Flying Vision Alignment System
Number of Spindles 8 Spindles x 1 Gantry
Rated Placement Speed Vision Alignment LED 2835  45,000 CPH (Optimum)
Placement Accuracy ±0.05mm
(Based on the standard chips)
Mechanical Precision ±0.02mm
Component Range Vision Alignment 0603(inch)~5050~7474(mm),
high-power LED, IC<10mm
Max Height H=10mm
(can handle max. 16mm without vision alignment)
Board Dimension(mm) Maximum 1,200(L) x 360(W)
Board Handling Method Inline Conveyor
Tape Feeder Feeder Type Electric Feeder
Feeder Capacity 20 (12mm)
Optional 8mm, 12mm, 16mm, 24mm
Utility Power AC 220V/240V 50/60Hz, Single phase
Max 2.8KW
Air Supply 0.55-0.7MPa (5.6-7.1kgf/cm2)
Built-in Vacuum Pump for Heads
Mass Approx. 1560kg
External Dimension(mm) 2,000(L) x 1,250(D) x 1,400(H)
Product details
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Automatic HCT-530LV Pick And Place Machine 8head LED Chip Mounter PCB Manufacturing
Application :
  • Widely used in LED lighting, display screen manufacturing and electronic manufacturing services (EMS) industries.
  • The manufacture of LED fluorescent tube, soft lamp band, LED Dob, LED display screen, especially the mounting of LED display module above P4, enough to handle all kinds of resistors, capacitors, IC, LED chips, and other components of the Mount, suitable for a variety of electronic products in bulk production.
