E-flow (left to right)3 hot air; heavy-duty double hook-and-claw transmission; tin stove exhaust hood; width of across plate: 50mm-350mm

1. Connection:
   Linkage type into the plate connection way, aluminum guide, stainless steel chain drive.

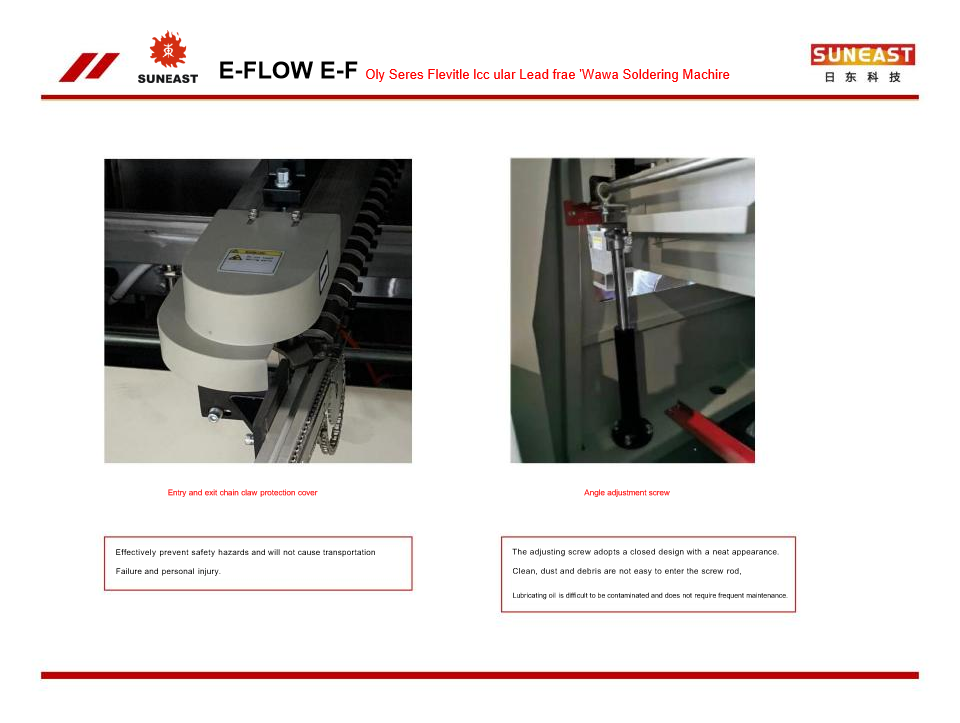

2. Transmission system:

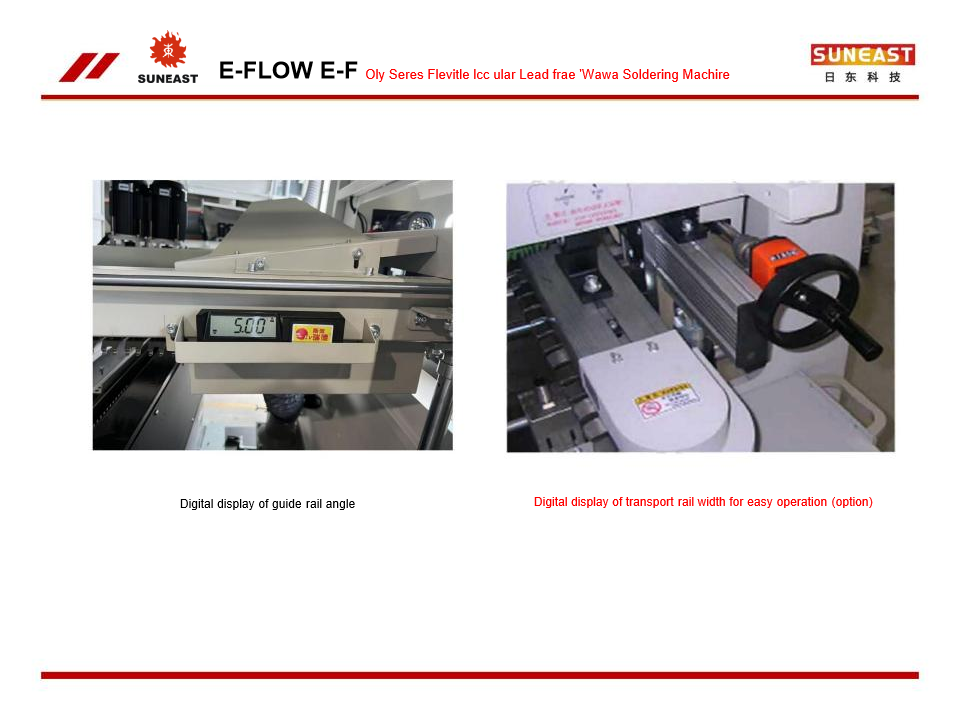

   Equipped with heavy-duty double hook claw, aluminum alloy guide rail anti-deformation structure design; manual adjustment substrate width; transmission angle can be adjusted, configuration, digital angle display; transport speed is controlled by frequency converter, stepless speed.
3. Tin oven system:
   The tank is made of special cast iron with anti-corrosion treatment, wave crest driven by direct-connected motor, variable frequency speed regulation, tin slag diversion, and oxide reduction device, and manual control of the movement of tin furnace in and out and up and down; External heating device, PID temperature control mode and low level, bit alarm.

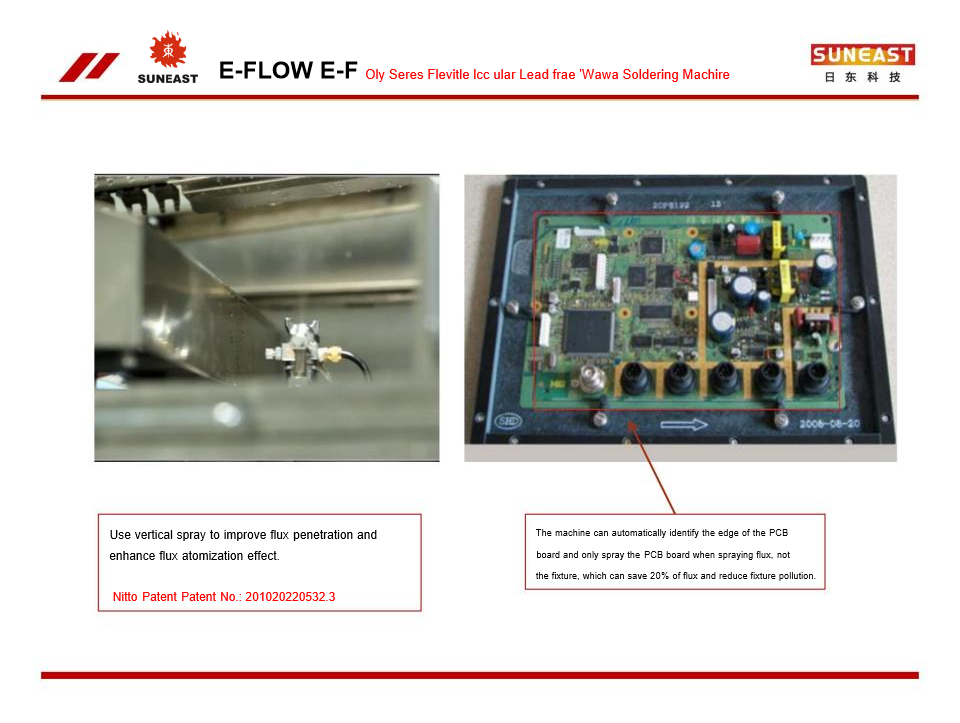

4. Spray systems:
   The spray length can be adjusted automatically, the spray width and speed can be set digitally, and the spray flow rate and the spray particle size can be adjusted by a pressure meter trimmer Constant pressure device supply flux, flux liquid, position alarm and flux auto-add; strong ventilation, filtration system.
5. Preheating system: New Drawer Modular and energy-saving design, three-stage micro-hot air cycle heating, higher thermal efficiency, temperature more uniform. Three section temperature zone, preheating zone length of 1.8 meters, PID temperature control mode.
6. Cooling system: forced up-and-down natural wind cooling.
7. Claw washing device: special brush cleaning.
8. Control system: PC + PLC electrical control system, Chinese and English Windows Operation Interface, data storage and other functions.

Automotive Electronics: ECU controller, sensors and other high-temperature reliability requirements of high welding.
LED lighting: aluminum substrate, high-power LED module through-hole welding.
Home Appliance Control Board: Power Module, Connector and other high-density PCB assembly.
