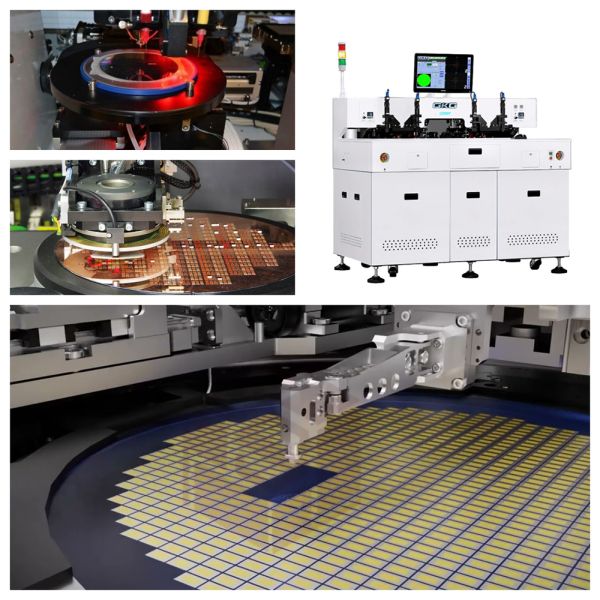

Fully Automatic High Precision Die Bonder Machine SMT Production Line for Semiconductor Packaging Chip Mounting
Machine Features
  • Front-loading and rear-loading methods, compatible with docking station for improved operator efficiency and production cycle time
  • Internationally leading dual die bonding, dual dispensing, and dual wafer search systems
  • Direct-drive motor for bonding head operation
  • Linear motor driven wafer search platform (X/Y) and feed platform (B/C)
  • Automatic angle correction system for wafer frame
  • Automatic wafer ring loading/unloading system for enhanced production efficiency
  • Precision automation ensures improved production efficiency and reduced operational costs
Technical Specifications
Production Cycle 150ms (depends on chip size and bracket)
XY Accuracy ±1mil (±0.025mm)
Die Rotation ±3°
Die XY Workbench
Die Dimensions 3mil*3mil-80mil*80mil (0.076mm*0.076mm-2mm*2mm)
Max. Angle Correction ±15°
Max. Die Ring Size 6″ (152mm) outer diameter
Max. Die Area 4.7″ (119mm) after expansion
Resolution Ratio 0.04mil (1μm)
Thimble Z Height Stroke 80mil (2mm)
Image Recognition System
Grey Scale 256 (Level Grey)
Resolution 720(H)*540(V)(Pixels)
Die Bonder's Swing Arm-and-hand System
Swing Arm of Die Bonder 105° rotatable die bonding
Die Bond Pressure Adjustable 30g-250g
Loading Workbench
Range of Stroke 500mm*120mm
XY Resolution 0.02mil (0.5μm)
Suitable Holder's Size
Length 300mm-500mm
Width 80mm-120mm
Facilities Needed
Voltage/Frequency 220V AC±5%/50HZ
Compressed Air 0.5MPa (MIN)
Rated Power 1200W
Gas Consumption 40L/min
Volume and Weight
Dimensions (L*W*H) 1900*980*1620mm
Weight 1200KG
