Specifications
Place of Origin :
Guangdong, China
Brand Name :
HXT
MOQ :
1
Price :
$380
Machine Type :
Automatic SMT Component Counter
Product name :
SMD Counter
Count speed :
5000PCS /15minutes (4mm pitch)
Usage :
SMT Chip Counting
Type :
Automatic SMD Component Counter
Application :
SMT Parts Counting
Name :
SMD Reel Counting Machine
Description
Product Introduction
1、Leak detection SMD parts counter，easy to operation,small in size and convenient to use. 2、It can be count both by forward and reverse,which is very accurate and has zero error,especially designed for SMD parts.。 3、Within the function of leak detection，when there is a missing parts,this machine will be stoped and make a voice. 4、You can set a number you need, when the counting finished the machine will be stoped, which is very convenience for you to count,issue and receive the SMD spare parts. 5、It could be equip the scanning and bar code printer,convenience for you to operate. 6、It is small and lightweight,convenient to carry， designed especally for SMD factory which use to count the SMD parts.
Work video
Product Parameters
Typical specifications：
1.Power source：
AC110V/220V,50HZ
2.Count speed:
5000PCS /15minutes（4mm pitch）
3.Rated power:
30W
4.Count range:
From -99999 to 99999pcs
5.Machine measurement:
L470*W300*H180 mm
6.Weight:
10kg
7.Applicative tape diameter：
every type of SMD tape is ok
8.Pctch:
2.4.8.10.12.16.32.44.56mm
9.Applicative tape width:
8,12,16,24,32,44,56mm
10．Packaging detail：
Carton and within foam plastics or wooden case.
Speed adjustment:
Press the“TIME/LOSS
button to chang the speed:
H(high),M(middle),L(low).
Product Details
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter

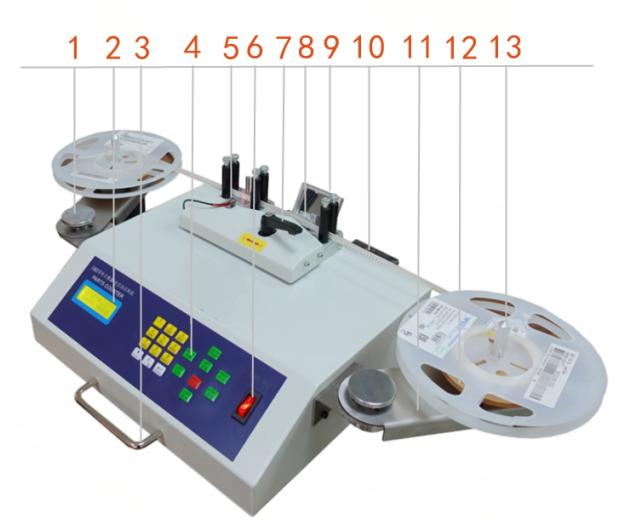

1. Positioning Knob 2. Display 3. Handle 4. keys 5. Optical Fiber Butt 6. Power Switch
7. Wrench
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter


8. Gear/Movable Blanks 9. Charging Mirror 10. Fiber Optic Amplifier 11. Movable Arm 12. Tray 13. Rocket Head （Leak-free model without components 5 and 10 above）
Certificate
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter

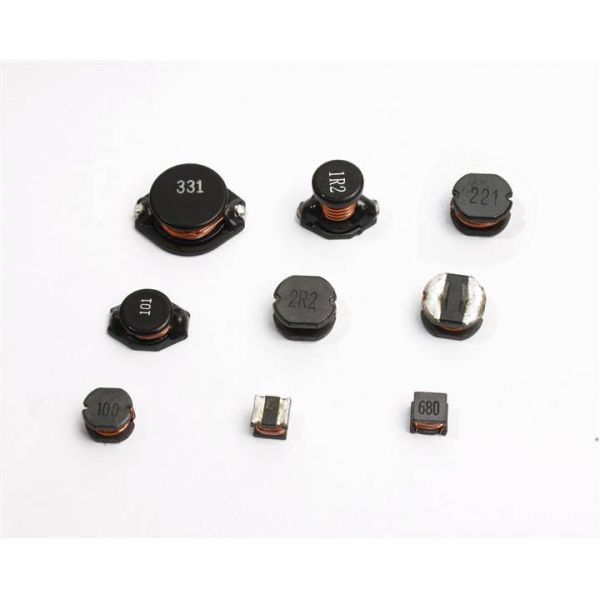

Application
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter

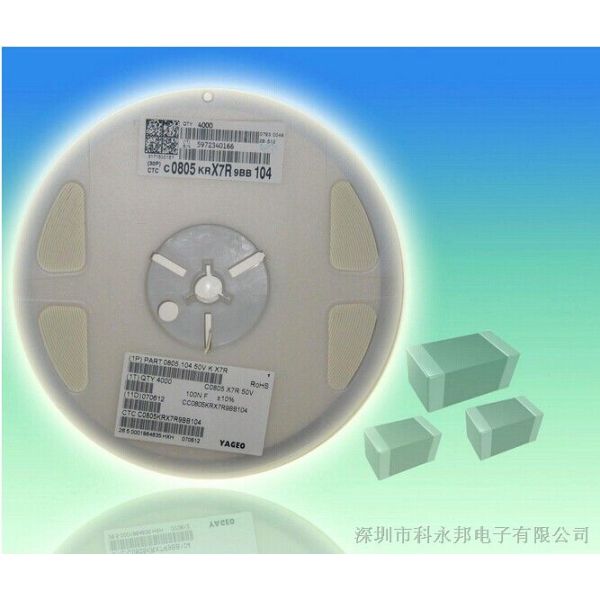

Chip Resistors and Capacitors: Resistors and capacitors (MLCC) in packages such as 0402, 0603, 0805, and 1206. How they are typically managed: At the factory level, counting them individually is rarely done. The standard practice is to weigh them, as each component has a consistent weight. A precision electronic scale can quickly estimate the quantity in a tray/reel (for example, knowing the weight of 1000 pieces, the total weight can be used to calculate the total quantity). Counters are only used in repair shops, laboratories, or when dealing with leftover quantities. Surface Mount LED: How they are managed: Similar to resistors and capacitors, weighing is used for large quantities, while counters can be used for small quantities or during inventory checks.
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
YS-802 Automatic Intelligent Digital Photoelectric SMD SMT Chip Component Counter Parts Reel Counter
FAQ
Q1. This is the first time I use this kind of machine, is it easy to operate?
A: There is an English manual and guide video that show you how to use machine. We also can provide engineers to your factory for
your installation training. If you still have any question, please contact us by e-mail / Skype/ phone / trade manager online
service.

Q2: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty and after-sales for life.

Q3. If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG , we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

Q4. How to proceed an order for SMT Loader machine?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the details and places deposit for formal order.
Fourthly We arrange the production.

Q5. MOQ ?
1 set machine, mixed order is also welcomed.

Q6. How do you ship the goods and how long does it take to arrive?
A: Ship by Sea, CIF, DDP. It takes 25-35 days to arrive.

Q7. What about the lead time?
A: Stock is 3-7 days, 15-25 working days for mass production.

Q8. What is your payment method?
A: 30% Advance TT, 70% TT When the Goods are ready for Shipment.
