Specifications
Place of Origin :
Guangdong, China
Brand Name :
HXT
MOQ :
1
Price :
$9,800
Product name :
Semi-automatic selective wave soldering
Type :
Semi-automatic
Name :
selective soldering machine
Application :
Through-Hole Components/THT Components Soldering
Machine Type :
Selective Soldering Equipment
Function :
Soldering components PCB
Description

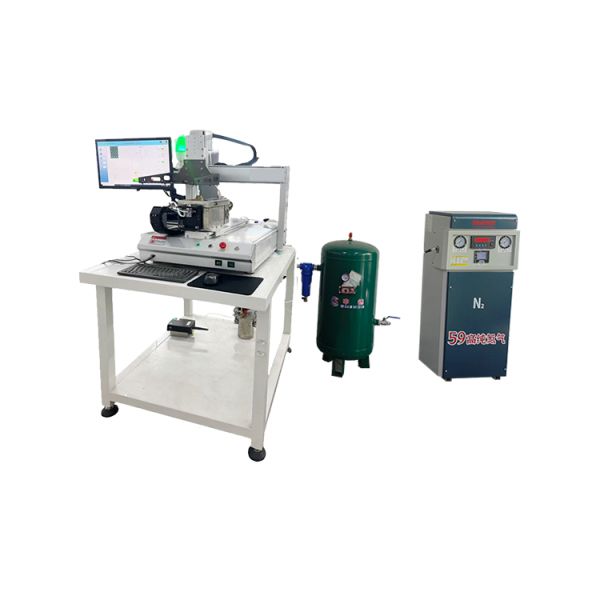

High-Reliability Selective Soldering Machine for Automotive Electronics Manufacturing
Desktop Benchtop Mini Selective Wave Soldering Equipment Machine For Rework Station Laboratory And Small Batch Production
Offline Single Head Selective Soldering Robot System For PCBA Assembly Lead-Free Process With PLC Control
Online Inline Multi-Wave Smart Soldering System For High Precision Selective Solder Wave And Dip Process
Professional Selective Soldering Station For Manual Operation And Industrial Soldering Service
Product description
1,All in one machine, in same XYZ motion table combine selective fluxing and soldering, compact & full function. 2,PCB board movement, fluxer nozzle and solder pot fixed. 3,High quality soldering. 4,Can used beside production line, flexible for production line forming. 5,Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality All software system developed by base on Windows7 system, with good trace-ability. Use scanned picture as background for path programming, moving speed, dwell time, empty move speed, Z height , wave height etc all programmed for different solder site. Critical parameters are totally under monitoring by PC software, like temperature, speed, pressure etc. Motion table was designed base on lighting concept. Servo motor and stepping motor provide motion power, ball screw synchronous belt and linear guide rail guide, accurate positioning, low noise, and smooth movement Japan original injection valve, adapt to various flux Flux is stocked by PP plastic pressure tank, make sure pressure stable without influenced of amount of flux. Tin furnace temperature, nitrogen temperature, wave height, etc. can be set by computer The tin furnace liner is made of titanium alloy stainless steel without leakage. External heating plate, uniform heat transfer N2 online heating system, to wet the soldering perfectly and reduce the solder dross. Load board manually and unload board manually Metal welding structure, with thick metal plate as base, so to reduce vibration and make machine more stable.
High-Reliability Selective Soldering Machine for Automotive Electronics Manufacturing Electronics Production Machinery
Key Features

  • All-in-one machine combining selective fluxing and soldering in a compact XYZ motion table
  • Fixed fluxer nozzle and solder pot with moving PCB board for precise operation
  • Delivers high-quality soldering results for automotive electronics production
  • Flexible placement beside production lines for efficient workflow integration
  • Full PC control with parameter storage for consistent, repeatable soldering quality
  • Windows 7-based software with excellent traceability and intuitive path programming
  • Comprehensive monitoring of critical parameters including temperature, speed, and pressure
  • Precision motion system with servo and stepping motors for accurate positioning
  • Japanese injection valve accommodates various flux types
  • Titanium alloy stainless steel tin furnace liner prevents leakage
  • N2 online heating system reduces solder dross and improves wetting
  • Sturdy metal welding structure minimizes vibration for stable operation
Technical Specifications
General Specifications
Model WDS-100B
Dimensions 550mm (L) × 650mm (W) × 650mm (H)
Power Supply Single phase 220V 50HZ
Net Weight 450KG
Max Solder Area 350 × 250mm / 300 × 300mm / 350 × 300mm / 400 × 300mm
PCB Thickness Range 0.2mm - 6mm
Position Accuracy ±0.1 mm
Flux Management
Flux Nozzle Type Jet valve
Flux Tank Capacity 1 L
Solder Pot
Standard Pot Number 1
Solder Pot Capacity 12 kgs/furnace
Max Solder Temperature 350°C
N2 Management
N2 Temperature Range 0-350°C
N2 Consumption 1-2 m³/hour/tin mouth

Application
Soldering Electronic componenets on PCB board.
