Product Introduction
Machine features Each group of mounting heads independently controls the rotation angle, resulting in higher mounting efficiency; Each nozzle corresponds independently to a 1 megapixel flying camera for visual correction; PCB boards within 600MM can be installed in one go; Suitable for: modules, soft light strips, outdoor lights, ceiling lights, flat panel lights, etc.
Work video
Product Parameters
Model No
RD-ZT8VAS
RD-ZT10VAS
RD-ZT12VAS
Number of mounting heads
8 heads
10 heads
12 heads
Feeder Station
30 stations
27 stations
30 stations
Optimal placement speed
50000 chips/h
60000chips/h
70000 chips/h
Machine weight
Approximately 1400KG
Heightof Attachable Components
<8mm
Mavimummounting plate size
600mm long×500mm wide
External dimensions
1350mm long×1350mm wide×1500mmhigh
Substrate transfer method
One section track automatic transmission
Machine System
Independentydeveloped operating system
Positioning method
Visual automatic MARK points
Correction of suction error byflying swatter
Each nozzle corresponds independently toalmegapivel flying camera for visual coection
Programming method
Visual camerapositioning programming/Ecel format filecoordinate import
Input powerfvoltage
AC220V/50HZ (operating power approximatelyZKW/H)
Mountable components
Beads,resistors,capacitors,ICs,terminals,diodes,etc above 0603
Product Details
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines

Each placement head is equipped with an independent camera motor

(i.e., an independent lens/zoom component in the "on-the-fly alignment" vision system), each with its own independent camera motor, making it one of the "ultimate configurations" for high-end precision electronics manufacturing. Through a revolutionary design of hardware parallelization, it solves the fundamental contradiction between efficiency and precision that cannot be resolved at the software level. Parallel vision processing: This is the most significant advantage. The 12 placement heads can simultaneously and independently capture images and perform recognition calculations of the components they have picked up while in motion. No waiting, no queuing.
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines


True "on-the-fly alignment": The component recognition process is 100% synchronized with the movement of the placement head. As
the placement head moves from the pick-up position to the PCB placement position, its built-in camera completes the component
recognition, positioning, and angle calculation along the way. Upon reaching the target point, placement occurs immediately,
achieving "zero" visual waiting time.
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
8 PLACEMENT HEAD
SIndependently control the rotation Angle, 50000chip/h
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
10 PLACEMENT HEAD
SIndependently control the rotation Angle, 60000chip/h
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
12 PLACEMENT HEADS(OPTION)
Independently control the rotation Angle, 70000chip/h
Certificate
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
Application
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines
Smt Pick and Place Machine Automated for Smd Led Board Assembly Mounting Technology Pcb Component Chip Mounter Placer Lines

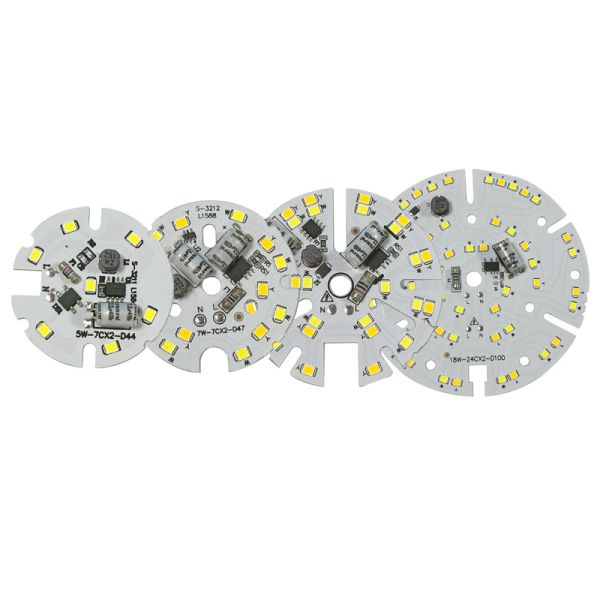

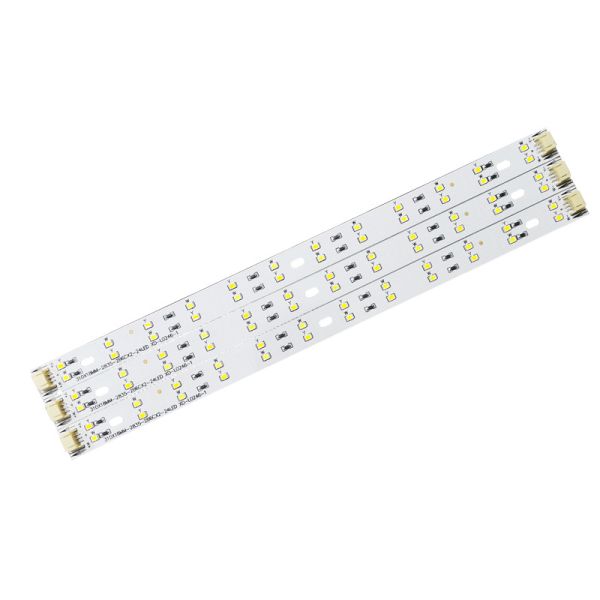

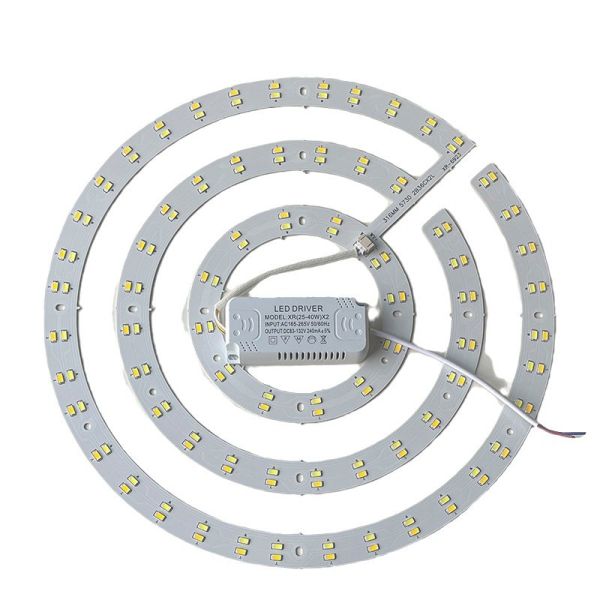

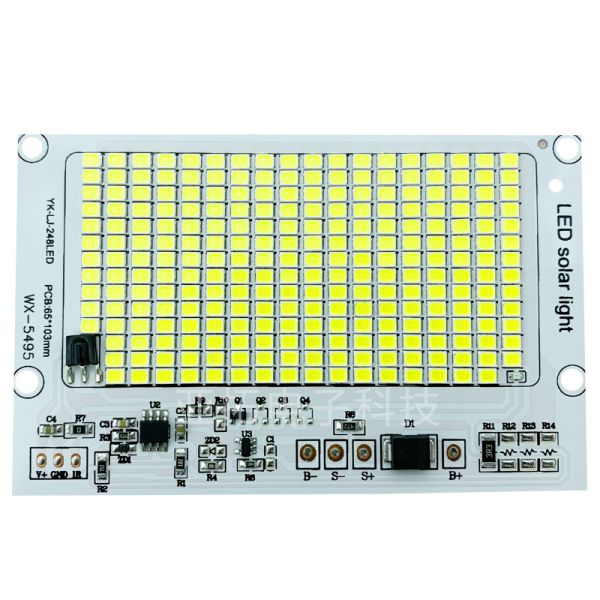

Suitable for: fluorescent tubes, soft light strips, flat panel lights, outdoor lights, ceiling lights, bulbs, terminals, etc.
