Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Specifications
Brand Name :
Winsmart
Model Number :
SMTID5X
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD15000-50000/unit
Payment Terms :
T/T
Supply Ability :
300 units per year
Delivery Time :
14-20 working days
Packaging Details :
plywood case
Safetyfeatures :
Emergency Stop Button, Overload Protection
Application :
Surface Mount Technology (SMT) Glue Dispensing
Operatingspeed :
Up to 1000 points per minute
Workingtemperaturerange :
0°C to 45°C
Powersupply :
AC 220V, 50/60Hz
Type :
Automatic Glue Dispensing Machine
Materialcompatibility :
Epoxy, Silicone, UV Glue, Conductive Adhesives
Dispensingaccuracy :
±0.01 mm
Repeatability :
±0.005 mm
Productname :
SMT Glue Dispensing Machine
Dispensingmethod :
Pneumatic/Servo Motor Controlled
Operating Temperature :
0°C to 45°C
Power Supply :
AC 220V, 50/60Hz
Glue Types Supported :
Solder paste, epoxy, UV glue, silicone
Dispensing Method :
Pneumatic/Servo motor driven
Additional Features :
Anti-drip function, automatic cleaning, multi-axis control
Dispensing Speed :
Adjustable, up to 100 mm/s
Control System :
PC
Dispensing Accuracy :
±0.01 mm
Description

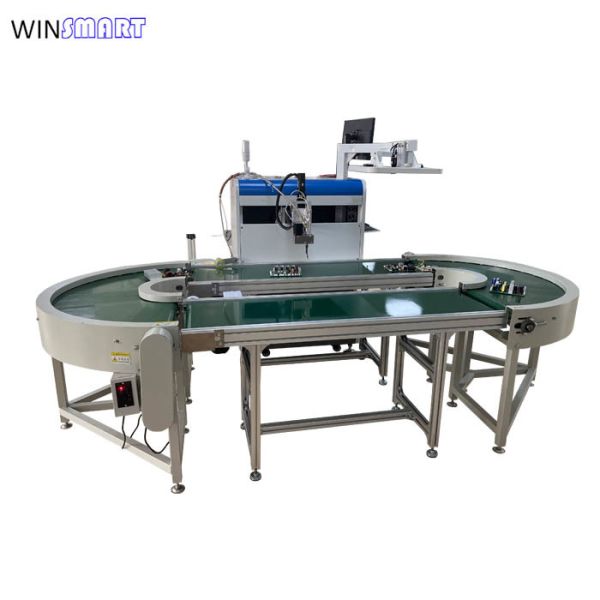

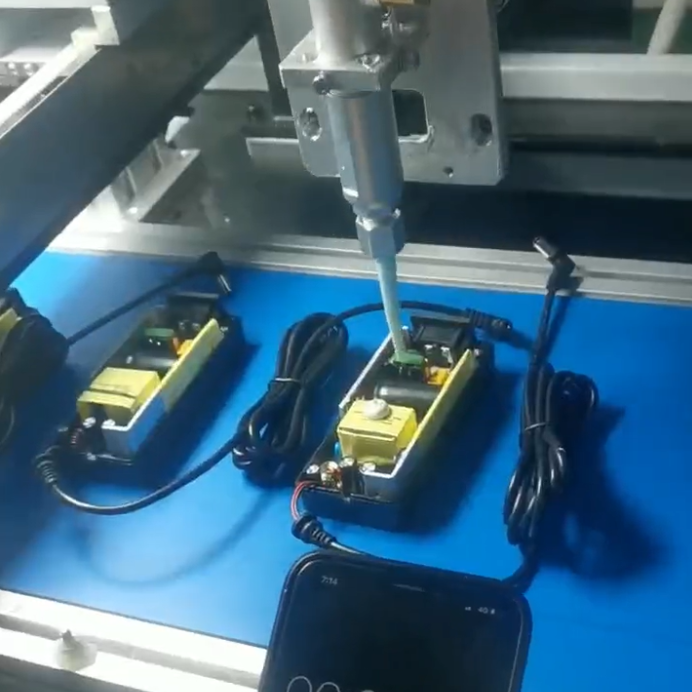

Four-axis Visual High Speed Inline Dispensing Machine Working with Conveyor
Four-axis Visual High Speed Dispensing Machine Introduction:

A Four-Axis Visual High-Speed Dispensing Machine is an advanced automation system designed for precise, high-speed application of adhesives, sealants, or other fluids in electronic and industrial assembly lines. The "four-axis" refers to X, Y, Z, and rotational R-axismotion control, enabling the nozzle to dispense at complex angles and orientations.
Equipped with a vision system, it automatically recognizes positioning marks (fiducials) to adjust dispensing paths in real time, ensuring high precision and repeatable accuracy — even on intricate or irregular surfaces.
This type of machine is commonly used in high-volume manufacturing environments for SMT, semiconductor packaging, LED modules, and mobile device assembly.

Four-axis Visual High Speed Dispensing Machine Applicable Glue:

Inverters, energy storage, photovoltaics, power supplies, automotive electronics, electronic cigarettes, 3C, semiconductors, etc.

Four-axis Visual High Speed Dispensing Machine Features:
  • CCD visual positioning, without any fixtures.
  • CCD automatically recognizes templates and generates dispensing trajectories.
  • Combines dispensing and handling processes for multiple production lines.
  • Compatible with various dispensing valves and controlling system, easy to operate, easy to learn and use.
Four-axis Visual High Speed Dispensing Machine Specifications:

Model

SMTID5X

Automatic Glue Dispenser

Yes

Dispensing Head

360°Rotatable (Optional)

Glue Capacity

2600ml

Dispensing Tilt Angle

180°(Optional)

Glue Detection

Auto(Optional)

Programming

Visual CCD

Axes

4

Working Area

400mm*400*100mm

Max Moving Speed

1000mm/s

Driven

Servo motor+ball screw

Air Pressure

≥0.65Mpa

Power Rate

1.5KW

Dispensing Valve Quantity

1

Repeatability Accuracy

±0.02mm

Control Mode

IPC + control Card

Y Axis

200mm

Machine Dimension

1200(L)x1400(W)x1650(H)mm

Machine Weight

300kgs

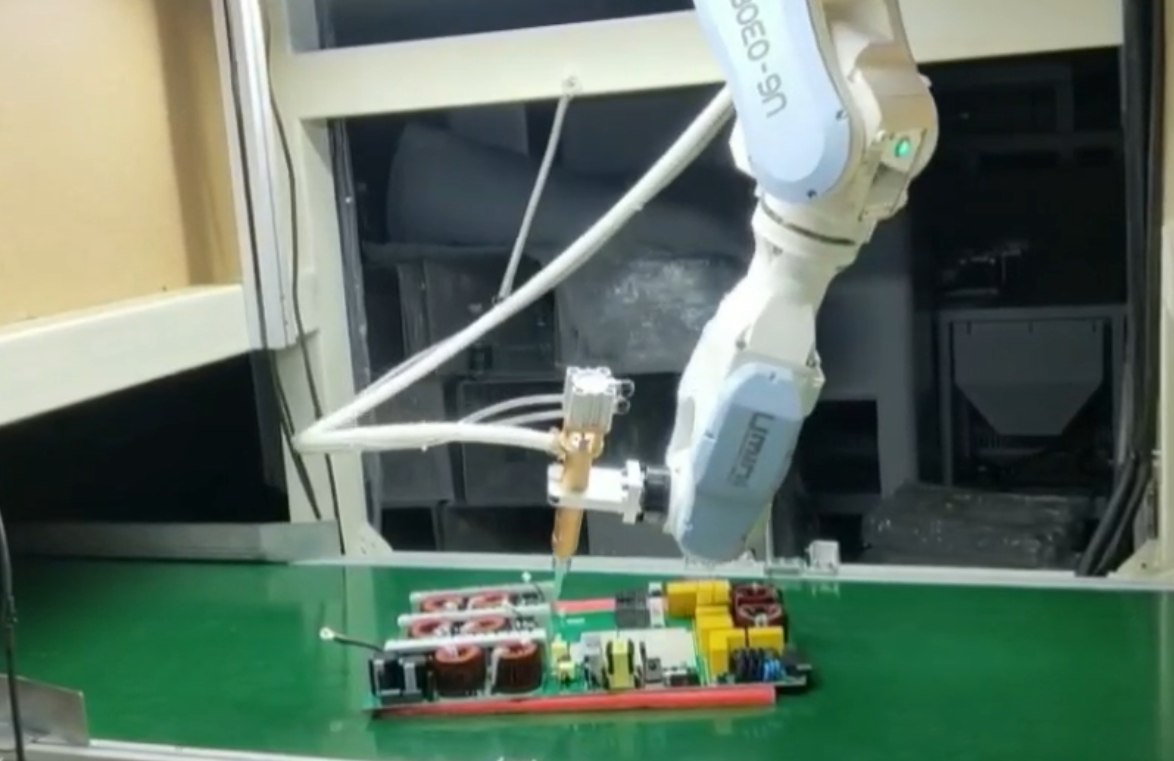

Four-axis Visual High Speed Dispensing Machine Applications:
Application Description
Mobile Phone Assembly Used for sealing, gluing, or underfill in smartphone components like camera modules and screens.
LED Packaging Applies phosphor, silicones, or adhesives precisely on LED chips and modules.
Display Panel Bonding Dispensing UV glue or bonding agents in TVs, monitors, and touch panels.
Semiconductor Packaging Underfill, dam & fill, and encapsulation processes for ICs and MEMS devices.
Automotive Electronics High-reliability adhesive application for ECUs, sensors, and control modules.
Battery & Energy Products Applies thermal interface materials (TIMs), sealants, or adhesives in battery cells.
PCB Assembly (SMT) Applies glue for component fixation, especially on double-sided boards.
Medical Devices
  • For sealing microfluidic chips, sensors, and wearable medical electronics.
