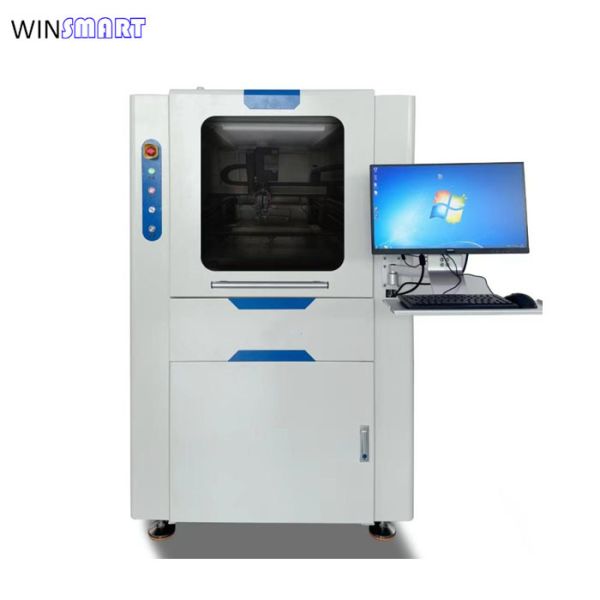

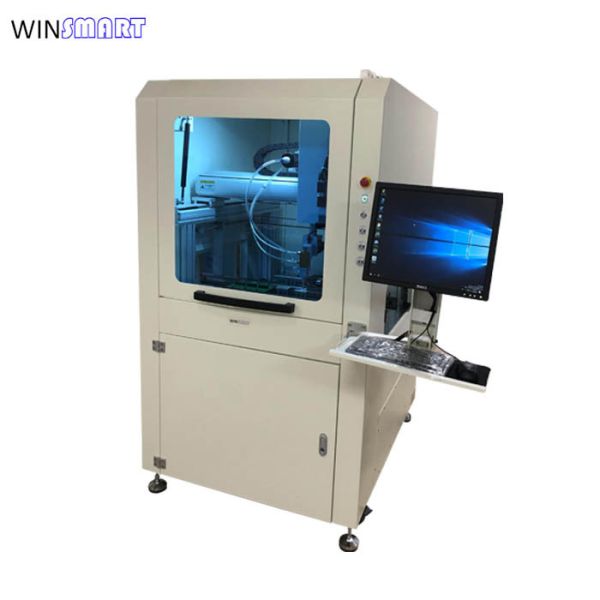

Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Specifications
Brand Name :
Winsmart
Model Number :
SMTID350
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD15000-30000/unit
Payment Terms :
T/T
Supply Ability :
300 units per year
Delivery Time :
14-20 working days
Packaging Details :
plywood case
Safetyfeatures :
Emergency Stop Button, Overload Protection
Application :
Surface Mount Technology (SMT) Glue Dispensing
Operatingspeed :
Up to 1000 points per minute
Workingtemperaturerange :
0°C to 45°C
Powersupply :
AC 220V, 50/60Hz
Type :
Automatic Glue Dispensing Machine
Materialcompatibility :
Epoxy, Silicone, UV Glue, Conductive Adhesives
Dispensingaccuracy :
±0.01 mm
Repeatability :
±0.005 mm
Productname :
SMT Glue Dispensing Machine
Dispensingmethod :
Pneumatic/Servo Motor Controlled
Description
Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
Inline SMT Glue Dispensing Machine Introduction:

An Inline SMT (Surface Mount Technology) Glue Dispensing Machine is an automated system commonly used in electronics manufacturing for dispensing adhesive (typically epoxy) precisely onto PCBs (Printed Circuit Boards) before component placement. This process ensures components are securely held in place during reflow soldering, especially on wave solder lines or when dealing with large or heavy components.

Inline SMT Glue Dispensing Machine Applicable Glue:

Thermal conductive adhesive, SMT bottom filling, component packaging, solder paste, red glue, black glue, semiconductor packaging, crystal cell fixation, etc

Inline SMT Glue Dispensing Machine Features:
  • PC control, Windows operating system, fault sound and light alarm, and menu display CCD visual positioning system.
  • Adopting servo motor and screw drive.
  • Can be equipped with: jet valve or other valves.
  • Automatic constant temperature system of the valve body ensures consistent fluidity.
  • Optional laser height detection system, which can automatically calibrate the Z-axis height after workpiece deformation.
  • Optional workpiece heating system to enhance the fluidity of the coating during bottom filling.
  • Optional precision weighing system, intelligent control and detection of dispensing amount, ensuring consistency of dispensing.
Inline SMT Glue Dispensing Machine Specifications:
Model SMTID350
Working Stroke 400(X)x400(Y)x30(Z)mm
Moving Speed 1000 mm/sec
Feeding Speed 2-5m/min
Control Mode Industrial computer + motion control card
Program Mode Can import SMT machine files or online visual programming
Spindle drive Servo motor + ball screw
Air Pressure ≥0.65MPa
Nozzle cleaning device Vacuum cleaning (optional)
Alarm System Menu+sound and light alarm
Conveyor track High temperature belt & 1-stage shutdown mode
Valve quantity 1
Valve Type Piezoelectric injection valve
Repetitive accuracy ±0.01mm
Material capacity 30CC
Material detection Automatic
communication interface SMEMA
Transmission Direction L-->R or R-->L
Power 220V, 50/60Hz, 2.5KW
Dimension (W*D*H) 790(L)x1600(W)x1600(H)mm
Weight 700kgs

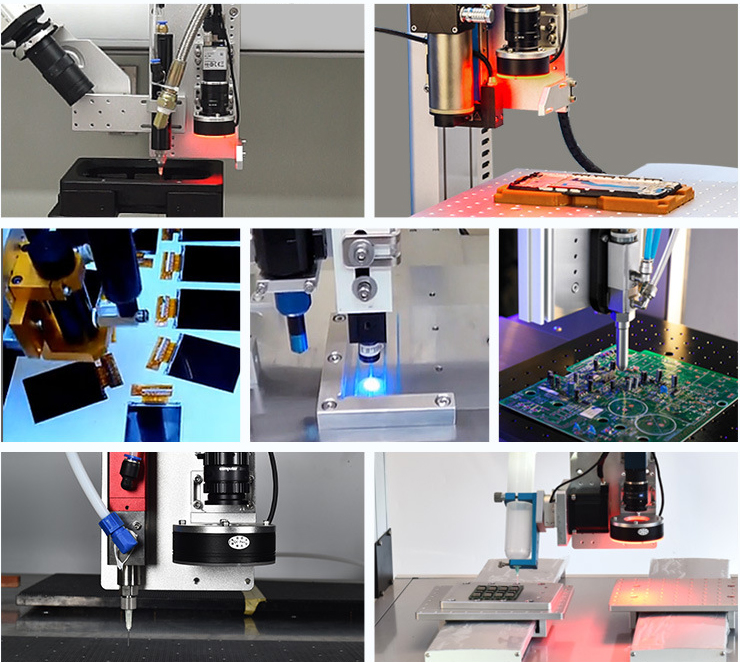

Inline SMT Glue Dispensing Machine Applications:
  • Consumer Electronics – Smartphones, tablets, wearables.
  • Automotive Electronics – ECUs, sensors, infotainment systems.
  • Medical Devices – Compact and critical electronics.
  • Aerospace & Defense – High-reliability electronics.
  • Industrial Control Systems – PLCs, HMIs, and automation controls.

Full Automatic 400x400mm Inline SMT Glue Dispensing Machine

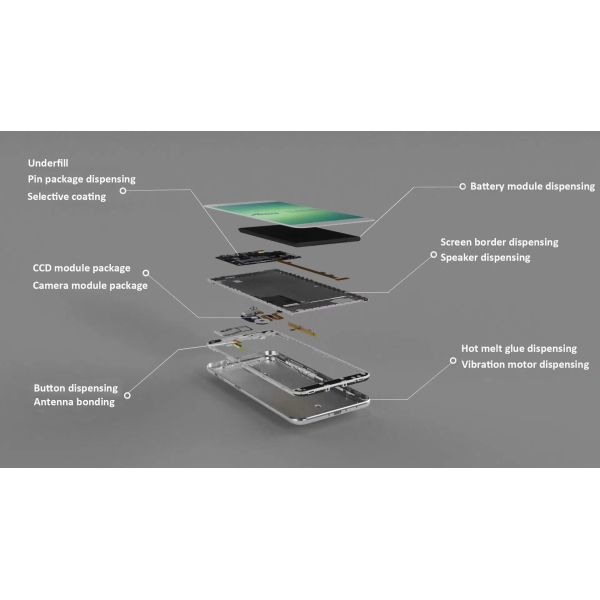

TYPICAL FLUID APPLICATION FOR SMARTPHONES

Full Automatic 400x400mm Inline SMT Glue Dispensing Machine
