SMT Production Line Automatic PCB Loader Machine
SMT Production Line Automatic PCB Loader Machine
SMT Production Line Automatic PCB Loader Machine
SMT Production Line Automatic PCB Loader Machine
Specifications
Brand Name :
Winsmart
Model Number :
SMTPL-250
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD1000-10000/unit
Payment Terms :
T/T
Supply Ability :
1000 units per year
Delivery Time :
14-20 working days
Packaging Details :
plywood case
Temperature Setting Range :
Room temperature – 200°C
Board Thickness :
Min. 0.6mm
Condition :
New
Pcb Transport Direction :
Customize left to right or right to left
Productname :
PCB Handling Machine
Product Flow :
From left to right
Air Source Requirements :
Pressure 0.4-0.6MPa
Conveyor Motor :
1ΦAC220V 90W
Userinterface :
Touchscreen panel with real-time monitoring
Description

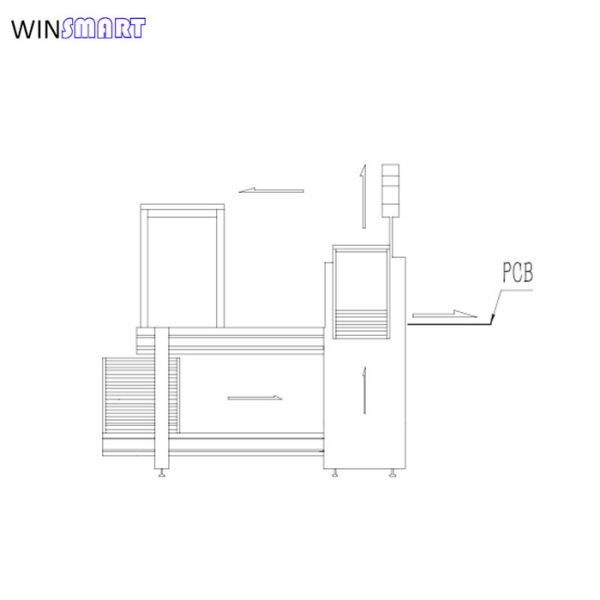

SMT Production Line Automatic PCB Loader Machine
Automatic PCB Loader Description:

This machine is used for automatic PCB feeding in SMT production line, working with PCB magazine racks.

Automatic PCB Loader Features:
  • Solid and stable design
  • Stable and reliable integrated control system
  • Light touch LED membrane switch or touch screen control
  • Top and bottom pneumatic clamps to secure magazine rack
  • Pressure regulated on pusher’s to prevent board damage
  • Machine always fault monitoring
  • SMEMA compatible
Automatic PCB Loader Specifications:
Model No SMTPL-250 SMTPL-330 SMTPL-390 SMTPL-460
PCB Size(mm) (50x50)-(350x250) (50x50)-(455x330) (50x50)-(530x390) (50x50)-(530x460)
Machine Size(mm) 1370x770x1200 1550x850x1200 1750x920x1200 1750x990x1200
Magazine Size(mm) 355x320x563mm 460x400x563 535x460x570 535x530x570
Weight(kg) 130 150 180 200
Automatic PCB Loader Technical Parameters:
Function PCB Loading Time Magazine Change Time Power Supply Air Pressure
It is used for PCB loading Approx 6 seconds Approx 30 seconds 100-230V, 1PH, Max 300VA 4-6Bar
Transport Height Transportation Direction PCB Thickness Magazine Number Step Pitch Select
900±20mm(or customized) L to R or R to L Min 0.6mm Up: 1; Down: 2 10mm, 20mm, 30mm, 40mm
