SMT Production Line Automatic Buffer
SMT Production Line Automatic Buffer
SMT Production Line Automatic Buffer
SMT Production Line Automatic Buffer
Specifications
Brand Name :
Winsmart
Model Number :
SMTB-350
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD1000-10000/unit
Payment Terms :
T/T
Supply Ability :
1000 units per year
Delivery Time :
14-20 working days
Packaging Details :
plywood case
Temperature Setting Range :
Room temperature – 200°C
Automationlevel :
Fully automated with optional manual override
Board Thickness :
Min. 0.6mm
Condition :
New
Pcb Transport Direction :
Customize left to right or right to left
Productname :
PCB Handling Machine
Product Flow :
From left to right
Air Source Requirements :
Pressure 0.4-0.6MPa
Conveyor Motor :
1ΦAC220V 90W
Userinterface :
Touchscreen panel with real-time monitoring
Description

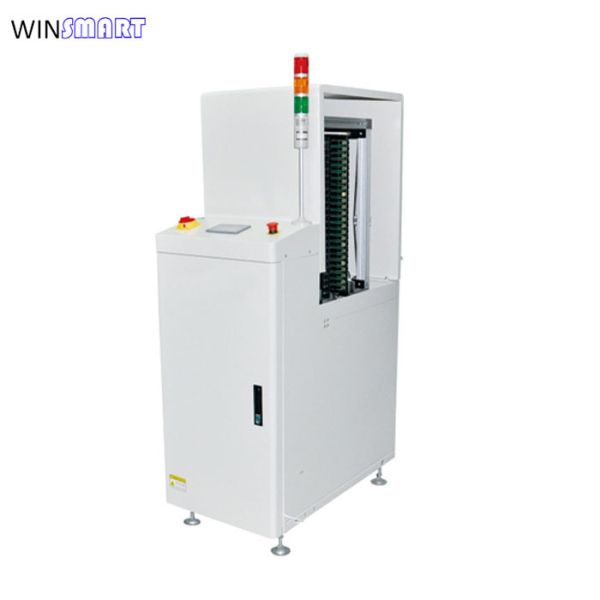

SMT Production Line Automatic Buffer
Automatic Buffer Description:

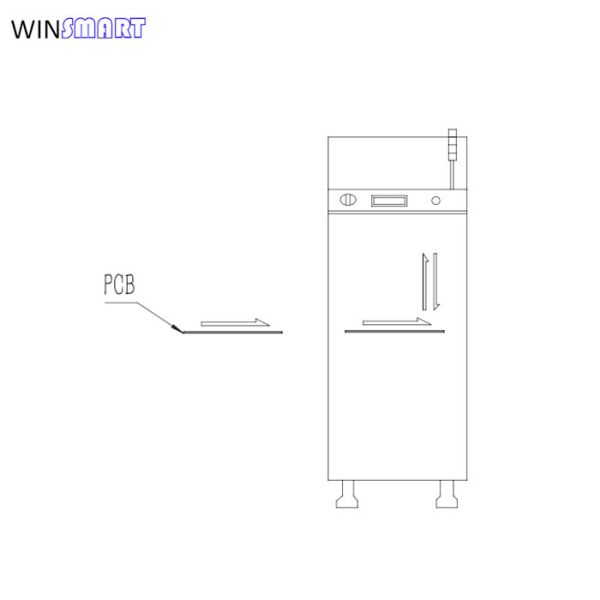

This buffer is used in production line after the furnace, used for storage or pass through.

Automatic Buffer Features:
  • Solid and stable design
  • PLC control system
  • HMI control panel, easier operation
  • FIFO(first in first out), LIFO(last in first out) and pass through function
  • With memory function, control PCB in and out order
  • Use imported bearings for conveying PCB
  • Fast, stable and accurate Retrieval location
  • Smooth and parallel width adjustment(Hand-operated control screw rod adjustment)
  • SMEMA compatible
Automatic Buffer Specifications:
Model No SMTB-350 SMTB-460 SMTB-250D
PCB Size(mm) (50x50)-(460x330) (50x50)-(530x460) (50x50)-(350x250)
Machine Size(mm) 500x80x650 610x1080x1650 500x1550x1650
Weight(kg) 180 220 300
Automatic PCB Flipper Machine Technical Parameters:
Function Max PCB Capacity PCB Loading Time Power Supply
This machine is used in production line after the furnace, used for storage or pass through. 20 pcs Approx 20 seconds 100-240AV, 1ph
Air Pressure Air Consumption Transport Height Transport Direction
4-6 Bar Max 30L/min 900±20mm L→R or R→L
