SMT Production Line Automatic PCB Flipper Machine to Turn PCB 180 Degree
SMT Production Line Automatic PCB Flipper Machine to Turn PCB 180 Degree
SMT Production Line Automatic PCB Flipper Machine to Turn PCB 180 Degree
SMT Production Line Automatic PCB Flipper Machine to Turn PCB 180 Degree
Specifications
Brand Name :
Winsmart
Model Number :
SMTPI-350
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD1000-10000/unit
Payment Terms :
T/T
Supply Ability :
1000 units per year
Delivery Time :
14-20 working days
Packaging Details :
plywood case
Temperature Setting Range :
Room temperature – 200°C
Maximum Load :
PCB/1.5kg
Precision :
±0.1 mm positioning accuracy
Air Supply :
5 kg f/cm²
Automationlevel :
Fully automated with optional manual override
Board Thickness :
Min. 0.6mm
Condition :
New
Description
SMT Production Line Automatic PCB Flipper Machine
Automatic PCB Flipper Machine Description:

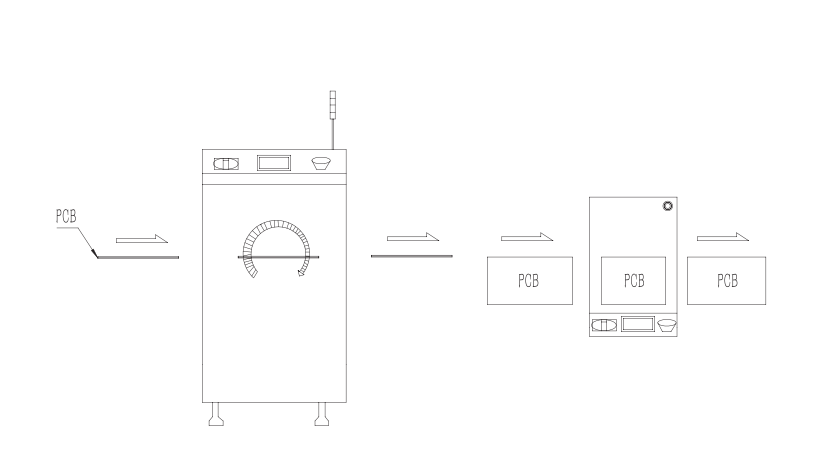

The automatic pcb flipper machine is used to turn over the PCB for double-sided use in SMT and AI production lines, and then send it to the next machine.

SMT Production Line Automatic PCB Flipper Machine to Turn PCB 180 Degree

Automatic PCB Flipper Machine Features:
  • Solid and stable design
  • Stable and reliable integrated control system
  • HMI control panel, easier operation
  • Buffering slow down design more stable and precision
  • The top safety cover can be opened to facilitate the maintenance of machine
  • Smooth and parallel width adjustment
  • Machine always fault monitoring
  • SMEMA compatible
Automatic PCB Flipper Machine Specifications:
Model No SMTPI-350
PCB Size(mm) (50x50)-(480x300)
Machine Size(mm) 600x800x1250
Weight(kg) 130
PCB Thickness 0.6-3mm
Cycle Time Approx 10 seconds
Automatic PCB Flipper Machine Technical Parameters:
Function Cycle Time Air Pressure Power Supply
It is used to invert PCB for next process Approx 15 seconds 4-6 Bar 100-230V, 1PH
Transport Height Transportation Direction PCB Thickness Air Consumption
900±20mm(or customized) From L to R or From R to L Min 0.6mm Max 15L/min
