2 Side Pin Momentary Tactile Switch 50mA Rating Yellow House With Black Button
2 Side Pin Momentary Tactile Switch 50mA Rating Yellow House With Black Button
2 Side Pin Momentary Tactile Switch 50mA Rating Yellow House With Black Button
2 Side Pin Momentary Tactile Switch 50mA Rating Yellow House With Black Button
Specifications
Brand Name :
BZCN
Model Number :
TS-F003
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Color :
Yellow
Rating :
50mA
Voltage :
12V
Dust proof :
Acceptable
Pin :
2 pin
Description

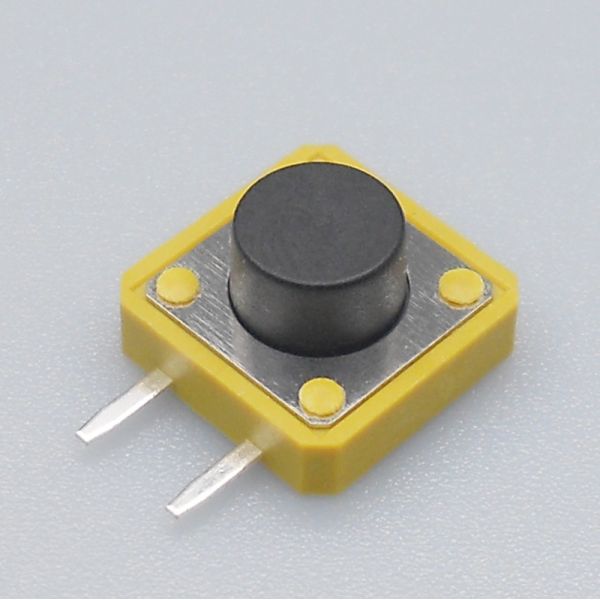

yellow house with black button 2 side pin terminal momentary push button tactile switch

  • Detect type available
  • 4 actuation forces
  • N.O. and N.C.
  • Single throw sigle pole

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-F003
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye STSP
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference.

2 Side Pin Momentary Tactile Switch 50mA Rating Yellow House With Black Button
