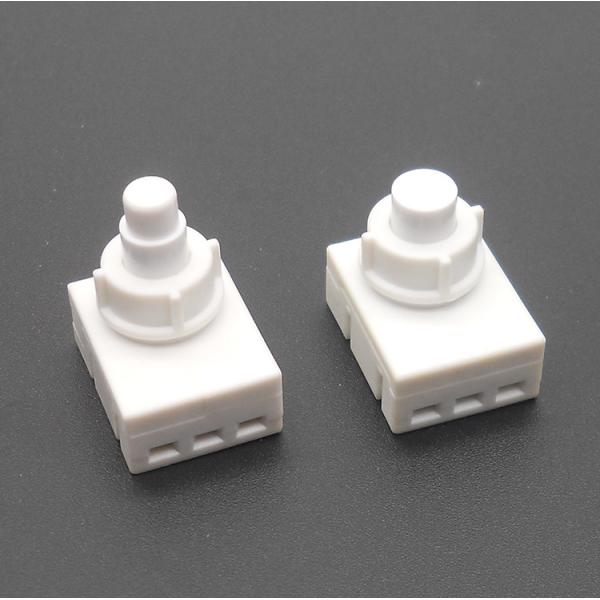

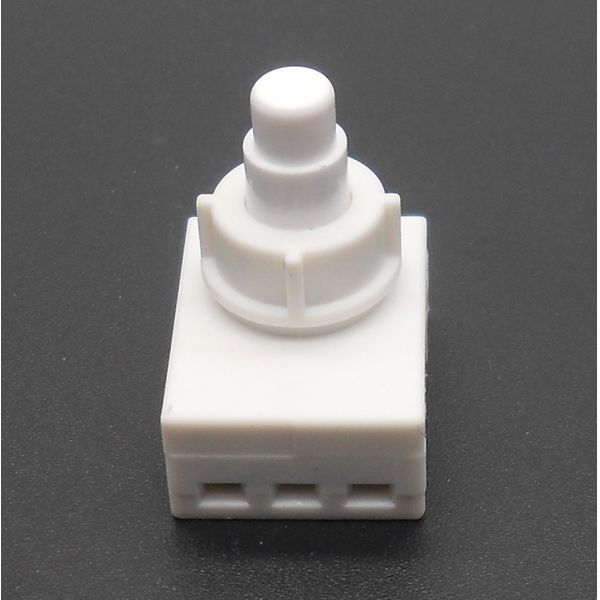

White Momentary Push Button Switch 3 Female Hole Terminal Vertical Type Operation
White Momentary Push Button Switch 3 Female Hole Terminal Vertical Type Operation
White Momentary Push Button Switch 3 Female Hole Terminal Vertical Type Operation
White Momentary Push Button Switch 3 Female Hole Terminal Vertical Type Operation
Specifications
Brand Name :
BZCN
Model Number :
KAN49
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
10 days
Packaging Details :
1000 pcs per bag
Max. Current :
0.5A
Max. Voltage :
14 V
Operation type :
Momentary
Material :
PA66
Color :
White
Operation :
Vertical type
Description

white momentary operation 3 female hole terminal push button switch

500 V AC (50-60 Hz) between open terminals and between the frame and terminal

Feature:

• Long operation life
• Silient push switch
• With waterproof, oil resistance etc.
• RoHS with REACH standard
• Distribute derectly

Spec.

Switch Rating 50mA DC 12V
Operation Travel 0.3±0.1mm
Operation Tpye Momentary
Operation Force 250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds
