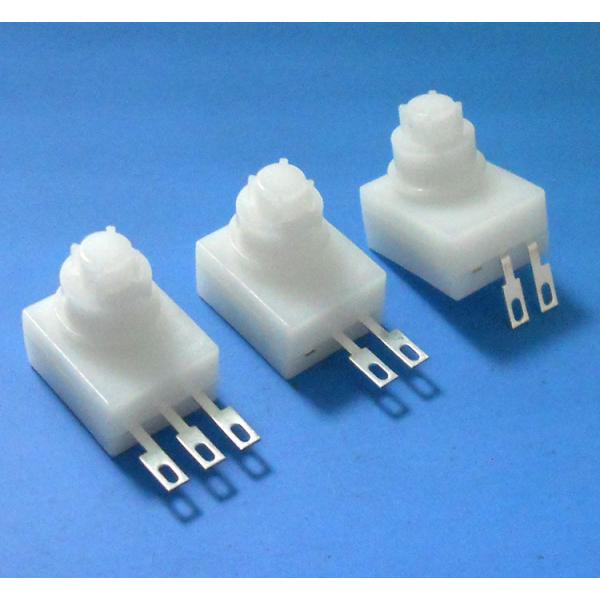

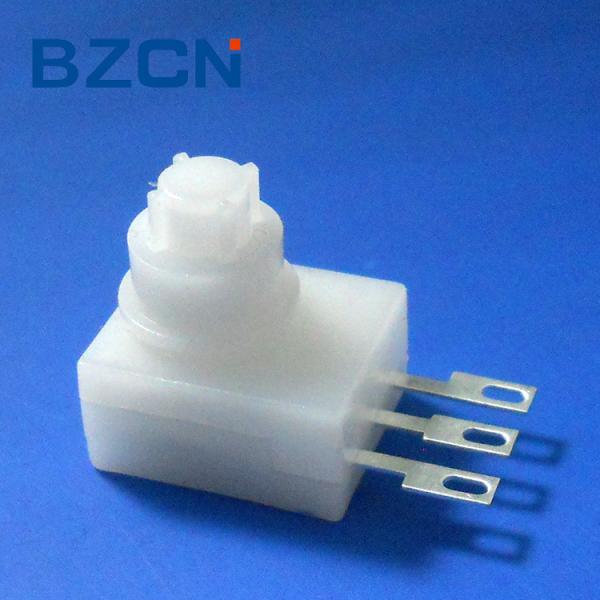

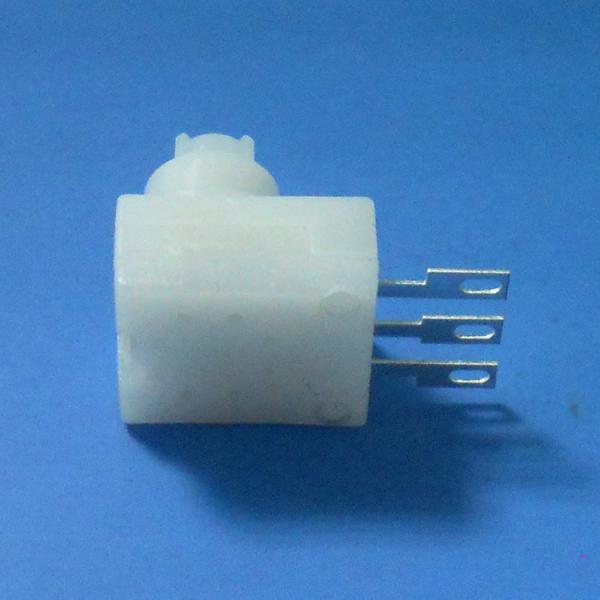

Thru - Hole Momentary Button Switch Copper Terminal With Silver Plate
Thru - Hole Momentary Button Switch Copper Terminal With Silver Plate
Thru - Hole Momentary Button Switch Copper Terminal With Silver Plate
Thru - Hole Momentary Button Switch Copper Terminal With Silver Plate
Specifications
Brand Name :
BZCN
Model Number :
KAN52
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
10 days
Packaging Details :
1000 pcs per bag
Max. Current :
50 mA
Max. Voltage :
14 V
Operation type :
Momentary
Material :
PA66
Color :
White
Pin :
3 pin
Description

white momentary push button switch 2 pin 3 pin copper terminal with silver plate

Miniature Pushbutton Switches from BZ are integrated into innovative audio & visual equipment, telecommunications, industrial and automotive products by some of the world’s leading designers. The PS series are miniature switches available in momentary or latching options, as well as a broad range of style choices.

Feature:

  • Snap-fitting actuator accepts standard caps
  • Sealed against solder & cleaning processes
  • Thru-hole and surface mount models

Spec.

Switch Rating 50mA DC 12V
Operation Travel 0.3±0.1mm
Operation Tpye Latching
Operation Force 250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH

Reference:

Thru - Hole Momentary Button Switch Copper Terminal With Silver Plate
