Reflow Solderable Momentary Push Button Switch Ultra Thin Low Profile
Reflow Solderable Momentary Push Button Switch Ultra Thin Low Profile
Reflow Solderable Momentary Push Button Switch Ultra Thin Low Profile
Reflow Solderable Momentary Push Button Switch Ultra Thin Low Profile
Specifications
Brand Name :
BZCN
Model Number :
TS-D003
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
3 days
Packaging Details :
1000 pcs per bag
Push :
Horizontal
Terminal :
Gull wing
Rating :
50mA
Voltage :
12V
Color :
Green
Operation :
Momentary
Description

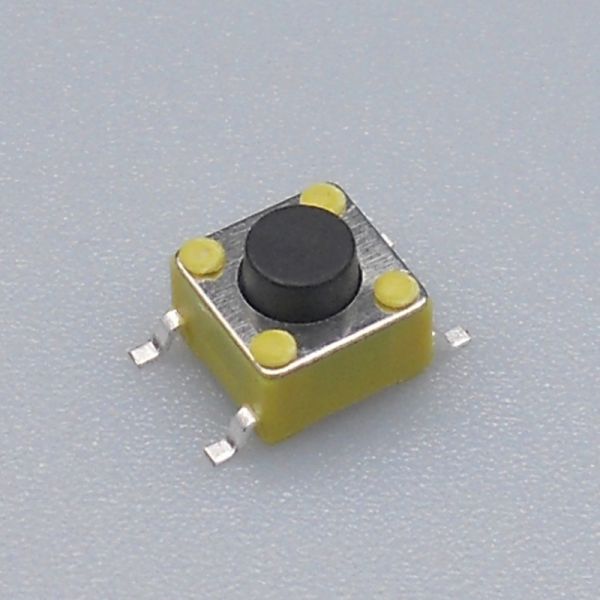

6*6 mm SMD green house with black button momentary push button tactile switch

Micro miniature SMT top actuated switch from BZ has ultra-low current capabilities and is ideal for industrial, medical and automotive applications. It is a long-lasting switch with an excellent tactile feel, even when used in the harshest environments. .M type terminal surface mounted on PCB

Features.

M type terminal

Suitable for high density mounting.

Reflow solderable.

Surface mount.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No. TS-D003
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference.

Reflow Solderable Momentary Push Button Switch Ultra Thin Low Profile
