Side Press Right Angle Push Button Surface Mount Light Weight With Small Volume
Side Press Right Angle Push Button Surface Mount Light Weight With Small Volume
Side Press Right Angle Push Button Surface Mount Light Weight With Small Volume
Side Press Right Angle Push Button Surface Mount Light Weight With Small Volume
Specifications
Brand Name :
BZCN
Model Number :
TS-B015
Certification :
SGS
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 PCS per week
Delivery Time :
5 work days
Packaging Details :
1000 pcs per bag
Material :
PA66
Max. Voltage: :
12 v
Max. Current: :
50 mA
Function :
Momentary
Protection Level :
IP 65
Pin No. :
4 Pins
Description

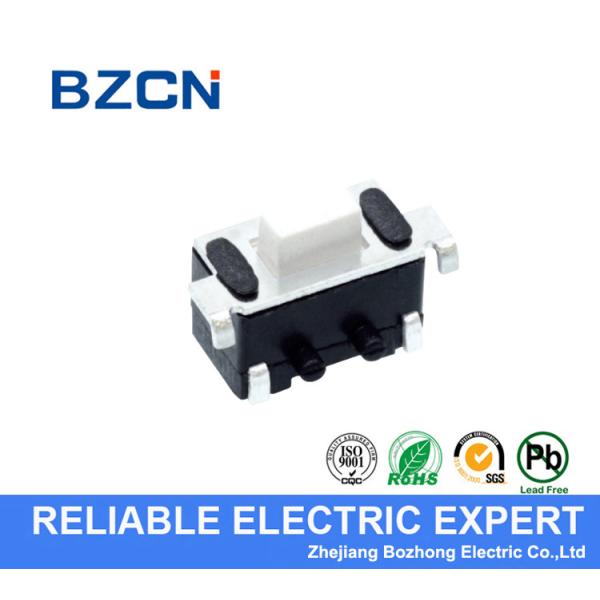

side press Horizontal push metal bracket right angle tactile switch surface mount

SMT right angle tactile switches have a small profile that works great for many consumer electronics applications. There are two gram force options to choose from and this tact switch comes with silver contacts. It has a gull wing termination.

Other applications include audio/visual, telecommunications, medical, computers and more.

Feature:

• With unique technology, can resistance for water / Oil / Pullution etc.
• Multi function
• Light weight with small volume
• Insulation heat resistance, Breaking resistance and resilience

Sidel press with metal holder

Spec.

Model No. TS-B015
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250/400 gf
Operation Life 50,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Templerature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

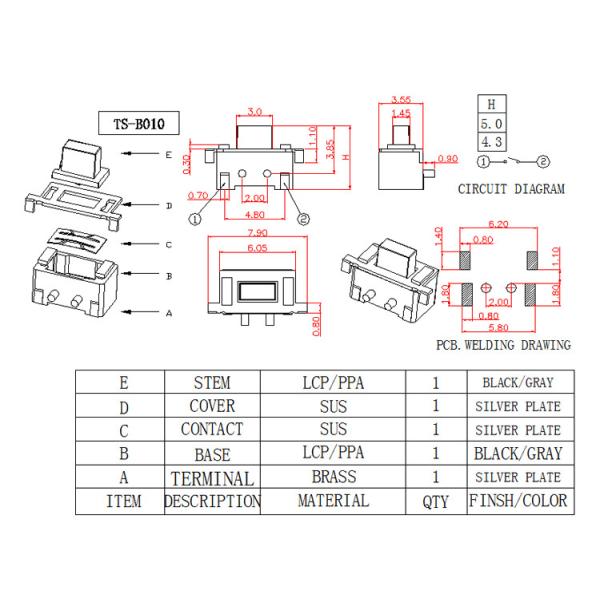

Drawing:
