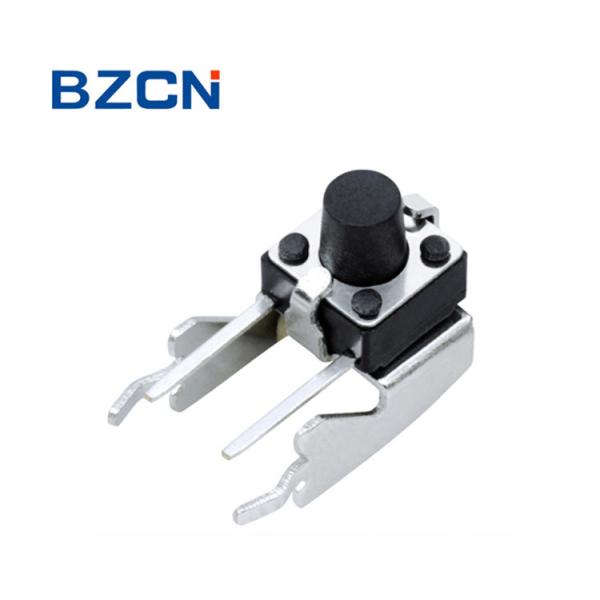

Thru Hole Momentary Tactile Switch 6X6mm Metal Bracket DIP Terminal With 4 Pin
Thru Hole Momentary Tactile Switch 6X6mm Metal Bracket DIP Terminal With 4 Pin
Thru Hole Momentary Tactile Switch 6X6mm Metal Bracket DIP Terminal With 4 Pin
Thru Hole Momentary Tactile Switch 6X6mm Metal Bracket DIP Terminal With 4 Pin
Specifications
Brand Name :
BZCN
Model Number :
TS-D012
Certification :
SGS
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 PCS per week
Delivery Time :
5 work days
Packaging Details :
1000 pcs per bag
Material :
PA66
Max. Voltage: :
12 v
Max. Current: :
50 mA
Function :
Momentary
Protection Level :
IP 65
Pin No. :
4 Pins
Description

6*6 mm metal bracket momentary type tactile switch thru hole switch with 4 pin

Tact switch offers a long operating life of up to 1 million cycles and offers multiple actuator heights. Operating force options are 160 gf, 300 gf, or 500 gf. This tact switch comes in a right angle design and is process sealed.

Applications for this switch include consumer electronics, telecommunications, audio/visual, medical, computer servers, and testing/instrumentation, among others.

Feature:

• With unique technology, can resistance for water / Oil / Pullution etc.
• Multi function
• Light weight with small volume
• Insulation heat resistance, Breaking resistance and resilience

Snap in type with metal holder

Spec.

Model No. TS-D012
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250/400 gf
Operation Life 50,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Templerature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

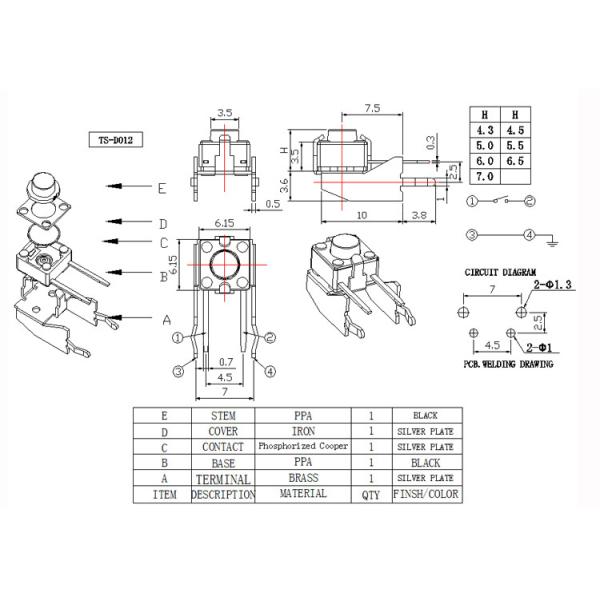

Drawing:
