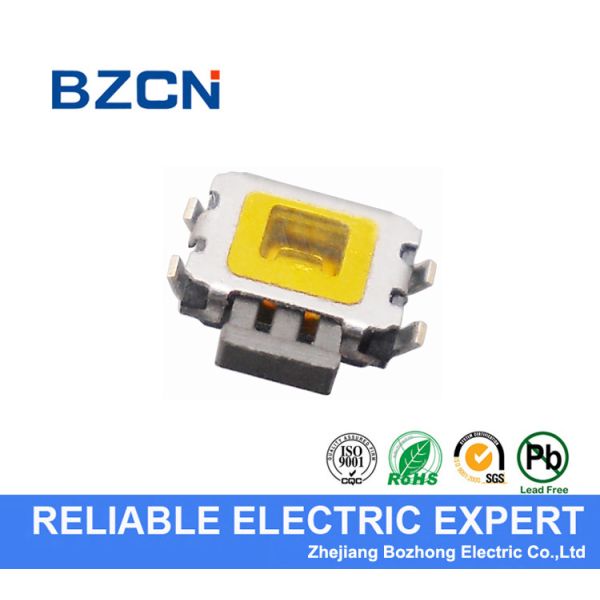

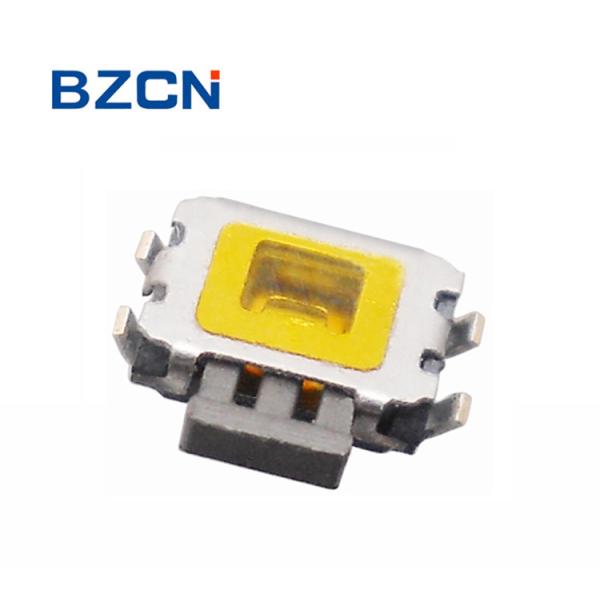

Side / Horizontal Press Right Angle Push Button , Right Angle SMD Tact Switch
Side / Horizontal Press Right Angle Push Button , Right Angle SMD Tact Switch
Side / Horizontal Press Right Angle Push Button , Right Angle SMD Tact Switch
Side / Horizontal Press Right Angle Push Button , Right Angle SMD Tact Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-A018
Certification :
SGS
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 PCS per week
Delivery Time :
5 work days
Packaging Details :
1000 pcs per bag
Material :
PA66
Max. Voltage: :
12 v
Max. Current: :
50 mA
Function :
Momentary
Protection Level :
IP 65
Pin No. :
4 Pins
Description

side / horizontal press 3*3.5 mm tactile switch 4 pin for PCB with dust proof film

Subminiature tact switch is side mount actuated. It is a right angle, SMT mounted tact switch, and it comes in tape and reel packaging for easy insertion into your design. It has gull wing termination. This tact switch is available with boss (locating pin) or without boss.

Applications include telecommunications, consumer electronics, audio/visual, medical, computer servers, and testing/instrumentation.

Feature:

• With unique technology, can resistance for water / Oil / Pullution etc.
• Multi function
• Light weight with small volume
• Insulation heat resistance, Breaking resistance and resilience

Side press with dust proof firm

Spec.

Model No. TS-A018
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250/400 gf
Operation Life 50,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Templerature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

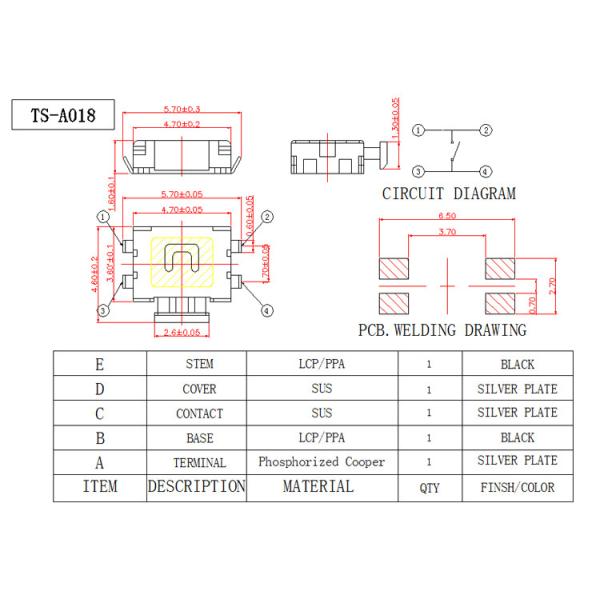

Drawing:
