Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Specifications
Place of Origin :
Guangdong, China
Brand Name :
OEM or neutral (no brand)
Supply Ability :
100000pcs
Certification :
CE, RoHS
Optional built in sensors :
VOC+PM2.5+ CO2+Temperature+Humidity
MOQ :
1
After-sale Service :
Online Technical Support, Other
Design Style :
Contemporary, Modern, Minimalist, Industrial, Mediterranean, European, Asian
Delivery Time :
2-3 weeks
Feature :
Easy Installation
Warranty :
1 Year
Price :
US$74
Payment Terms :
T/T
Model Number :
KF-900K
Product name :
Fresh air fan controller
Description

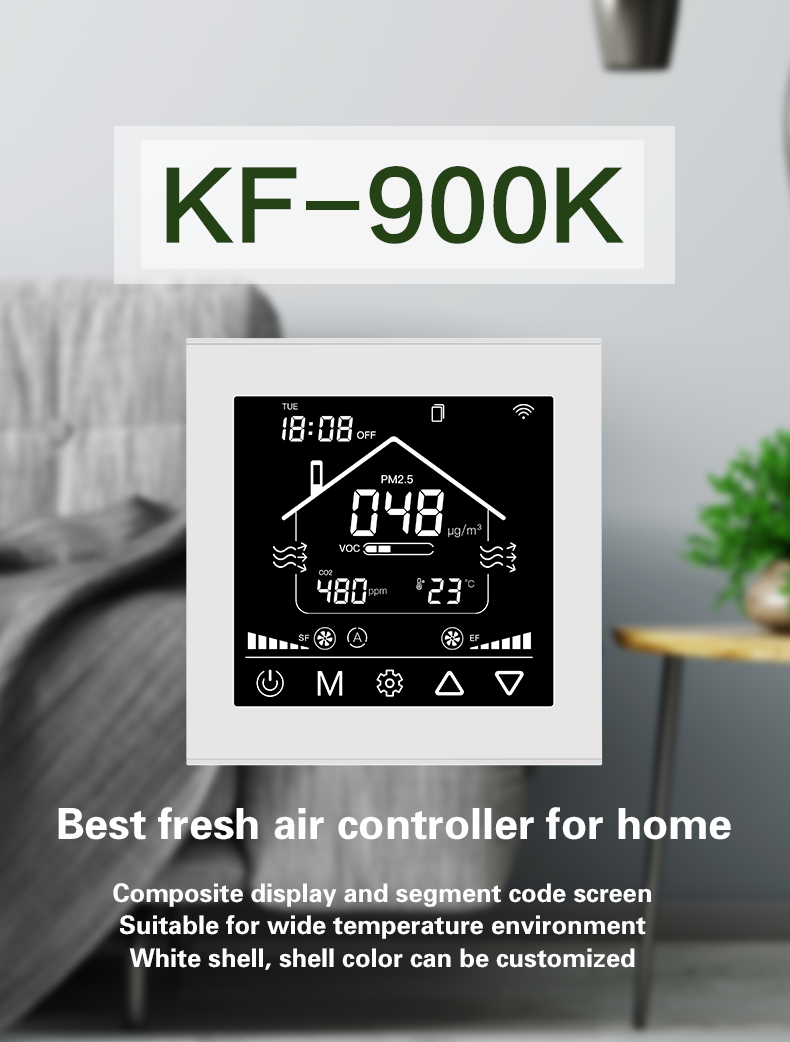

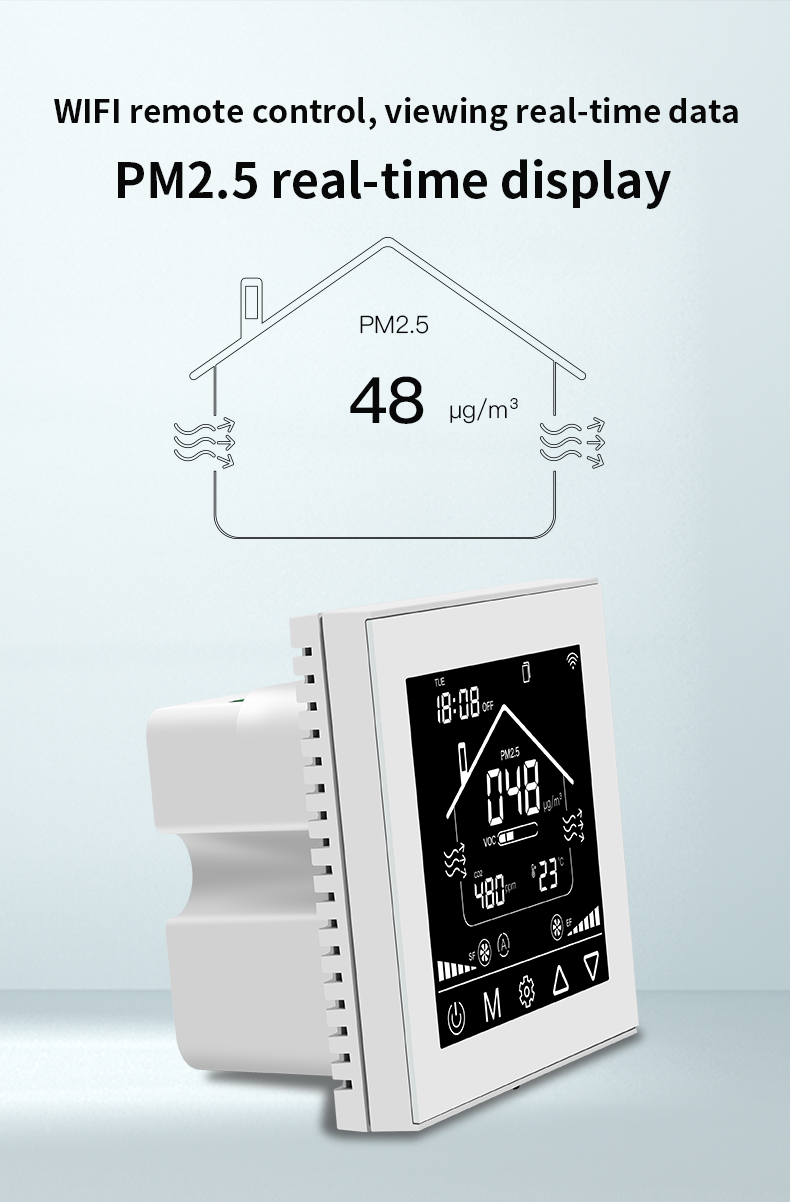

Product Overview:

The KF-900K intelligent controller adopts touch button technology, making it flexible and convenient to operate. The built-in sensor can monitor indoor temperature, humidity, VOC concentration, PM2.5 concentration, and CO2 concentration detection function in real-time.

The controller output signal directly controls the start and speed of the fresh air fan, which can be widely used in residential, commercial, and industrial occasions, and can effectively improve air quality, creating a healthy, comfortable, efficient, environmentally friendly, and energy-saving living and working environment.

Key Features:

  • Smart Ventilation Control
  • Fresh Air System Management
  • Intelligent Airflow Adjustment
  • Real-Time Air Quality Monitoring
  • Automatic Ventilation Scheduling
  • Multi-Speed Fan Control
  • Temperature & Humidity Monitoring
  • CO₂ PM2.5 VOC-Based Ventilation Control
* Dimension:
86 × 86 mm
* Warm-up time:
1 minute
* Fixing hole distance:
60mm (standard)
* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire
* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz
* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 3.0W
* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W
* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC
* Storage humidity:
≤ 60％RH
* Temperature display range:
0℃ —— 50℃
* Life:
≥ 5 years
* PM2.5 display range:
1ug/m3——999ug/m3
* CO2 display range:
350 -- 1999 ppm
Products Images:
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel


Intelligent LCD Fresh Air Controller 3 Speed Ventilation Fan Control Panel
