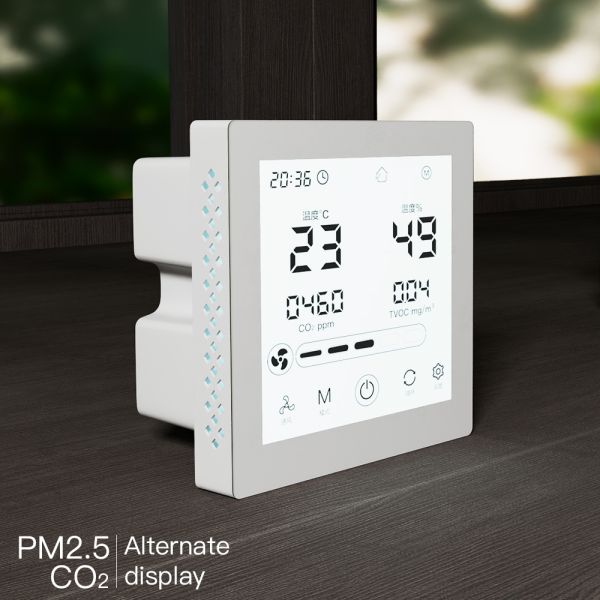

Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Specifications
Rated voltage :
AC110-240V, 50/60Hz
Payment Terms :
T/T
Place of Origin :
China
Operating humidity :
5％RH----90％RH
Brand Name :
OEM or neutral
MOQ :
1pcs
Operating temperature :
-10℃--- +50℃
Packaging Details :
Cartons
Control power :
≤ 200W
Delivery Time :
2-3 weeks
Standby Power :
≤ 2.0W
Supply Ability :
100000pcs
Dimension :
86 × 86 × 40mm
Certification :
CE, RoHS
Price :
US$72/pcs
Model Number :
KF-900J
Description
Product Overview:

The KF-900J Series is an intelligent multifunctional controller designed for fresh air ventilation systems, providing precise air quality monitoring and smart ventilation management for modern residential and commercial environments. Featuring a standard 86-type wall-mounted installation design, it offers a sleek and convenient solution for smart indoor air control.

The controller supports independent control of two EC 220V fans and integrates RS485 communication for seamless connection with smart home systems and building automation platforms. Built-in sensors monitor key indoor environmental parameters, including temperature, humidity, PM2.5, PM10, and TVOC, with an optional high-precision CO₂ sensor available for enhanced air quality monitoring.

Product Specifications:
Dimension: 86 × 86 × 40mm Warm-up time: 1 minute
Fixing hole distance: 60mm (standard) Response time: ≤ 10 seconds
Wiring terminal: Max 2.5 mm2 wire Recovery time: ≤ 30 seconds
Rated voltage: AC110-240V, 50/60Hz Operating temperature: -10℃--- +50℃
Standby Power: ≤ 2.0W Operating humidity: 5％RH——90％RH
Control power: ≤ 200W Storage temperature: -10℃--- +60℃
Suitable for fans: AC/EC/DC Storage humidity: ≤ 60％RH
Temperature display range: 0℃ —— 50℃ Life: ≥ 5 years
PM2.5 display range: 1ug/m3——999ug/m3
Product Images:
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
Smart Home Compatible Fresh Air Controller with Built-in CO2 PM2.5 Sensors and Wall-mounted Installation
