LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
Specifications
Standby Power :
≤ 2.0W
Control power :
≤ 200W
Brand Name :
OEM or neutral (no brand)
Supply Ability :
100000pcs
Temperature display range :
0℃ ---- 50℃
MOQ :
1
Delivery Time :
2-3 weeks
Fixing hole distance :
60mm (standard)
Rated voltage :
AC110-240V, 50/60Hz
Price :
US$73
Place of Origin :
Guangdong, China
Model Number :
KF-900M
Payment Terms :
T/T
Dimension :
86 × 86 × 53 mm
Description
Product Overview:

KF-900M LCD digital display intelligent fresh air controller can choose manual control or timing control of the operation of the fresh air fan. The controller output signal directly controls the start and speed of the fresh air fan, which can be widely used in residential, commercial, and industrial occasions, and can effectively improve air quality, creating a healthy, comfortable, efficient, environmentally friendly, and energy-saving living and working environment.

Key Features:
  • LCD Digital Display Interface
    Clear and intuitive screen showing real-time system status, fan speed, mode, and timer settings.
  • Manual & Timer Control Modes
    Supports both manual operation and timing schedule control, providing flexible ventilation management.
  • Direct Fan Speed Control
    Output signal directly controls the start/stop and speed adjustment of fresh air fan, ensuring precise airflow regulation.
  • Multiple Operation Modes
    Includes automatic mode, manual mode, timing mode, and sleep mode for different usage scenarios.
Product Specifications:
* Dimension: 86 × 86 × 53 mm * Temperature display range: 0℃ —— 50℃
* Fixing hole distance: 60mm (standard) * Operating temperature: -10℃--- +50℃
* Wiring terminal: Max 2.5 mm2 wire * Operating humidity: 5％RH——90％RH
* Rated voltage: AC110-240V, 50/60Hz * Storage temperature: -10℃--- +60℃
* Standby Power: ≤ 2.0W * Storage humidity: ≤ 60％RH
* Control power: ≤ 200W * Life: ≥ 5 years
* Suitable for fans: AC/EC/DC

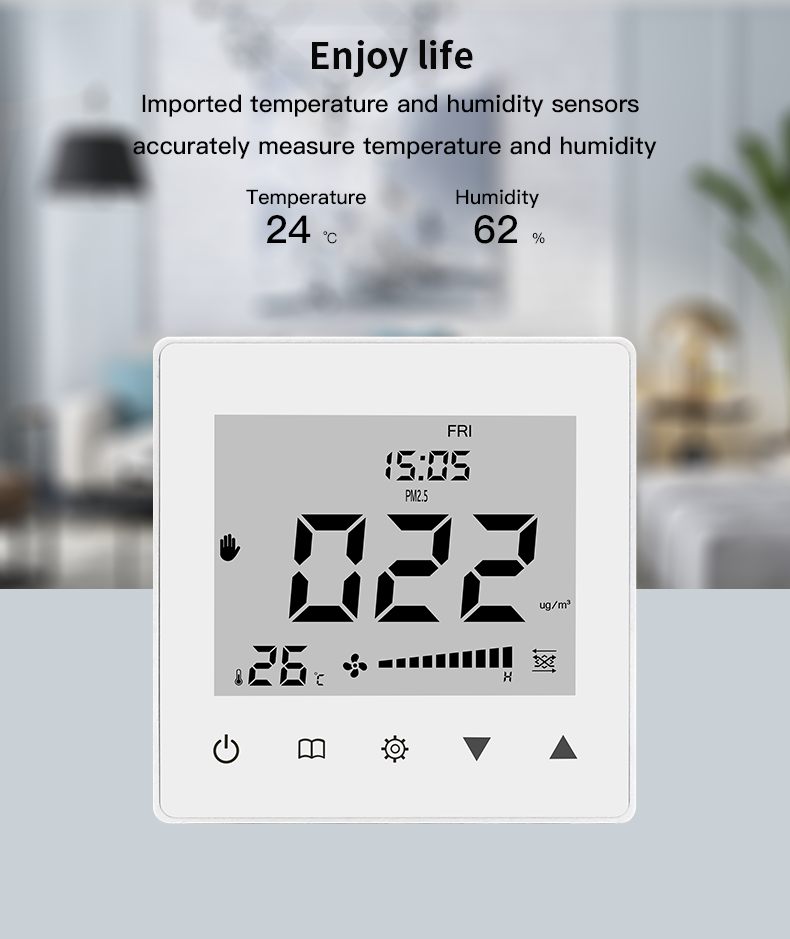

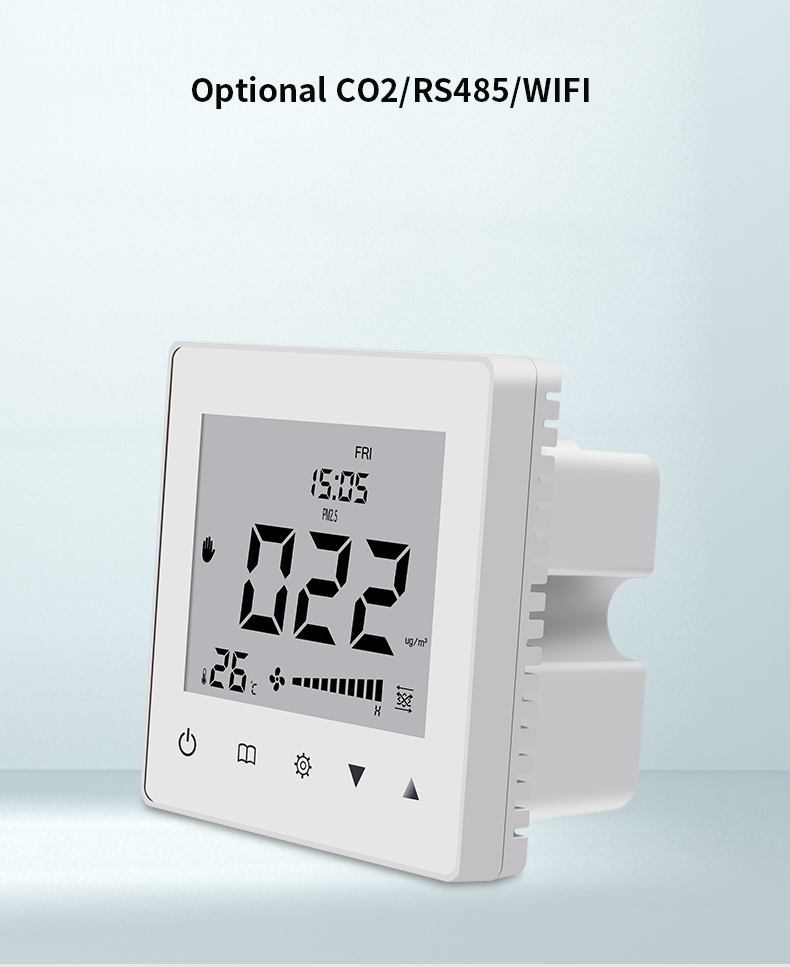

Product Images:
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
Wiring Diagram:
LCD Display Digital Ventilation Controller Fresh Air Ventilation System Controller
