Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Specifications
Payment Terms :
T/T
Fixing hole distance :
60mm (standard)
Place of Origin :
China
Model Number :
KF-900B
Certification :
CE, RoHS
Dimension :
86 × 86 mm
MOQ :
1
Price :
US$79
Supply Ability :
100000pcs
Rated voltage :
AC110-240V, 50/60Hz
Delivery Time :
2-3 weeks
Standby Power :
≤ 2.0W
Brand Name :
OEM or neutral (no brand)
Control power :
≤ 200W
Operating temperature :
-10℃--- +50℃
Description
Product Overview:

Fresh Air intelligent controller (KF-900B) adopts touch key technology, which is flexible and convenient to operate.

The output signal of the controller directly controls the startup and speed of fan.

It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality, create a healthy, comfortable, energy-efficient living and working environment.

Key Features:
  • Touch Key Control Technology

    Smooth and intuitive touch button operation for easy user control.

  • Direct Fan Control Output

    Directly controls start/stop and speed regulation of the fresh air fan.

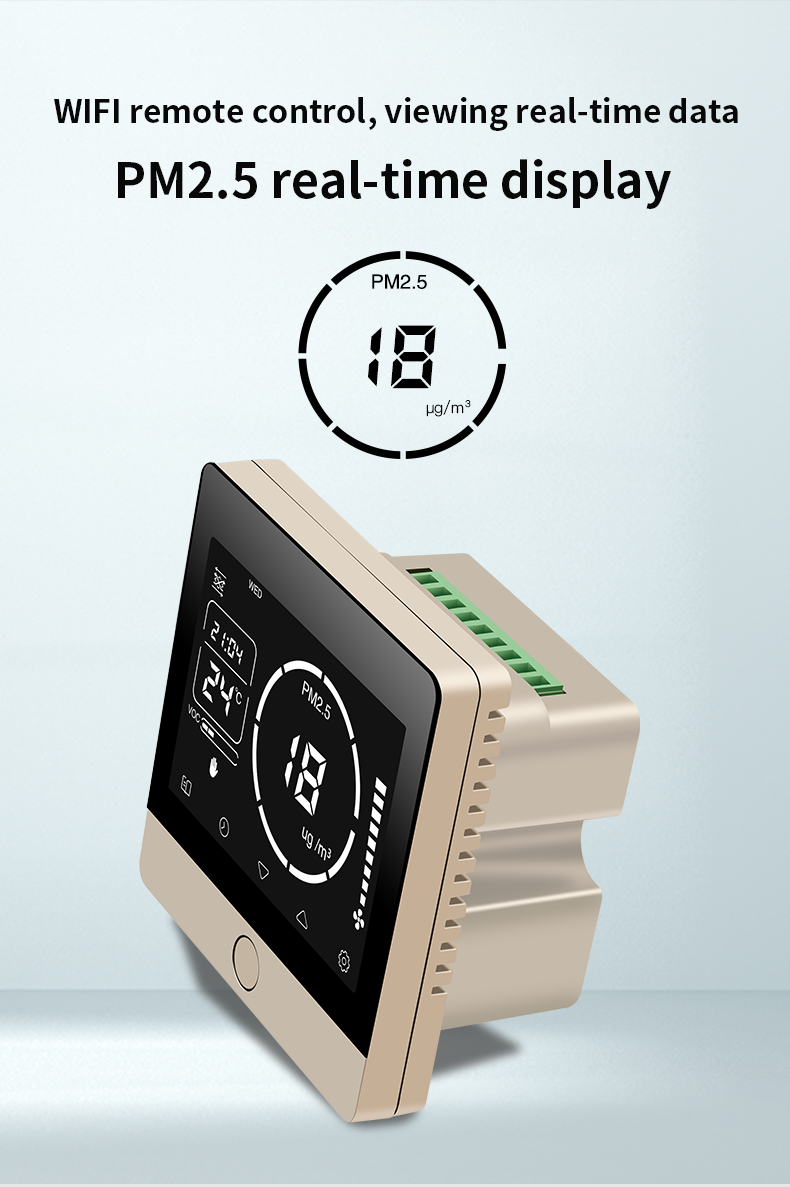

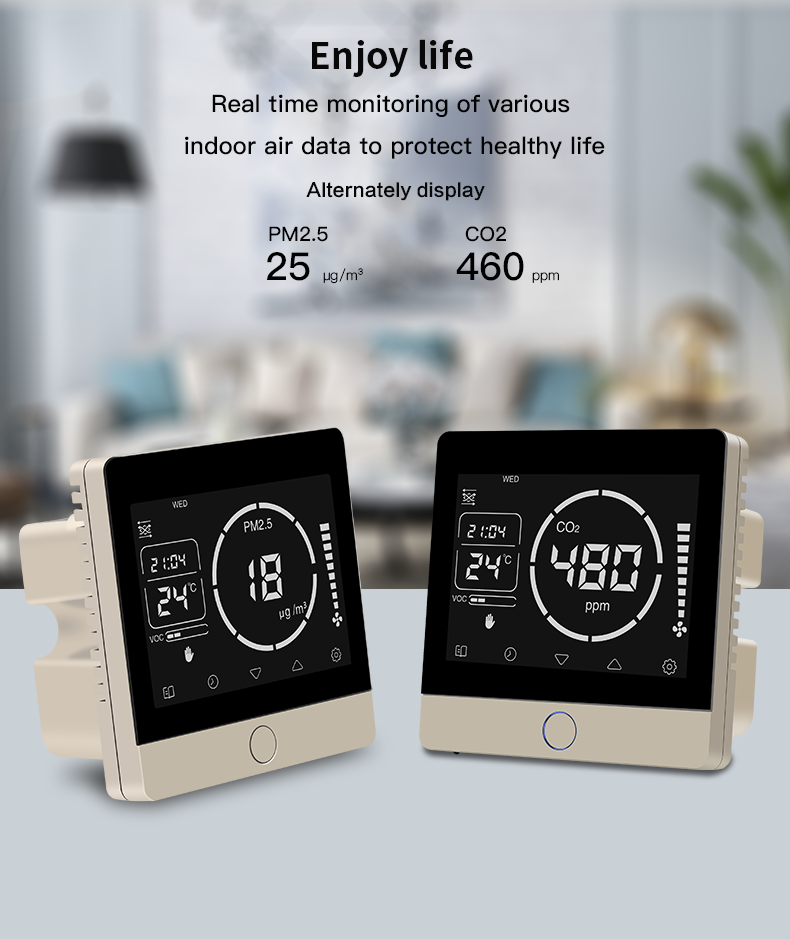

  • Real-Time Air Quality Monitoring (Optional)

    Supports display of PM2.5 and CO₂ levels for indoor air quality awareness.

  • Multi-Mode Operation

    Supports automatic mode, manual mode, timing mode, and sleep mode for flexible usage.

  • Smart Ventilation Management

    Optimizes fresh air operation to improve indoor air quality and comfort.

Product Specifications:
* Dimension:
86 × 86 mm
* Temperature display range:
0℃ —— 50℃
* Fixing hole distance:
60mm (standard)
* Operating temperature:
-10℃--- +50℃
* Wiring terminal:
Max 2.5 mm2 wire
* Operating humidity:
5％RH——90％RH
* Rated voltage:
AC110-240V, 50/60Hz
* Storage temperature:
-10℃--- +60℃
* Standby Power:
≤ 2.0W
* Storage humidity:
≤ 60％RH
* Control power:
≤ 200W
* Life:
≥ 5 years
* Suitable for fans:
AC/EC/DC
Product Images:
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
Wiring Diagram:
Smart Digital Ventilation Controller With Touch Key Control Real Time Air Quality Monitoring
