HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V
Specifications
Brand Name :
SIXWGH
Model Number :
WHZK-001(4inch)
Certification :
CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
100
Price :
USD+62-75+piece
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
10000+piecex+10days
Delivery Time :
5-10days
Packaging Details :
36*25*20cm/12pcs/3.8kg
Product Type :
In-Wall Central Control Panel
Processor :
Quad-core ARM Cortex-A35
Operating System :
Linux IoT OS
Gateway Protocol :
ZigBee 3.0 / Bluetooth / WiFi
Security Feature :
Doorbell/Camera Video Linkage
Mic Array :
Dual Mics with Noise Reduction
Device Support :
100+ Sub-devices (Stable)
Input Power :
100-240VAC 50/60Hz

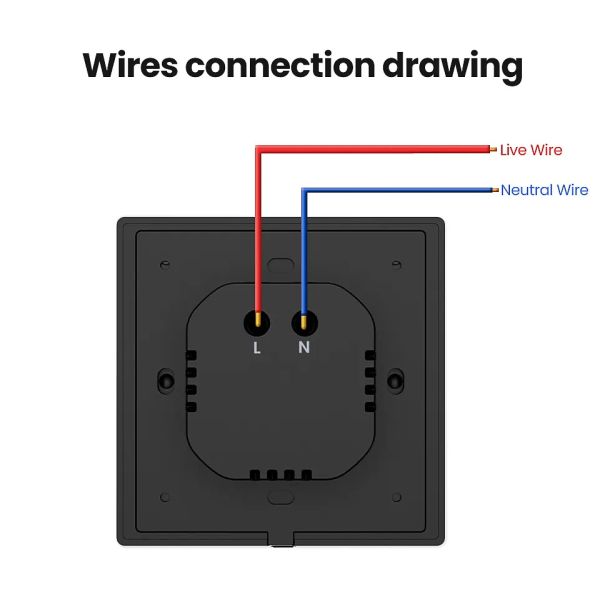

Wired Terminals :
Live + Neutral + RS485
Description

Core Specs - B2B Focus

Feature Specification
Security Role Central Security Hub & Monitor
Intercom Video Linkage with Doorbell/Camera

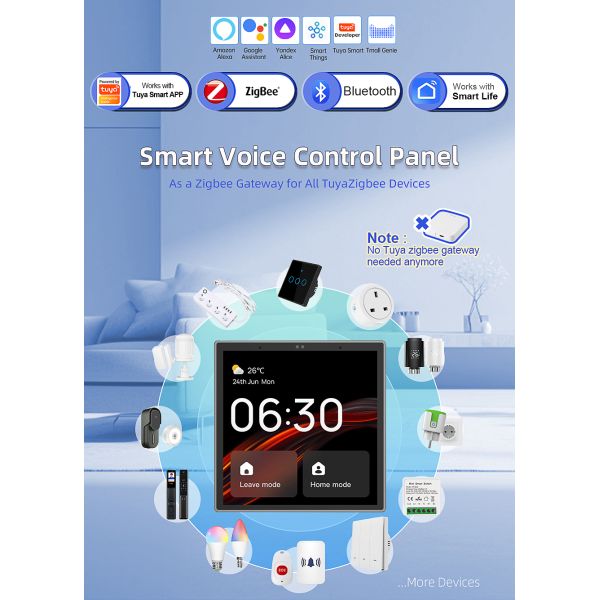

Built-in Gateway ZigBee 3.0 + Bluetooth + WiFi
CPU / OS Rockchip RK3308 / Linux OS 4.0
Voice Service Alexa Built-in (Dual Mic Array)
Device Capacity Control 100+ Sub-devices

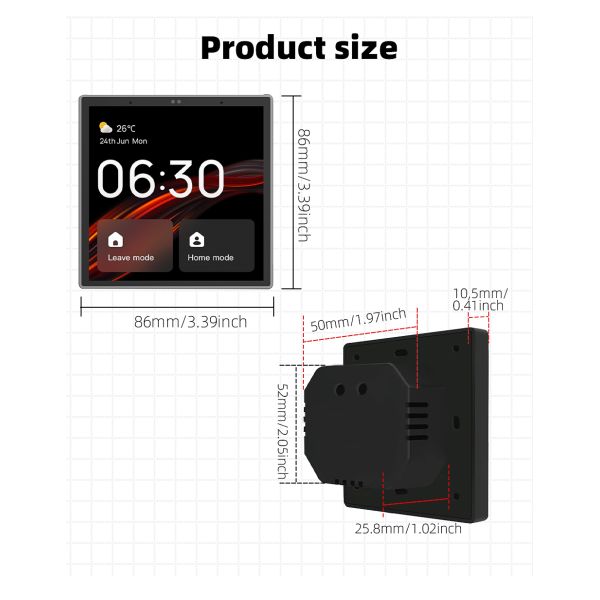

Installation Fits Standard Wall Boxes (Neutral Wire)

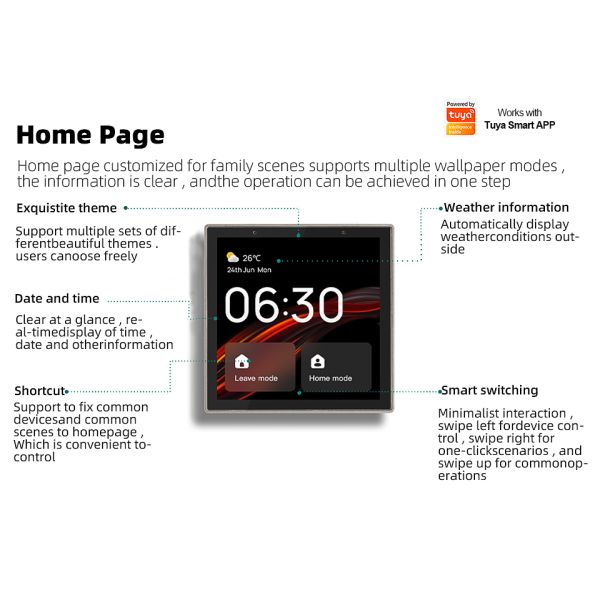

Screen 4" HD Multi-touch (480*480)

Description - Business Pitch
Revolutionize your smart home projects with this Central Security Hub. It replaces the traditional ZigBee gateway, alarm keypad, and indoor intercom monitor. Featuring Multimedia Interconnection, it automatically displays live video when a visitor presses the smart doorbell, providing a fixed security station for the home. Powered by a robust Linux OS and ZigBee 3.0, it ensures stable local execution of security scenes (e.g., "Motion Detected -> Sirens On") even without internet.

HD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240VHD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240VHD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240VHD Multi Touch Smart Home Control Panel ZigBee Touch Screen 4 Inch 240V

FAQ (Security & Tech Focus)

  • Q: How does this panel function as a security device?

    • A: It acts as a dedicated Indoor Security Monitor. It links with Tuya smart doorbells/cameras to show live feeds and supports two-way audio, so users can verify visitors without a phone.

  • Q: Can it replace a standalone ZigBee Gateway?

    • A: Yes, it has a built-in ZigBee 3.0 Gateway module. You don't need to buy extra hubs to connect sensors, locks, or lights, saving hardware costs for your projects.

  • Q: Does it support SOS for elderly care?

    • A: Yes. It pairs with SOS buttons. If pressed, the panel triggers an alarm and notifies family members instantly, making it ideal for elderly housing projects.

  • Q: What happens if the WiFi is down?

    • A: As a ZigBee gateway, local security automations (like Door Sensor -> Alarm) continue to function locally, ensuring protection isn't compromised by network failures.

  • Q: Is the voice control responsive?

    • A: It features a Dual Microphone Array with symmetric noise reduction and Alexa Built-in, ensuring commands like "Alexa, show me the front door" are executed instantly.
