IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG2206FI
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Packaging Details :
1pc in box, 1pc Warranty Card in box
Certification :
CE, ROHS, FCC, UKCA
Product Name :
4GE 2SFP Industrial Easy Smart Gigabit Switch
Power Supply :
12~ 57 V DC/ 2.5A(MAX)
Color :
Black
Switching Capacity :
12Gbps
Safety Class :
IP30
Transmission Rate :
10，100，1000Mbps
Description

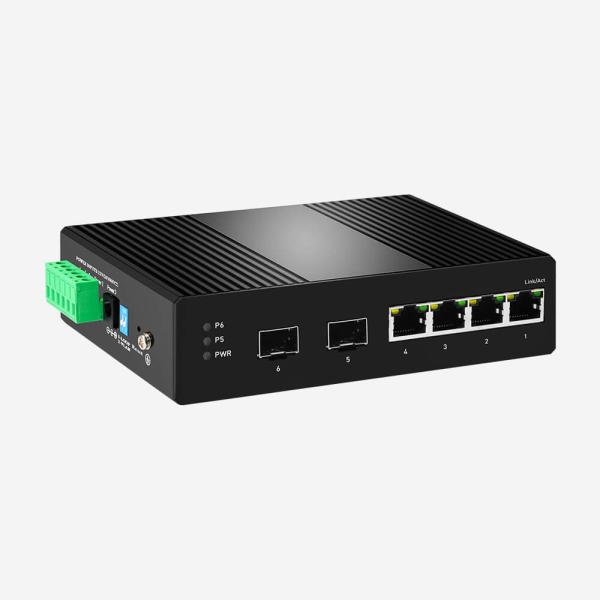

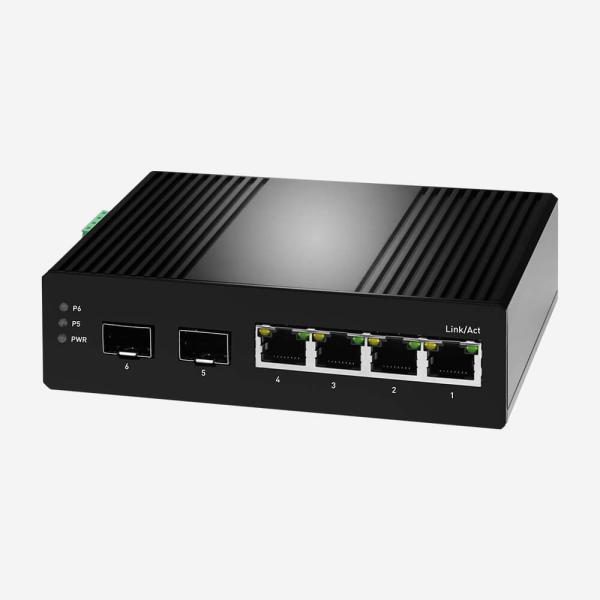

4 RJ45 Ports 2 SFP Fiber Ports Industrial Easy Smart Gigabit Ethernet Switch Aluminum Alloy Shell SR-SHG2206FI

2G SFP Slots And 4GE Ports Industrial Easy Smart Gigabit Ethernet Switch

Description Of The 24vdc Ethernet Switch:

SR-SHG2206FI series are self-developed Gigabit Industrial Ethernet fiber switches, designed to meet the needs of industrial fields and systems, and can operate stably for a long time in harsh usage environments. It has 4 Gigabit Ethernet adaptive electrical ports, 2 Gigabit SFP fiber ports, and all ports support full wire-speed forwarding.


SR-SHG2206FI industrial Ethernet switch has excellent adaptability to industrial environment (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.), IP30 protection level, two redundant power supplies, low-power fanless cooling technology, MTBF up to 10 years, 3-year warranty, simple management model, plug-and-play, no configuration, easy to use. Suitable for intelligent transportation, rail transportation, power industry, mining, oil, shipping, metallurgy and green energy construction and other industrial scenarios to set up a cost-effective, stable and reliable communication network.

Features Of The industrial Gigabit Switch:

  • Provide 4 10,100,1000Mbps RJ45 ports, 2 10/100/1000Mbps SFP fiber ports.
  • Support IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.
  • Support MAC address auto-learning, auto-aging and aging time setting. Support static MAC address, filtered MAC address, dynamic MAC binding and other address table management functions.
  • Supports IGMP listening, static aggregation, port mirroring, and STP/RSTP spanning tree protocols.
  • Support 32个 VLANs (4K VLAN IDs), end-mouth VLANs, 802.1Q VLANs, and Port-based/802.1p/DSCP priority.

Product Spectification Of The Ethernet Switch 24v:

SR-SHG2206FI
Power Supply 12~ 57 V DC/ 2.5A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports 4×10/100/1000Mbps RJ45 ports, 2×SFP ports
Indicators 4 status indicators Link/ACT, 2 SFP fiber port indicators (Link), PWR
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 136*108*38.5 mm
Switching Capacity 12Gbps
Packet Forwarding Rate 8.928Mpps
Installation DIN rail/wall mount
DIP switch

Support one-click ring network configuration, one-click VLAN

isolation configuration
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS		 IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5

Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
- Supports 128 groups
• Link Aggregation
- Supports static link aggregation
- Supports 8 groups of aggregation, up to 4 ports per group
• Port Mirroring
- One-to-one
- Many-to-Many
• Support port isolation, port grouping
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• Supports Port VLAN and 802.1Q VLAN
• Supports Port-based/802.1p/DSCP priority
Quality of Service
(QoS)		 • Support 4 priority queues
• Port Speed Limit
• Storm Control
Management • Support WEB network management, IP:192.168.1.199
User name and password is:admin
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS

Product Application Of The Managed Switch Ethernet:

IP30 6 Ports Industrial Gigabit Easy Smart Switch 10 100 1000Mbps
