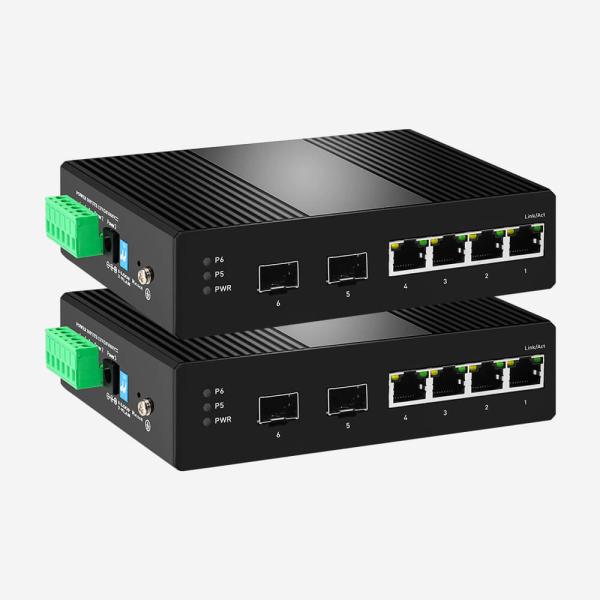

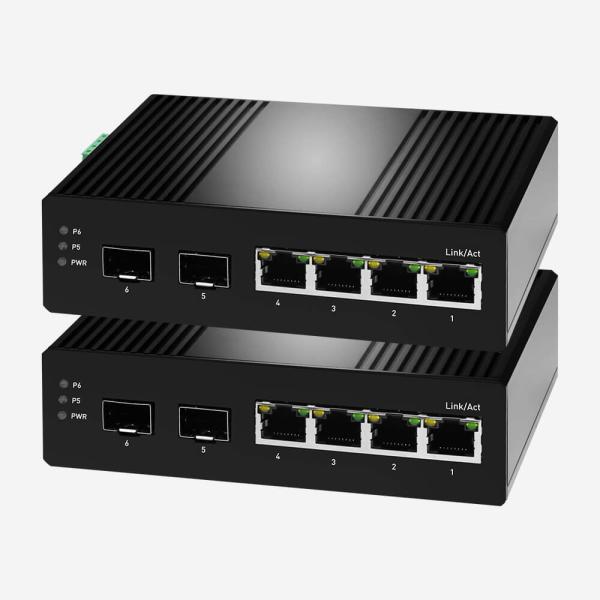

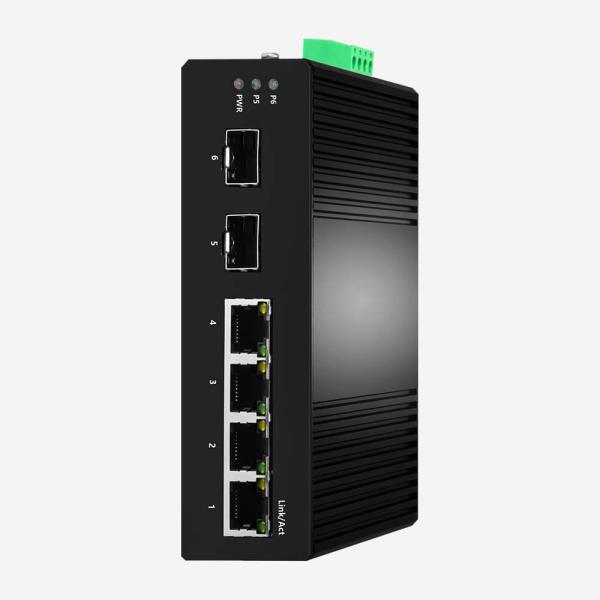

Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG2206FI
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
4GE 2SFP Industrial Easy Smart Gigabit Switch
Power Supply :
12~ 57 V DC/ 2.5A(MAX)
Color :
Black
Switching Capacity :
12Gbps
SFP Fiber Port :
2pcs
Material :
Aluminum alloy
Description

48V 4 RJ45 Ports 2 SFP Fiber Ports Industrial Easy Smart Gigabit Ethernet Switch SR-SHG2206FI

2G SFP Slots And 4GE Ports Industrial Easy Smart Gigabit Ethernet Switch

Description Of The Din Rail Ethernet Switch:

SR-SHG2206FI is a Gigabit industrial Ethernet fiber switch equipped with 4 Gigabit Ethernet 10/100/1000Mbps adaptive electrical ports and 2 Gigabit SFP fiber ports, all of which support full wire-speed forwarding. Designed to meet the needs of industrial fields and systems, it is suitable for industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction. It has built-in lightning protection, meets IP30 protection level, and works in a wide temperature range of -40 ℃ to +75 ℃, which can adapt to various harsh environments. It supports a variety of network management functions, including STP / RSTP, Layer 2 Ethernet IGMP, VLAN, QoS, security, bandwidth control, port mirroring, cable diagnostics and Green, Ethernet.

Features Of The Din Rail Mounted Switch:

  • Provides 4 10/100/1000Mbps RJ45 ports, 2 10/100/1000Mbps SFP fiber ports.
  • Support IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.
  • Supports IGMP listening, static aggregation, port mirroring, and STP/RSTP spanning tree protocols.
  • Supports 32个 VLANs (4K VLAN IDs), end-mouth VLANs, 802.1Q VLANs, and Port-based/802.1p/DSCP priority.
  • Supports port-based ingress/egress bandwidth control.
  • Supports port aggregation function, port mirroring and traffic statistics function.
  • Supports for QoS and multicast functions.

Product Spectification Of The Din Rail Network Switch:

SR-SHG2206FI
Power Supply 12~ 57 V DC/ 2.5A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports 4×10/100/1000Mbps RJ45 ports, 2×SFP ports
Indicators 4 status indicators Link/ACT, 2 SFP fiber port indicators (Link), PWR
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 135*99.7*38 mm
Switching Capacity 12Gbps
Packet Forwarding Rate 8.928Mpps

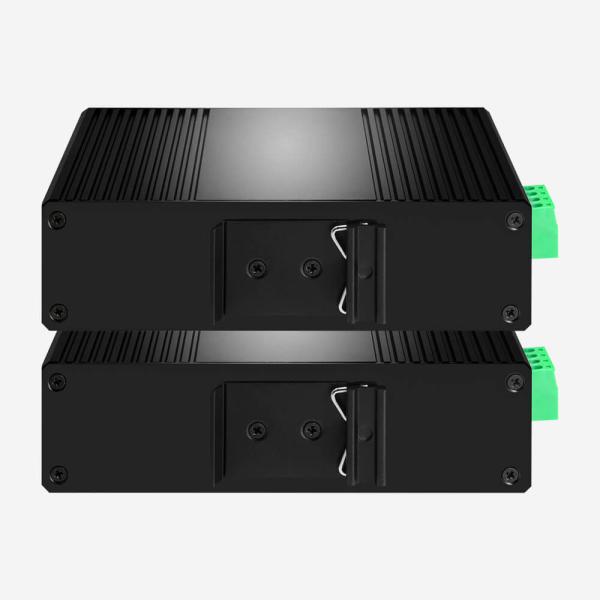

Installation DIN rail/wall mount
DIP switch

Support one-click ring network configuration, one-click VLAN

isolation configuration
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS		 IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5

Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
- Supports 128 groups
• Link Aggregation
- Supports static link aggregation
- Supports 8 groups of aggregation, up to 4 ports per group
• Port Mirroring
- One-to-one
- Many-to-Many
• Support port isolation, port grouping
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• Supports Port VLAN and 802.1Q VLAN
• Supports Port-based/802.1p/DSCP priority
Quality of Service
(QoS)		 • Support 4 priority queues
• Port Speed Limit
• Storm Control
Management • Support WEB network management, IP:192.168.1.199
User name and password is:admin
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS

Product Application Of The 24v Ethernet Switch:

Aluminum Alloy Case 48V Ethernet Industrial Smart Switch 4 RJ45 Ports 2 SFP Fiber Ports
