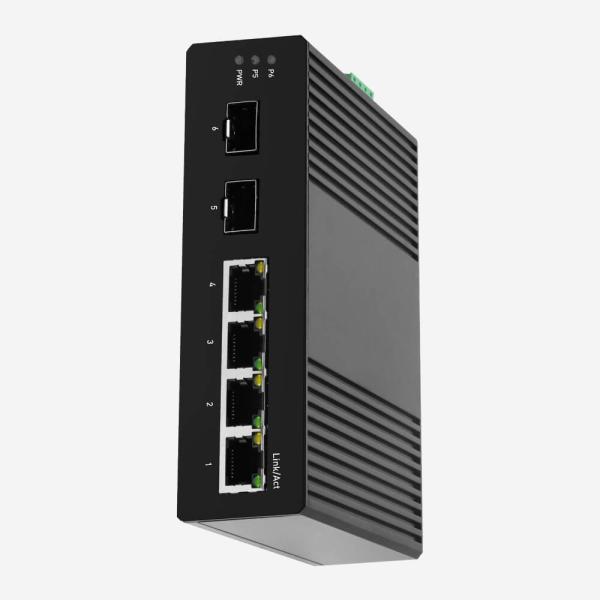

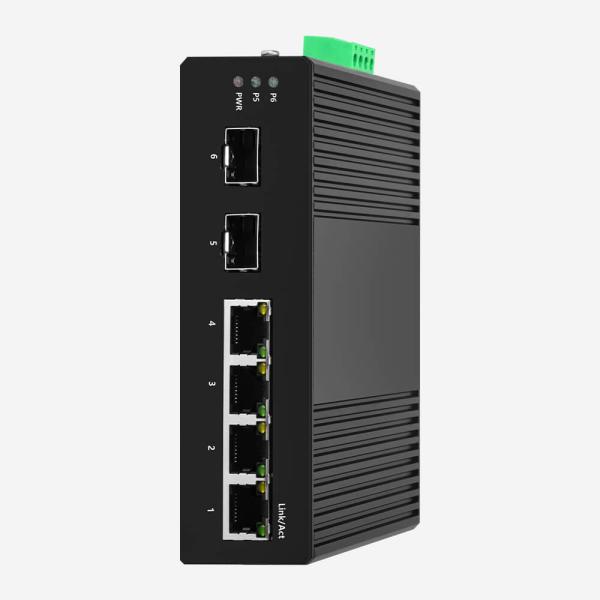

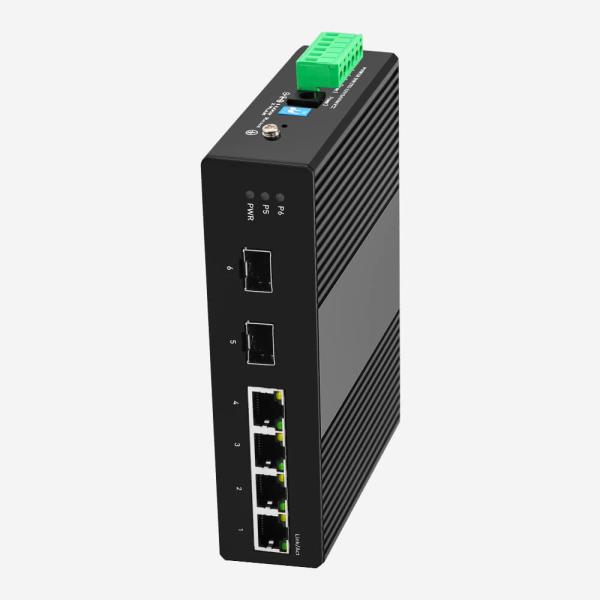

4 RJ45 Ports 2SFP Industrial Smart Switch 6 Ethernet Ports SR-SHG2206FI
4 RJ45 Ports 2SFP Industrial Smart Switch 6 Ethernet Ports SR-SHG2206FI
4 RJ45 Ports 2SFP Industrial Smart Switch 6 Ethernet Ports SR-SHG2206FI
4 RJ45 Ports 2SFP Industrial Smart Switch 6 Ethernet Ports SR-SHG2206FI
4 RJ45 Ports 2SFP Industrial Smart Switch 6 Ethernet Ports SR-SHG2206FI
4 RJ45 Ports 2SFP Industrial Smart Switch 6 Ethernet Ports SR-SHG2206FI
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG2206FI
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
4GE 2SFP Industrial Smart Switch
Power Supply :
12~ 57 V DC/ 2.5A(MAX)
Material :
Aluminum alloy
Switching Capacity :
12Gbps
Jumbo Frame :
10K
Dimension :
136 mm *108 mm *38.5 mm
Description

6 Ethernet Ports, 4 RJ45 Ports, 2 SFP Fiber Ports Industrial Smart Switch SR-SHG2206FI

2G SFP Slots And 4GE Ports Industrial Easy Smart Gigabit Ethernet Switch

Description Of The 6 Port Sfp Switch:

SR-SHG2206FI is a Gigabit industrial Ethernet fiber switch with 4 Gigabit Ethernet 10/100/1000Mbps adaptive electrical ports and 2 Gigabit SFP fiber ports. It has built-in lightning protection, meets IP30 protection level, and works in a wide range of temperatures from -40 °C to +75 °C, and can adapt to various harsh environments.

Features Of The Ethernet Fiber Switch 6 Port:

  • Provide 4 10/100/1000Mbps RJ45 ports, 2 10/100/1000Mbps SFP fiber ports.
  • Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab.
  • Supports IGMP listening, static aggregation, port mirroring, and STP/RSTP spanning tree protocols.
  • IP30 protection can reduce the impact of dust.
  • Three power inputs, redundant backup, greatly improving the reliability of product power supply.
  • Tag VLAN based on IEEE 802.1Q.

Product Spectification Of The Gigabit Switch 6 Port:

SR-SHG2206FI
Power Supply 12~ 57 V DC/ 2.5A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports 4×10/100/1000Mbps RJ45 ports, 2×SFP ports
Indicators 4 status indicators Link/ACT, 2 SFP fiber port indicators (Link), PWR
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 136*108*38.5 mm
Switching Capacity 12Gbps
Packet Forwarding Rate 8.928Mpps
Installation DIN rail/wall mount
DIP switch

Support one-click ring network configuration, one-click VLAN

isolation configuration
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS		 IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5

Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
- Supports 128 groups
• Link Aggregation
- Supports static link aggregation
- Supports 8 groups of aggregation, up to 4 ports per group
• Port Mirroring
- One-to-one
- Many-to-Many
• Support port isolation, port grouping
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• Supports Port VLAN and 802.1Q VLAN
• Supports Port-based/802.1p/DSCP priority
Quality of Service
(QoS)		 • Support 4 priority queues
• Port Speed Limit
• Storm Control
Management • Support WEB network management, IP:192.168.1.199
User name and password is:admin
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS

Product Application Of The 6 Port Fiber Switch:

4 RJ45 Ports 2SFP Industrial Smart Switch 6 Ethernet Ports SR-SHG2206FI
