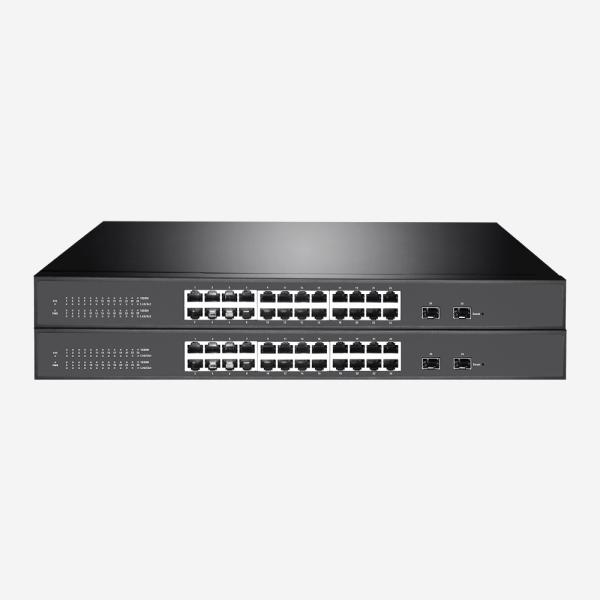

10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2SFP Fiber Ports
10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2SFP Fiber Ports
10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2SFP Fiber Ports
10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2SFP Fiber Ports
10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2SFP Fiber Ports
10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2SFP Fiber Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SG2226F
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
24GE 2SFP Easy Smart Gigabit Switch
Switching Capacity :
52Gbps
Power Supply :
AC100~240V 50/60Hz
MAC address table :
8K
Manage :
Layer 2
Jumbo Frame :
10K
Description

10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2 Gigabit SFP Fiber Ports

Easy Smart Gigabit Switch With 24GE Ports and 2G SFP Slots

Description Of The Managed Switch For Home:

SR-SG2226F series is a 10/100/1000Mbps gigabit smart managed switch with 24 RJ45 ports supporting IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab standards. It provides easy-to-use WEB visual management, and all ports support self-negotiation function to automatically adjust transmission mode and transmission speed.

Features Of The Managed Gigabit Switch:

  • Supports IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x , IEEE802.3az.
  • Provide 24 10/100/1000Mbps RJ45 ports, 2 SFP fiber ports.
  • Full-duplex flow control conforms to IEEE 802.3x standard, and half-duplex adopts Backpressure standard.
  • Support MAC address automatic learning, automatic aging and aging time setting.
  • Support 802.1q VLAN, Storm Control, and Port Mirroring.
  • Support Port-Based/802.1p/DSCP priority QoS.

Product Spectification Of The Easy Smart Switch:

SR-SG2226F
Power Supply AC100~240V 50/60Hz
Standards IEEE 802.3i,802.3u,802.3ab,802.3x,802.3az
Ports 24×10/100/1000Mbps RJ45+2×SFP
Indicators 24 electrical port speed indicators, 24 electrical port link/act indicators, power input indicator
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF
Dimensions 440*190*44.5 mm
Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 52Gbps
Packet Forwarding Rate 38.688Mpps
Packet Buffer 4.1Mbit
Jumbo Frame 10KBytes
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
• Link Aggregation
- Supports static link aggregation
• Port Mirroring
• Cable Test
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs
• MTU/Port/802.1Q VLAN
Quality of Service
(QoS)		 • Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Storm Control
• Rate Limit
Management

• Web-based Graphic User Interface (GUI)

• Smart-Configuration Utility
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS

Product Application Of The Layer 2 Ethernet Switch:

10 100 1000M 24 RJ45 Ports Gigabit Easy Smart Switch With 2SFP Fiber Ports
