Specifications
Brand Name :
SINOLINK
Model Number :
GS150
Certification :
CE
Place of Origin :
Shandong, China
MOQ :
1 Unit
Price :
USD780-950/unit
Payment Terms :
L/C, T/T
Supply Ability :
500 Units/month
Delivery Time :
30 work days
Packaging Details :
Plywood case:920X760X1100mm
Condition :
New
Type :
Wood chipper
Power Type :
Gasoline engine
Max. Chipping diameter :
120mm
Blades :
Twin reversible cutting blades
Cutting method :
Disc
Discharge Chute :
360° rotate
Core Components :
Bearing, Engine
Warranty :
1 year
Description

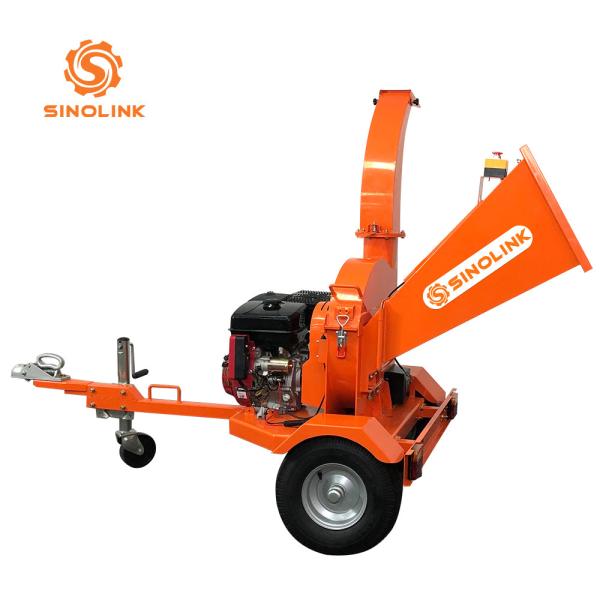

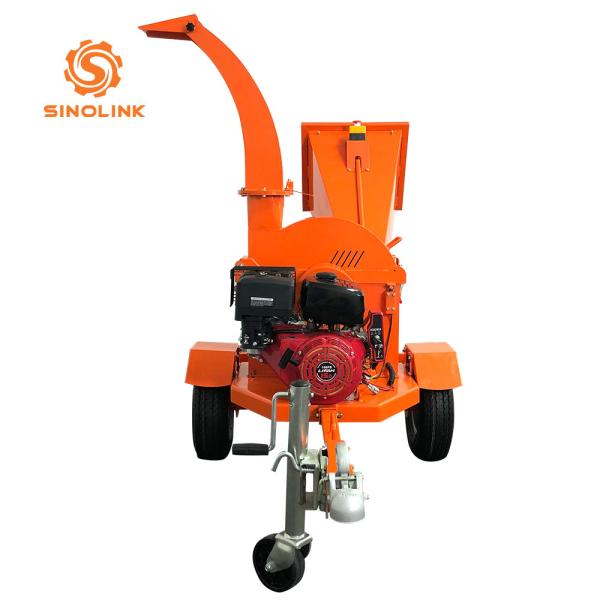

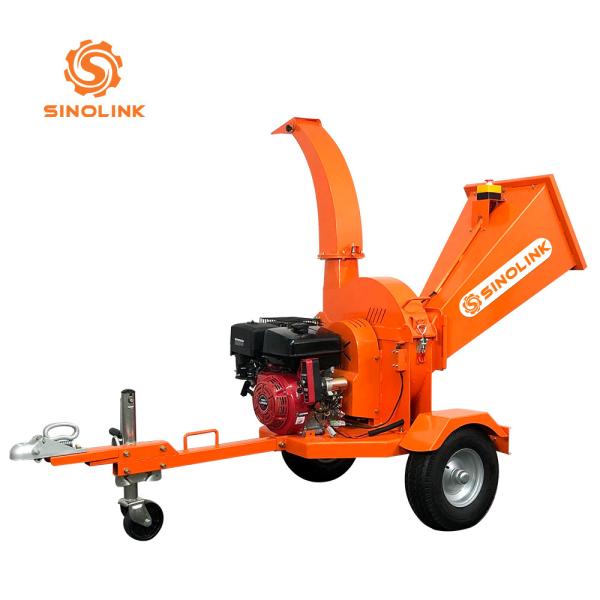

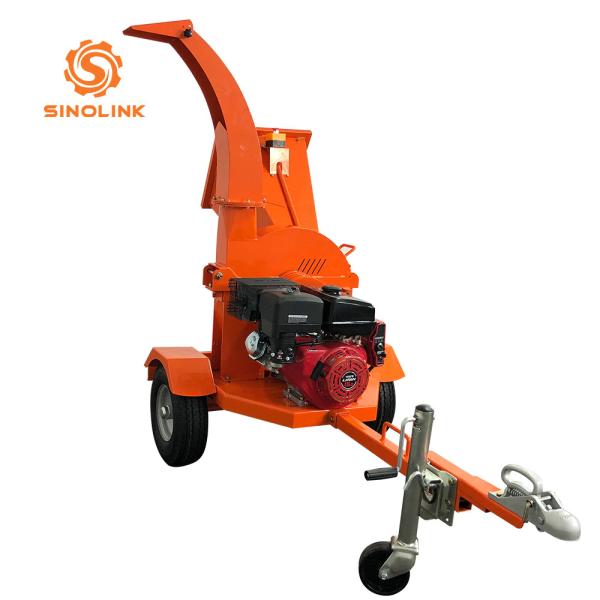

15HP Gas Powered Portable ATV Wood Chipper Shredder Crusher Machine

Sinolink GS150 is a self-feeding gasoline engine powered wood chipper that uses a large disc rotor to shred wood. Compared to most other motorized chippers which use a drum style processor, this machine is more efficient and more productive. The machine can handle material up to 4 1/2″ in diameter.

The GS150 is equipped with a professional-grade Briggs & Stratton gasoline engine with 13.5 HP and 21.00 ft./lbs. of torque. The chipper comes standard with an electric starter. The material is fed by the Infeed chute into the 22″ diameter rotor. This powerful system is pulling the branches in at up to 50′ per/min.

The chipper is perfectly balanced and can easily be moved to your worksite either by hand or by connecting it to an ATV or utility vehicle for transport.

Features:

  • 13.5hp Briggs & Stratton petrol engine, air-cooled 4-stroke.

  • 360° rotatable discharge chute

  • Emergency Stop.

  • Electric starter and recoil starting system

  • Max chipping capacity 120mm

  • Disc cutting method

  • Trailer Hitch for 50mm hitch ball

  • Swivel Trailer tongue jack included

Engine: Single Cylinder, Four Stroke, Air Cooling
Displacement: 420cc
Clutch: Centrifugal clutch
Chipping Capacity: 4.7inch
Drive 2pcs belts direct drive
Cutting Method: Disc
Cutter RPM: 2000 rpm/min
Wheel: 5.7-8 Tubeless
Fuel Tank: 6.5L

Mini Small Wood Crusher Machine Design Portable Wood Shredder 15HP ATVMini Small Wood Crusher Machine Design Portable Wood Shredder 15HP ATV


Mini Small Wood Crusher Machine Design Portable Wood Shredder 15HP ATV

Mini Small Wood Crusher Machine Design Portable Wood Shredder 15HP ATV
