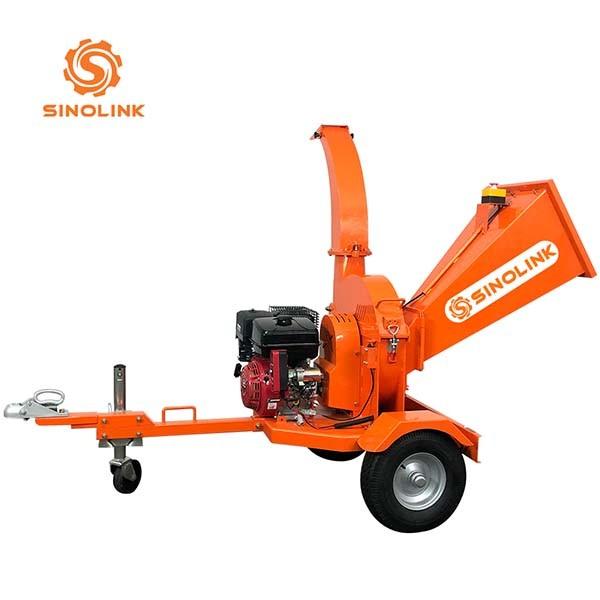

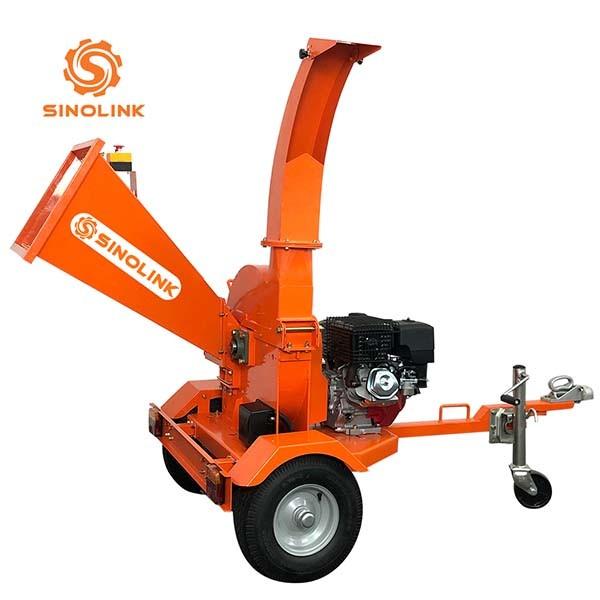

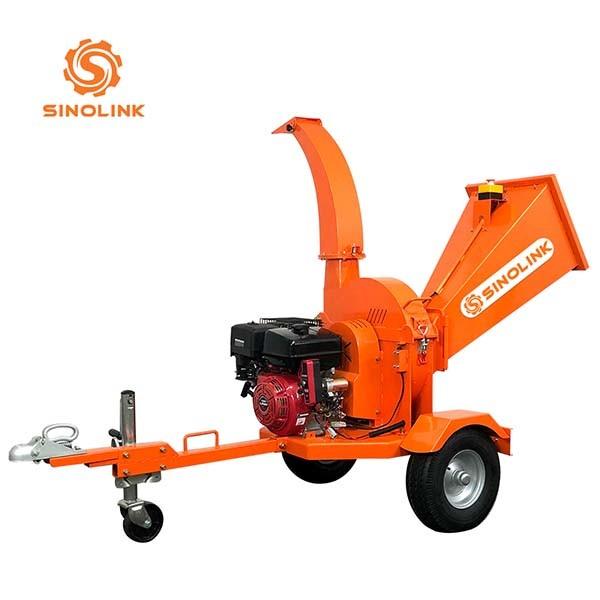

5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
Specifications
Brand Name :
SINOLINK
Model Number :
GS150
Certification :
CE
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD+850-950+set
Payment Terms :
T/T
Supply Ability :
300+set+per+month
Delivery Time :
30 days after payment
Packaging Details :
Plywood box 920X760X1100mm
Power :
15hp gasoline engine power
Blades :
2pcs fly blades and 1pcs fixed blade
Wheel :
5.7-8
chipper disc :
20mm
disc diameter :
550mm
max chipper :
120mm
chipper weight :
270kg
Description
Tow bar 15hp wood chipper Atv chipper petrol Engine Wood Chipper Timber Shredder cut brach
Extra-Safe Wood Chipper
Designed with your safety at the forefront, this petrol shredder has an easily accessible emergency stop button and is
also self-feeding, meaning you can place the end of any branches or sticks into the machine and it will auto-feed in the
rest, so you can keep your arms well clear of any dangerous moving parts.
Time-Saving Wood Shredder
The GS150's fast 2200rpm shredding speed makes it so you will never have to struggle with back-breaking and time-consuming
wood chipping again, making it a great choice for large garden clearance jobs, maintaining estates or business premises, or for your gardening or clearance business.
Easily Direct Chippings
Thanks to the GS150's rotatable discharge chute, which is able to be rotated a whopping 360°, chippings can be easily
directed in multiple directions to suit your need, whether this is into a trailer, into a wheelbarrow, or onto a desired patch
of ground, making clear-up even easier and less time-consuming.
So Easy To Use
Despite this chipper's hugely powerful engine and incredible chipping ability, you might be surprised to read that is has
low service requirements.
Petrol Wood Chipper Benefits
Because this powerful garden shredder is petrol-powered, it means you won’t have to worry about being limited by
power cables, giving you the freedom to use it right at the bottom of a large estate garden next to your compost pile
or in remote locations - simply top it up with fuel and get started.
Benefits of Chipping Wood
Chipping your wood will allow you to fit much more of it into your waste or compost bin. You can also use chippings
in your garden to reduce weeds in your flowerpots or beds and hold moisture in the soil.
Petrol wood chipper Specifications
Model GS150
Start Method Electric or Recoil
Drive Type Belt Drive
Chipping Capacity (mm) 120
Feed Hopper Opening Size (mm) 500x460
Infeed Throat Opening Size (mm) 160x176
Disc Size (mm) (Diameter / Thickness) 550 x 20
Knives 2
Features ATV Towing Bar, 360° Rotating Chute
Handle Type N/A
Safety Features Stop Button
Engine Model Loncin 420FD or B&S XR2100
Engine Type 4 Stroke OHV Single Cylinder
Engine Size (cc) 420
Rated Power (hp) 15
Disc Speed (RPM) 2200
Fuel Petrol
Fuel Capacity (L) 6.5
Engine Oil SAE30
Engine Oil Capacity (ml) 1100
Gross Weight (kg) 270
Tyres 5.7-8
Off Road Tow Bar Yes
Fully Assembled Dimensions (H x W x L) (mm) 2550 x 1010 x 1810
Package Dimensions (H x W x L) (mm) 1250 x 770 x 1050
Fuel Type / Power Source Petrol
Product Type Wood Chipper
Warranty (years) 1
Commercial Warranty (years) 1
In The Box Petrol Wood Chipper, Tool Set, Manual

5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
There is an Emergency stop Bar at the feeder hopper.

When it is depressed it cuts off the engine.
As the engine reduces speed the clutch will release and the Disc will begin to slow down.
Easy access inside the disc cover to the disc and blades via a quick release latch.

The disc cover has a micro switch to stop the engine being started with the cover open.
The exit shoot, can swivel 360°, throwing the chip into a nearby trailer or pile.

5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder

LONCIN 420cc 27Nm
Easy Pull Start
Double Belt with Clutch (no load during starting)
Capacity 4” 100mm - cutting point is 160Wx 200H (mm)
360° Rotating Discharge Chute
Double Blades (reversible)
Anvil: Adjustable
Large feed shoot, with gravity self feed.
LED tail light and NZ & pin plug
Tyres: E-Mark 5.7-8 Road Tyre
Folding height adjustable jockey wheel
Coupling 1 7/8”
5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder
Extremely strong and robust. Main housing is made of 5mm steel plate, and the base of 4mm plate.

10mm bearing boss plate.
Weight: 260kgs

5 Inch Wood Chipper Machine For Bamboo Atv Tow Bar Domestic Petrol Shredder

1.Large warehouse layout provides improved performance
2.Large drum also provides torque increases
3.Equipped a towbar with 50mm standard trailer coupling
4.Safety switches on feeder and outchute hatches that can be opened
5.The machine requires assembly when open the wooden box package
