OEM Silicone Black Epoxy Potting Compound Resin Glue 5:1 For Electrical
OEM Silicone Black Epoxy Potting Compound Resin Glue 5:1 For Electrical
Specifications
Brand Name :
Hanast
Model Number :
HN-5508AB
Certification :
ROHS SGS
Place of Origin :
Guangdong,China
MOQ :
1kg
Price :
Can be discussed
Payment Terms :
T/T
Packaging Details :
30 KG per group
Mix ratio :
A:B=5:1
Type :
Waterproof epoxy potting glue
Feature :
no bubbles after curing, smooth surface, luster, high hardness
Application :
transformers, resistors, filters, temperature sensors
curing time :
25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
The hardness of SHORE A :
85-95
low temperature resistant ℃ :
-30
A component :
Epoxy resin
B component :
Curing agent
Regular packaging :
30 KG per group
Description

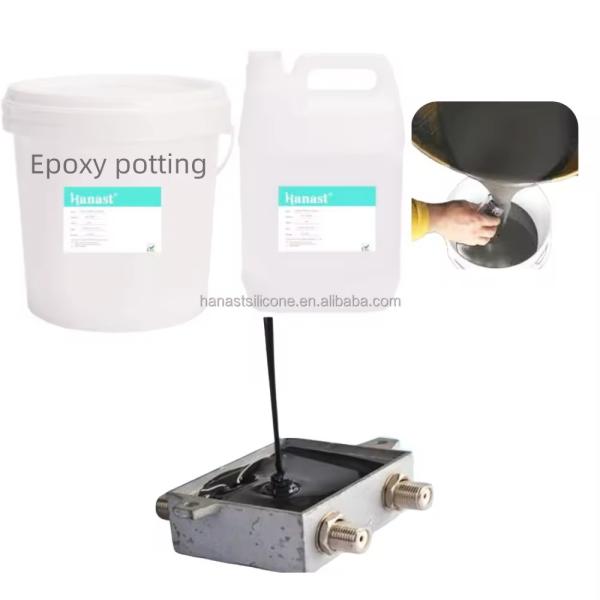

Black Epoxy Resin Potting Glue 5:1 Epoxy Silicone Manufacturer High Hardness For Circuit Board Transformers Resistors Potting Adhesive

HN-5508 epoxy resin at room temperature or low temperature, with low viscosity, long operation time, good fluidity, and easy penetration into the clearance of the product; no bubbles after curing, smooth surface, luster, high hardness

OEM Silicone Black Epoxy Potting Compound Resin Glue 5:1 For Electrical

Features

Flame retardant insulation, sealing bonding, moisture-proof earthquake resistance, low-temperature resistance.

Applications

HN-5508 is widely used in transformers, resistors, filters, temperature sensors, temperature controllers, ignition coils, high-voltage packs,
aquarium equipment, anion generators, ultrasonic atomizers, and electronics

efore curing

builder

Epoxy resin 5508

Curing agent 5508

pigment

Black / White et al

Ruburn / transparent surface

A sticky epoxy resin water

r liquid specific

c gravity, g / cm3

1.4-1.5

1.05

Viscosity of 25℃

4,500—6,000cp s

150—250cp storage

e Period (25℃)

Six months

x months

processabili

mixing ratio

A: B =5:1 (weight ratio)

Available for a time of 25℃

2-3H (100g mix)

curing time

25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H

After curing

2 Tensile strength of kg/cm

16-18

2 Compressive strength of kg/cm

18-22

Resistance to the voltage of kv/mm

20-22

Surface resistance ofΩ-cm

14

1.2*10

Volume resistance ofΩ-cm

15

1.1*10

contraction percentage%

0.35-0.55

Water absorption rate was 25℃ * 24H

<0.03%

The hardness of SHORE A

85-95

distortion

temperature ℃

130-150

low temperature resistant ℃

-30

1. This product is an AB agent, according to the label ratio on the product package, and the mixing ratio is weight ratio and non-volume ratio.

2, AB agent mixing can not be stirred with a round bar without resistance, must be stirred with a flat tool with resistance, it is best to use a small mixer.

3. This product should be placed in a cool and dry place to avoid light, keep the workshop dust-free, and cover the unused glue after opening the lid in time.

4. The performance test data is the test result when the humidity is 60% and the temperature is 25℃, for customer reference only.

5, resin glue stored in a wet environment will exhibit a crystallization phenomenon, please put it in the oven at a low temperature hot dry, and restore its original state.
