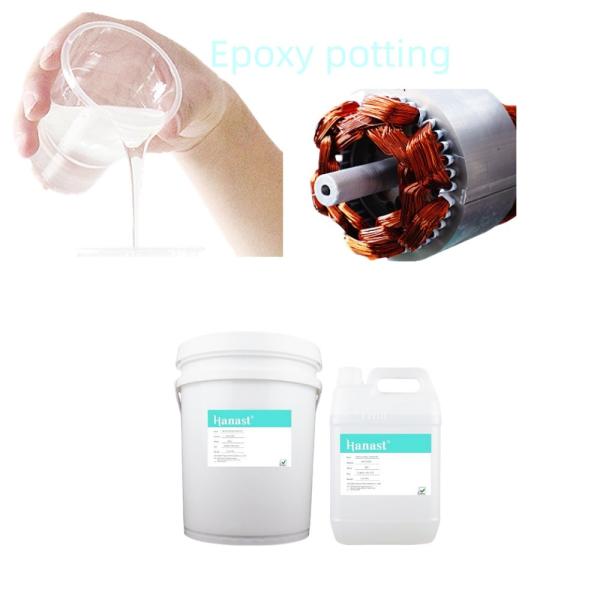

Electrical Potting Epoxy Electronics Potting Glue Waterproof Sealant 200kg
Electrical Potting Epoxy Electronics Potting Glue Waterproof Sealant 200kg
Specifications
Brand Name :
Hanast
Model Number :
HN-5508AB
Certification :
MSDS
Place of Origin :
CHINA
MOQ :
1KG
Price :
6.3
Payment Terms :
T/T
Supply Ability :
1000000KG
Delivery Time :
3-5 work days
Packaging Details :
Plastic/Iron Drums
Product name :
Epoxy Resin potting glue
Color :
Black/Grey/Transparent color, can customized
Application :
PCB/Battery/LED
Package :
5kgs/25kgs/200kgs/bag
Material :
Epoxy Resin&Agent
Keywords :
Waterproof Sealant
Viscosity :
Excellent Viscosity
Certificate :
MSDS RoHS UL
Feature :
Low and high Temperature Resistance
Thermal conductivity :
Customize
Description

Epoxy Potting Glue With Low Viscosity Long Operational Time Suitable for Transformers Resistors Filters Electronic Appliances

HN-5508 Industrial Potting Compound

Product Specification

Before curing builder Epoxy resin 5508 Curing agent 5508
pigment Black / White et al Ruburn / transparent surface
Surface A sticky epoxy resin water r liquid specific
specific gravity, g / cm3 1.4-1.5 1.05
Viscosity of 25℃ 4,500—6,000cp s 150—250cp storage
storage Period (25℃) Six months x months
processabilility mixing ratio A: B =5:1 (weight ratio)
Available for a time of 25℃ 2-3H (100g mix)
curing time 25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
After curing Tensile strength of kg/cm 16-18
Compressive strength of kg/cm 18-22
Resistance to the voltage of kv/mm 20-22
Surface resistance ofΩ-cm 14
1.2*10
Volume resistance ofΩ-cm 15
1.1*10
contraction percentage% 0.35-0.55
Water absorption rate was 25℃ * 24H <0.03%
The hardness of SHORE A 85-95
Distortion temperature ℃ 130-150
low temperature resistant ℃ -30

Product Describtion
HN-5508 is an epoxy potting compound suitable for industrial equipment. It has excellent temperature resistance, chemical resistance and mechanical strength. It is widely used in industrial applications such as high-voltage packaging, aquarium equipment and ultrasonic atomizers.

Electrical Potting Epoxy Electronics Potting Glue Waterproof Sealant 200kg

Product Highlights
High temperature resistance: The operating temperature range is -30°C to 130-150°C, suitable for extreme industrial environments.

Chemical resistance: Acid and alkali resistance, moisture resistance, aging resistance, suitable for harsh conditions.

High mechanical strength: Hardness 85-95 SHORE D, providing excellent compression and impact resistance.

Electrical Potting Epoxy Electronics Potting Glue Waterproof Sealant 200kg

Electrical Potting Epoxy Electronics Potting Glue Waterproof Sealant 200kg

Technical parameters
Viscosity (Component A: 4500-6000 cps, Component B: 150-250 cps)

Hardness (SHORE D): 85-95

Tensile strength: 16-18 kg/cm²

Compressive strength: 18-22 kg/cm²

Application scenarios
High-voltage packaging: used for insulation and protection of high-voltage equipment.

Aquarium equipment: Provide waterproof and moisture-proof sealing.

Ultrasonic atomizer: Enhance the durability and reliability of equipment.

Electrical Potting Epoxy Electronics Potting Glue Waterproof Sealant 200kg

Usage method
Mix according to the weight ratio of A:B = 5:1 and use.

Fully cure in 12-16 hours at 25℃, or 1.5-2 hours at 60-80℃.

Electrical Potting Epoxy Electronics Potting Glue Waterproof Sealant 200kg

Packing specifications
30 KG/group (Component A 25 KG/barrel, Component B 5 KG/can)
