Specifications
Brand Name :
Hanast
Model Number :
HN-5508A/B
Certification :
ROHS，SGS
Place of Origin :
Guangdong, China
MOQ :
1 kilogram
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-7days
Packaging Details :
25KG/ Iron Drum
Description

5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

Description of Epoxy Potting Compound

Epoxy potting compound is a liquid encapsulant based on epoxy resin, formulated with functional additives and curing agents. It is primarily used for insulation potting, moisture-proof sealing, and protection of electronic components. Once cured, it forms a rigid, high-hardness insulator.

5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

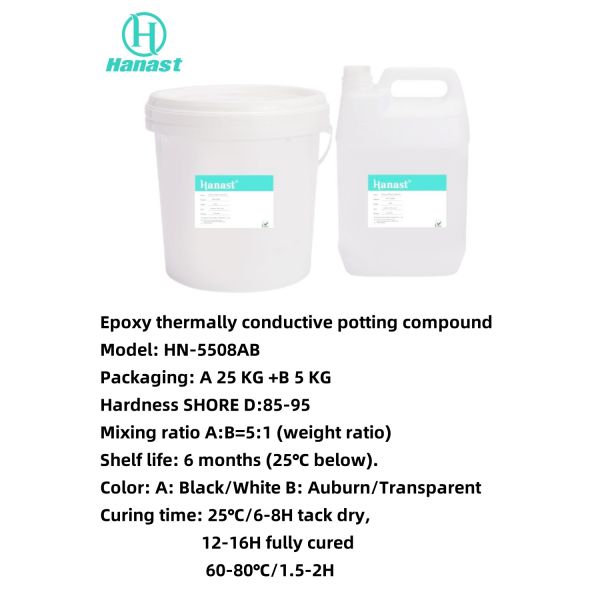

technical parameter of epoxy potting compound:

efore curing builder Epoxy resin 5508 Curing agent 5508
pigment Black / White et al Ruburn / transparent surface
A sticky epoxy resin water r liquid specific
c gravity, g / cm3 1.4-1.5 1.05
Viscosity of 25℃ 4,500—6,000cp s 150—250cp storage
e Period (25℃) Six months x months

processabili

 mixing ratio A: B =5:1 (weight ratio)
Available for a time of 25℃ 2-3H (100g mix)
curing time 25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
After curing 2 Tensile strength of kg/cm 16-18
2 Compressive strength of kg/cm 18-22
Resistance to the voltage of kv/mm 20-22
Surface resistance ofΩ-cm

14

1.2*10
Volume resistance ofΩ-cm

15

1.1*10
contraction percentage% 0.35-0.55
Water absorption rate was 25℃ * 24H <0.03%

The hardness of SHORE A 85-95

distortion

temperature ℃

 130-150
low temperature resistant ℃ -30

Product Features of epoxy potting compound:

Superior Insulation: Possesses extremely high volume resistivity and dielectric strength, effectively preventing electrical leakage. Physical Protection: Upon curing, it exhibits excellent resistance to water, moisture, dust, and vibration. Chemical Resistance: Demonstrates strong tolerance to acids, alkalis, salt spray, and most solvents.

5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

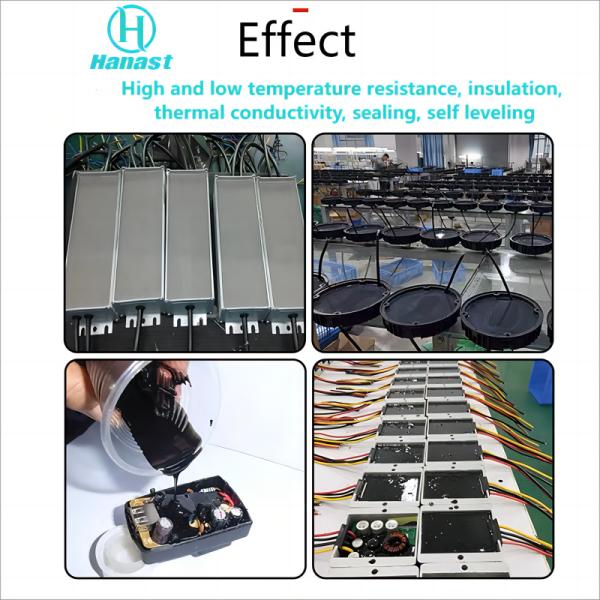

Application of epoxy resin potting:

Applications Across Electronics, Electrical, Automotive & New Energy:

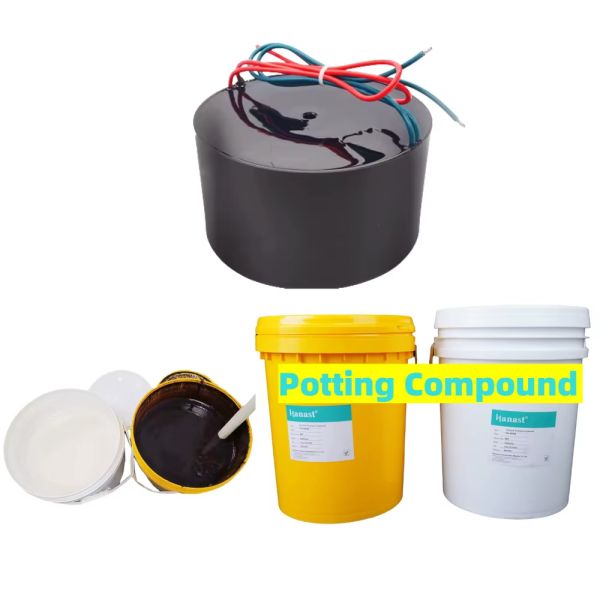

  • Power Modules: Potting and thermal management for transformers, chargers, and inverters.

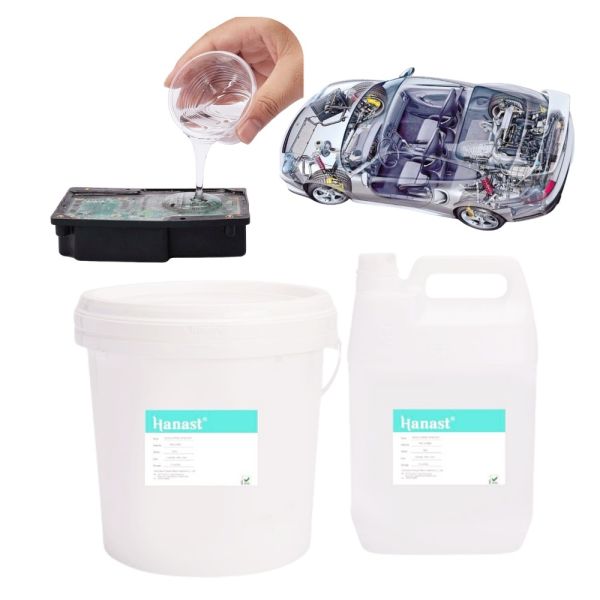

  • Sensors: Waterproof sealing for automotive sensors and industrial probes.
  • PCBs: Security, corrosion resistance, and mechanical reinforcement for sensitive components.
  • 5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

How to use epoxy potting compound:

1. Prepare – Ensure the component is clean and dry. Stir Part A (resin) thoroughly before use.

2. Mix by Weight – Use a precise scale. The ratio 5:1 is by weight, not volume. Example: 500g Part A + 100g Part B.

3. Stir Gently – Mix slowly in one direction for 3–5 minutes. Avoid fast stirring to prevent air bubbles.

4. Remove Bubbles (Critical) – Best: use a vacuum chamber (3–5 min). Alternative: let the mix sit for 15–30 minutes to allow bubbles to rise.

5. Pour Slowly – Fill the component in one go or in two layers (recommended) to reduce voids.

6. Cure – At 25°C (77°F), allow 24 hours. For faster results, cure at 60–80°C (140–176°F) for 2–4 hours.

​

5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

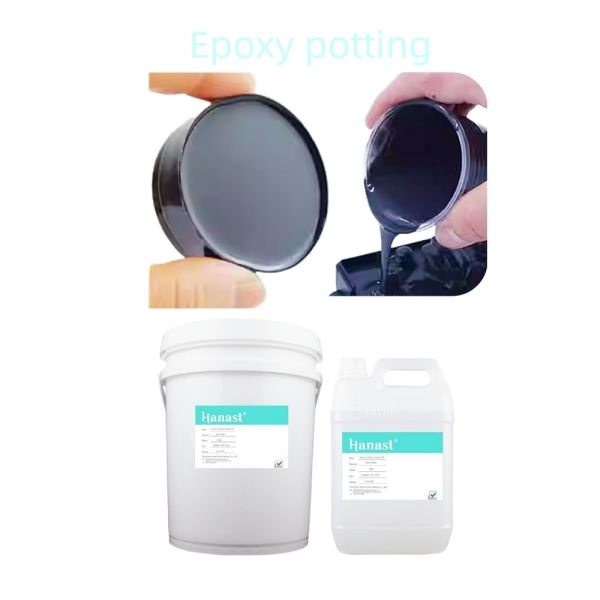

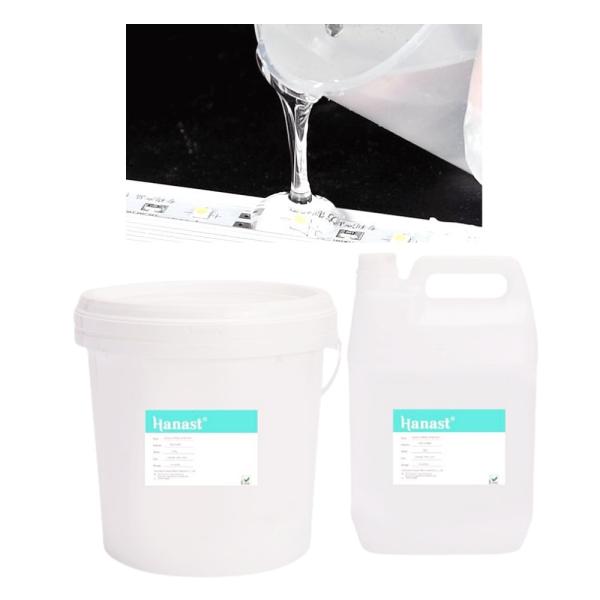

Package of epoxy potting compound:

25kg/barrel

5:1 Epoxy Resin Potting Waterproof Black Epoxy Potting Compound For Sensor PCB Transformer

Precautions & Handling Instructions of epoxy potting compound:

  • Pot life: ~20–40 minutes. Work quickly.

  • Start with a small test batch before potting valuable parts.

  • Wear gloves. Clean spills with alcohol or acetone.
