HN-8830 Potting Compound - 3.0 W/mK Thermal Conductive Silicone for Extreme Environment Electronics

Product Overview for Thermal Conductive Potting Compound:

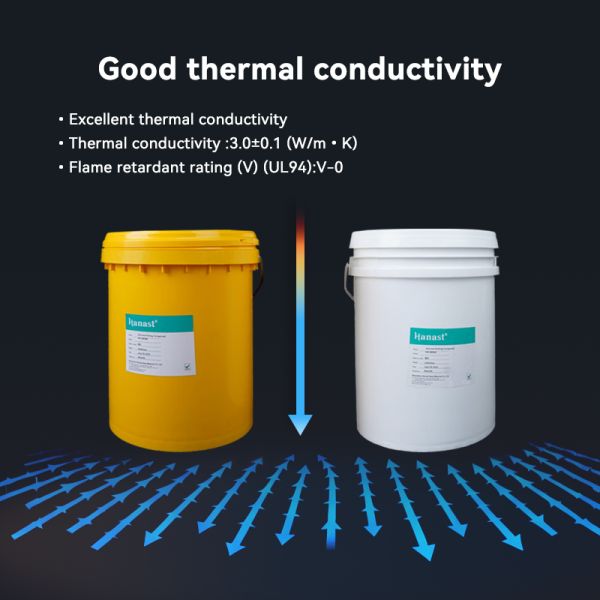

HN-8830 is an engineering-grade, two-component addition cure silicone potting compound meticulously formulated for electronics operating under severe thermal and environmental stress. With an exceptional thermal conductivity of 3.0 W/m·K, it efficiently transfers heat away from sensitive components, significantly reducing junction temperatures and extending product lifespan. Its robust formulation ensures unwavering performance across an expansive temperature range of -40°C to 200°C, making it the guardian of reliability for your most critical power electronics.

Key Features & Benefits for Thermal Conductive Potting Compound:

• Advanced Thermal Management: 3.0 W/m·K rating effectively dissipates heat from high-power components, preventing overheating and failure.

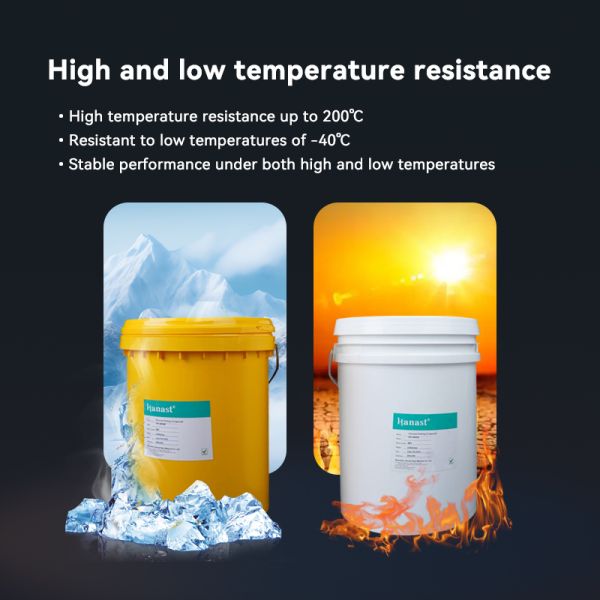

• Unmatched Environmental Stability: Maintains elasticity and protective properties through extreme cold, intense heat, and long-term thermal cycling.

• Superior Electrical Insulation: Volume resistivity ≥1.0×10¹⁴ Ω·cm provides a high dielectric

  strength barrier, preventing short circuits in high-voltage applications.

  Inherent Safety with V-0 Rating: Achieves UL 94 V-0 flame retardancy, a critical safety feature for power supplies and automotive applications.

  Simplified Precision Processing: The precise 1:1 mix ratio by weight eliminates complex calculations, reducing errors and ensuring consistent batch-to-batch performance.

•

• Detailed Technical Parameters for Thermal Conductive Potting Compound:

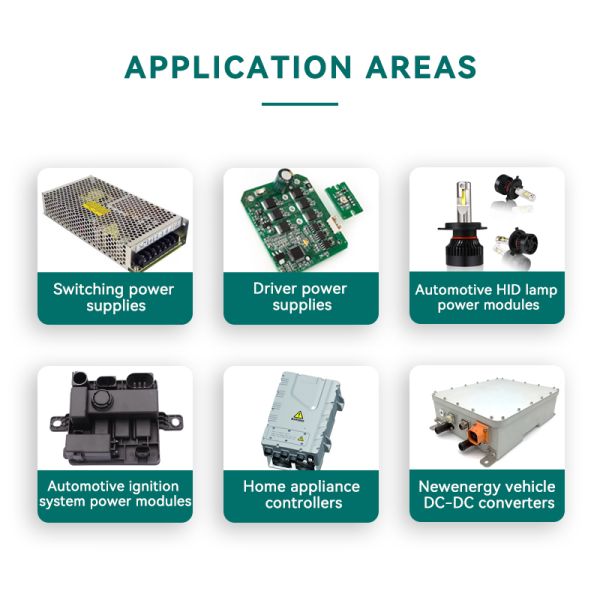

Target Applications for Thermal Conductive Potting Compound:

Automotive: Electric Vehicle (EV) DC-DC Converters, On-Board Chargers (OBC), Battery Management Systems (BMS), Engine Control Units (ECU).

Power Electronics: High-Density Power Modules, IGBT Drivers, Solar Inverters, UPS Systems.

Industrial Electronics: Motor Drives, Industrial Control Boards, PLCs.

Consumer Durables: High-Power Switching Power Supplies, LED Driver Modules.

Step-by-Step Processing Guide for Thermal Conductive Potting Compound:

Preparation: Stir parts A and B separately in their original containers to reincorporate any settled fillers. This is crucial for achieving stated thermal performance.

Dispensing: Accurately weigh equal parts of A and B using a calibrated scale.

Mixing: Mix thoroughly for 3-5 minutes using a mechanical mixer (recommended) or by hand, scraping the sides and bottom of the container until the color is perfectly uniform.

Degassing: Place the mixed compound in a vacuum chamber (< 1 kPa) for 5-10 minutes until air bubbles are largely removed.

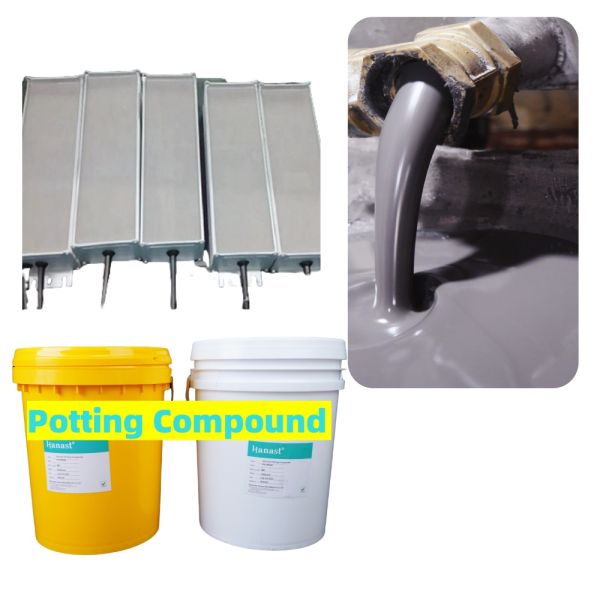

Potting: Slowly pour or dispense the degassed material into the device. Ensure all components are covered. The housing and components should be clean, dry, and at room temperature.

Curing: Allow to cure at room temperature. For faster throughput, a staged cure (e.g., 30-60 mins @ 80°C) is highly effective.

Critical Handling Precautions for Thermal Conductive Potting Compound:

Cure Inhibition Warning: Addition-cure silicones are susceptible to inhibition by certain substances. Avoid contact with:

Tin, Lead, and Sulfur: Found in some solder fluxes, RTV silicones, and rubber gaskets.

Amines and Phosphorous: Present in some epoxy hardeners and release agents.

Always conduct a small-scale compatibility test with your specific substrates and components

before full production.

Packaging & Storage for Thermal Conductive Potting Compound:

Standard Packaging: 50 kg kit (2 x 25 kg sealed pails of Component A and B).

Shelf Life: 6 months in unopened, original containers stored in a cool, dry place (below 30°C).

Frequently Asked Questions (FAQ) for Thermal Conductive Potting Compound:
Q1: We need faster cycle times. What is the minimum cure time with heat?
A: While 30 minutes at 80°C is standard, the cure time can be further optimized. For example, at 100°C, the cure time can be reduced to approximately 15-20 minutes. We recommend profiling the cure schedule for your specific assembly.

Q2: How does HN-8830 perform under thermal cycling?
A: Excellently. Its flexible silicone matrix and low modulus effectively absorb the stress induced by the differing coefficients of thermal expansion (CTE) between components, the PCB, and the

housing, preventing delamination or cracking.

Q3: Can you provide material samples and technical support?
A: Absolutely. We offer sample kits for qualified potential customers. Our engineering team is also available to provide application support and troubleshooting.

Q4: Is HN-8830 RoHS 3 and REACH compliant?
A: Yes, HN-8830 is fully compliant with RoHS 3 (EU 2015/863) and REACH (SVHC) regulations. Full compliance certificates are available upon request.

Q5: Our application has unique requirements. Can the formula be adjusted?
A: Yes, as a manufacturer, we pride ourselves on our customization capabilities. We can adjust properties like viscosity, cure speed, color, and specific thermal or physical properties to meet your needs. Contact us to discuss your project.
