4mm Stainless Steel Plate AMD-sE3510 CNC Turret Punching Machine Blinds Sheet Metal

ODM AMD-SE3510 Sheet Metal/Aluminum Plate/Stainless Steel CNC Turret Punching Machine For Blinds

CNC Servo Punch Press High Precious Positioning 600hpm Punching Frequency

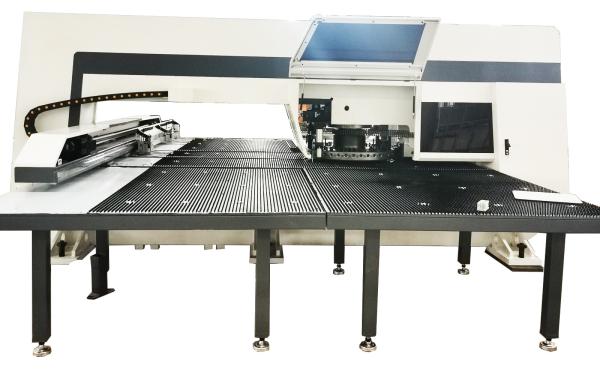

AMD-SE3510 CNC turret punching machine is mechatronics automation equipment, it's widely used in the instruments and meters, chassis cabinets processing, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, air conditioners and other sheet metal processing industries.

1. Adopts world first class hydraulic system, full-closed loop control by digital proportionate servo valve for High-resolution. The stroke and speed digital adjustable.

2. The pairs of turret bushing make sure the concentricity of punch and die.

3. Fitted with imported mould to prolong the machine service life.

4. The imported pneumatic ,hydraulic and electric components ensure the working reliability.

5. Precisely controlled to easy realize the task of processing louver, knocking hole, slitting, stamping, etc.

6. World first-class level ball screw and linear guide way to ensure the processing precision.

7. High precision worm-wheel and worm mechanism for high indexing precision, maximum diameter is φ50.8 mm ( extensible ).

8. The concentrated lubricating devices decrease the friction between each working pair and prolong the machine service life..

9. The steel plate welded O-typed closed frame for Good rigidity, small deformation.

10. The auto-protected clamps ensure no punching in the protecting area, thus prevent the mould and clamps from damaging and program can run continuously..

11. The integral structure of beam and carriage enhance the rigidity and precision; it also ensures the smoothness of feeding at high speed and eliminates the dynamic deflection of X,Y Axes..

control system

Servo motor

punch system
