Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools
Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools
Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools
Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools
Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools
Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools
Specifications
Brand Name :
Qingdao AMD
Model Number :
AMD-357
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
35 workdays
Packaging Details :
Stretch film
Condition :
New
CNC or not :
CNC
Power Source :
Hydraulic
Warranty :
One year
Punching frequency :
400-600 hpm
Control axis :
3-4
Specification :
AMD-357
Air pressure :
≥0.8Mpa
Description

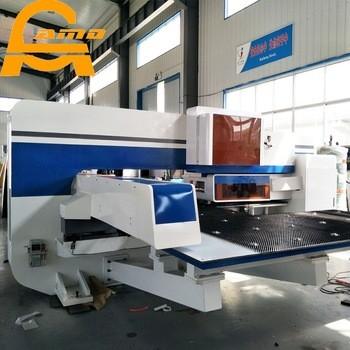

AMD-357 Hydraulic CNC Turret Punching Machine for Sheet Metal Hole Punching

Advantages:

1. Inspected by the Inspection Institution of Bureau Veritas Certification.

2. 100% QC inspection Before Shipment.

3. Customized, Meet your needs.

4. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers),Exquisite appearance (mature craft).

5. Large factories, Prompt delivery.

6. Strict quality inspection department.

7. Over 10 years' production experience.

8. Professional design team to serve you.

9. CE certificate assure you our quality.

Hydraulic press machine main specification:
Specification Unit AMD-357
Transmission mode / Hydraulic Mechanical
Punch force KN 300
Power rating KW 20 11
Processing sheet size mm 2500*1250 2500*1250
Processing sheet thickness mm ≤6 ≤4
Max. Punch diameter mm Ø88.9 Ø88.9
Sheet moving speed m/min 40 40
Punching frequency hpm 600 300
Hole accuracy mm ±0.1 ±0.1
Number of stations in turret No. 16/24/32 16/24/32
Turret speed rpm 30 30
Controlled axis No. 3/4 3/4
Rotating location No. 0/2 0/2
Air pressure Mpa ≥0.8 ≥0.8
Outline Dimension mm 4490*5300*2110 4490*5300*2110
Machine Weight T 11 10

Main configuration:
1. Control system: SIEMENS
2. Servo motor: YASKAWA(from Japan)
3. Servo amplifier: YASKAWA(from Japan)
4. Percision liner roller rail: ABBA( from Taiwan)
5. Electric parts: OMRON

Notice:

According to your requirement, the most suitable machine will be designed for your workpieces, please indicate the following details.

1. What is your sheet metal material?

2. The workpiece size, length, width and thickness.

3. How many hole shapes and hole diameter?

Based on these information, the detailed technical proposals will be sent to you for reference.

Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools

Customized CNC Turret Press Machine Multifunction Sheet Metal Hole Punch Tools

Notice:
According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
1. Please tell us your metal sheet material.
2. The workpiece dimension (including length, width and thickness).
3. The information of hole shapes and hole diameter that you want to punch.
4. It's my pleasure if you can send some photos or drawings of your products for our reference.
Based on these details information, the detailed technical proposals will be sent to you for reference.
