Specifications
Brand Name :
Qingdao AMD
Model Number :
AMD-357
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
35 workdays
Packaging Details :
Stretch film
Condition :
New
CNC or not :
CNC
Power Source :
Hydraulic
Warranty :
One year
Punching frequency :
600hpm
Control axis :
3-4
Power rating :
20kw
Description

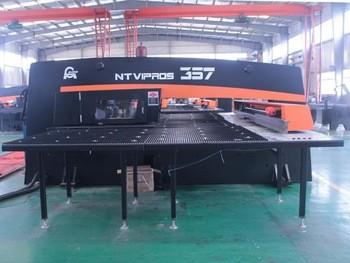

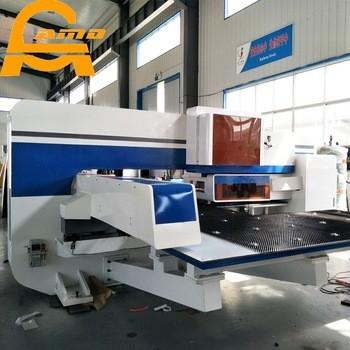

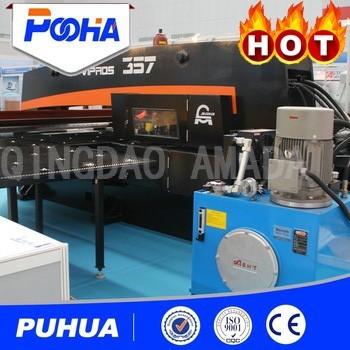

AMD-357 Hydraulic CNC Turret Punching Machine for Sheet Metal Hole Punching

Feature:
1. Adopts Siemens 3/4 axis CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;
4. The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components, hydraulic components and transmission adopt perfectly;
6. Use AMADA standards casting integrated thick turret mold disc and standards internationally general thick molds.

Specification Unit AMD-357
Transmission mode / Hydraulic
Punch force KN 300
Power rating KW 20
Processing sheet size MM 2500*1250
Processing sheet thickness MM ≤6
Max. Punch diameter MM Ø88.9
Sheet moving speed M/MIN 60
Punching frequency HPM 600
Hole accuracy MM ±0.1
Number of stations in turret disc No. 16/24/32
Turret rotational speed RPM 300
Controlled axis No. 3/4
Rotating location No. 0/2
Air pressure Mpa ≥0.8
Outline Dimension MM 4490*5300*2110
Machine Weight T 13

Workshop situation:

AMD-357 Servo Punch Press Machine High Precious Positioning Possibility

AMD-357 Servo Punch Press Machine High Precious Positioning PossibilityAMD-357 Servo Punch Press Machine High Precious Positioning Possibility
