3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
Specifications
Brand Name :
Qingdao Puhua
Model Number :
QGW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
30 days
Packaging Details :
Stretch film
Power(W) :
customized
Dust Collector Material :
Needled Felt Bag or Cartridge Filter
Machine :
Steel pipe shot blasting machine
Type :
steel tube/pipe cleaning machine
Fuel :
Electric
Spare Parts :
Cr20S high chrome, ZGMn13
Cleaning Type :
shot blasting
Warranty :
One year
Description

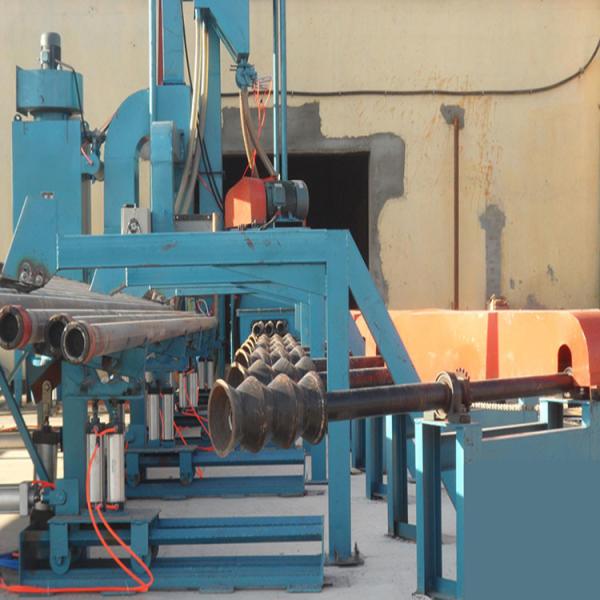

Roller Conveyor Type Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine

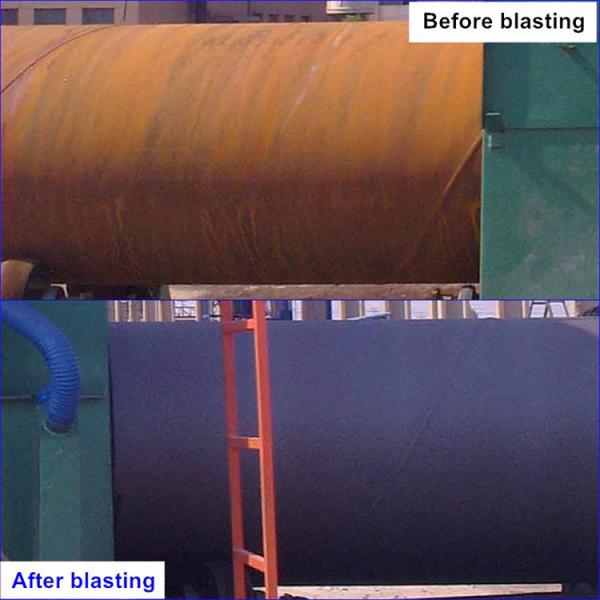

Steel pipe outer wall sand blasting machine is large, medium and small diameter steel tube, pipes and cylinder shotblast cleaning equipment, using high blasting device of high-speed projectile hit the steel pipe, cast pipe surface, make the fine polished metal color, increase tensile and compressive strength on the surface of the workpiece, make its have certain roughness, achieve anti corrosive, protection tube, prolong the service life of steel pipe.
Advantages of steel pipe outer wall sand blasting machine
*Improving anti-fatigue character of mechanical products and steel structure parts.
* Removing stress concentration
* Extending its wear life.
* Optimize surface technology state of work pieces.
* Increasing cleaning efficiency enormously.
* Reducing labour strength of cleaning job.
* Reducing environmental pollution.
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine

Item Model QG30
Dimension of cleaning workpiece(mm) Φ50-¢500*(6000-10000)
Roller speed(m/min) 1.0-3.0
Blast wheel Abrasive flow rate(kg/min) 2*250
Power(kw) 2*15
Dust collector Model BC-36
Ventilation capacity(m3/h) 5000-7000
Total power(excluding dust collector)(kw) 49.45
Overall dimension(excluding dust collector) (15000-22000)*3100*5400


Advantage:

a. High quality surface appearance
b. High productivity efficiency
c. Low cost
d. Environmental friendly

1

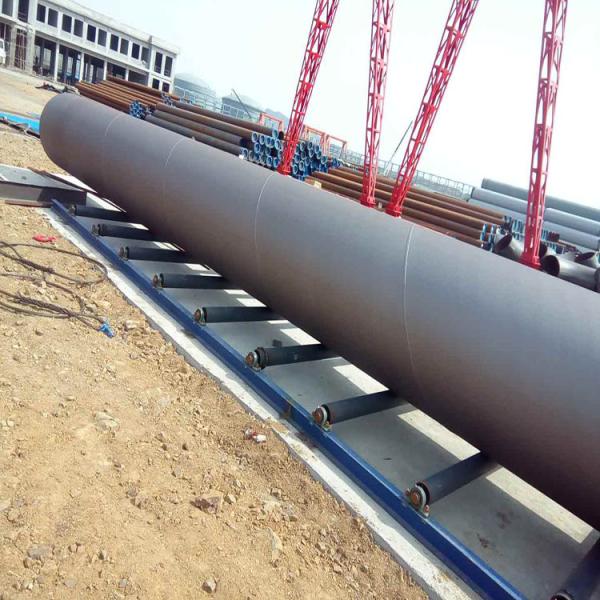

Grooves conveyor rollers system

 Consist of Inlet and outlet roller, Chamber inside roller
Roller distance 1000 mm
Reducer power 2*3 kw
Loading capacity 800 kg/m
Roller diameter 370 mm
Rotating speed 0.5-3 rpm (frequency control)
Transporting speed 0.5-8 m/min (frequency control)

2

Shot blasting system

Blasting chamber

 Material of protective area: SPMn13
Material of the chamber: Q235
Auxiliary chamber With rubber curtains For sealing the abrasive flying out of the chamber

Blasting turbines

 Quantity: 4 units
Blade structure: Straight line
Blasting capacity: 4*250 kg/min
Power: 4*15 kw
Speed: 76 m/s

3

Abrasive reclaim system

 Screw conveyor

Delivery capacity: 60 T/H

Screw diameter: 300 mm

Power: 2*4 kw

Qty: 2 sets

Bucket elevator

Lifting capacity: 60 T/H

Lifting speed: 1.21 m/s

Power: 5.5 kw

Qty: 1 set

Separator

Quantity of separation: 60 T/H

Air speed: 4-5 m/s

Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing)

Power: 4 kw

Qty: 1 set

4

Dust removal system

 Filtering material Polyester coated fitter cartridge
Fan power 18.5 kw
Total pressure 1820 pa
Ventilation volume 18000 m3/h
Cartridge quantity 24 pcs
Filtering area 360 m2
Dust falling way Automatic back pulse
Filtering level Fireproofing, Antistatic
Filtering accuracy 1 μm
Back Pulse Quantity 6 pcs
Dust emission level ≤80 mg/m3
Dust loading after cleaning 10 mg/m3
5 Electric control system PLC, One-button operation system, cables, low-voltage electric, fault automatic detection alarm function, etc
6 Noise ≤90 dB
7 Total electric power About 102 kw
8 Production time 40 workdays

3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
3.0m/Min 5000m3/H Steel Pipe Shot Blasting Machine
