Steel Pipe Automatic Blasting Machine Pipe Cleaning Machine Environmental Friendly
Steel Pipe Automatic Blasting Machine Pipe Cleaning Machine Environmental Friendly
Steel Pipe Automatic Blasting Machine Pipe Cleaning Machine Environmental Friendly
Steel Pipe Automatic Blasting Machine Pipe Cleaning Machine Environmental Friendly
Steel Pipe Automatic Blasting Machine Pipe Cleaning Machine Environmental Friendly
Steel Pipe Automatic Blasting Machine Pipe Cleaning Machine Environmental Friendly
Specifications
Brand Name :
Qingdao Puhua
Model Number :
QGW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
30 days
Packaging Details :
Stretch film
Machine :
Steel pipe shot blasting machine
Warranty :
One year
Dust Collector Material :
Needled Felt Bag or Cartridge Filter
Spare Parts :
Cr20S high chrome, ZGMn13
Fuel :
Electric
Cleaning Type :
shot blasting
Power(W) :
customized
Description

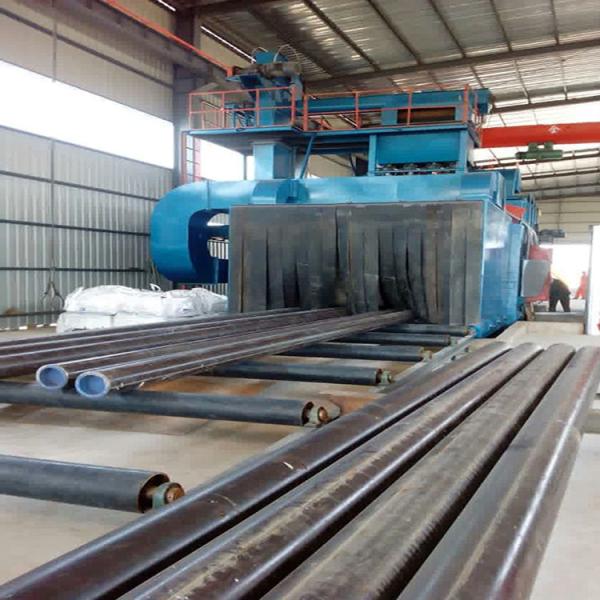

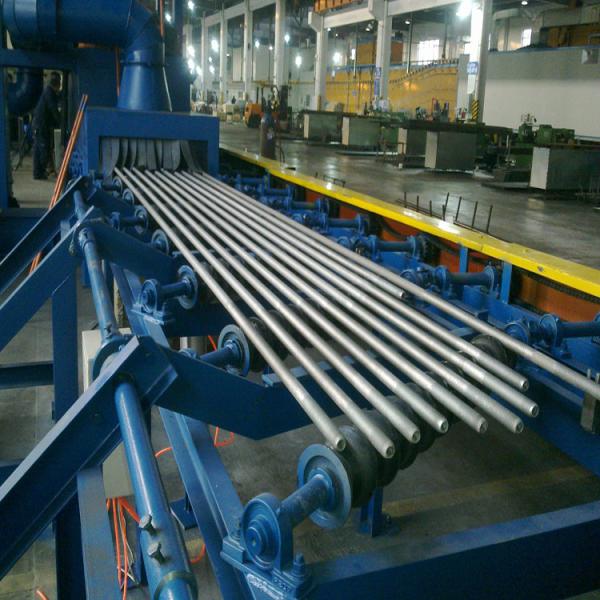

Roller Conveyor Type Outer Wall/External Steel Pipe Shot Blasting Machine

QG series steel pipe inner and outer wall shot blasting machine for surface treatment , wiping up the oxide coating , welding slag , appearing the metallic sheen , increasing the area of the surface , which is in favor of UV. It applies in the line of petroleum & chemical , steel , city centralized heating , centralized drainage etc.

Specifications:

Item Model QG30 QG80 QG150
Dimension of cleaning workpiece(mm) Φ50-¢500*(6000-10000) Φ150-¢800*(6000-8000) Φ(250-15000)*10000
Roller speed(m/min) 1.0-3.0 0.5-2.5 860mm/min
Blast wheel Abrasive flow rate(kg/min) 2*250 2*250 2*350
Power(kw) 2*15 2*15 2*30
Dust collector Model BC-36 BC-48 BC-42
Ventilation capacity(m3/h) 5000-7000 8000-14500 8000-11000
Total power(excluding dust collector)(kw) 49.45 53.77 76.25
Overall dimension(excluding dust collector) (15000-22000)*3100*5400 (18000-24000)*3850*6800 (24000*2265)*4986

Advantage:

a. High quality surface appearance

b. High productivity efficiency

c. Low cost

d. Environmental friendly
