High Speed Pipe Shot Blasting Machine , Industrial Sand Blasting Machine Anti Fatigue
High Speed Pipe Shot Blasting Machine , Industrial Sand Blasting Machine Anti Fatigue
Specifications
Brand Name :
Qingdao Puhua
Model Number :
QGW
Certification :
CE, ISO,BV,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
30 days
Packaging Details :
Stretch film
Machine :
Steel pipe shot blasting machine
Warranty :
One year
Dust Collector Material :
Needled Felt Bag or Cartridge Filter
Spare Parts :
Cr20S high chrome, ZGMn13
warranty :
12 months under normal use
way of control :
PLC frequency control
Machine Type :
Abrator
Industry Used :
industry
Description

Pipe Sand Blasting Machine for Dustless shot blasting machine

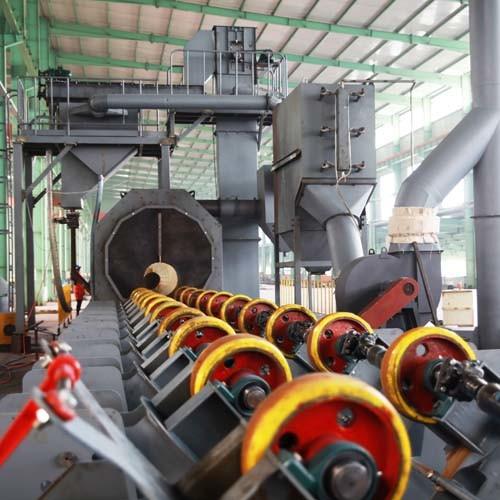

Steel pipe metal shot blasting machine

  • Application: machine is specifically designed for the continuous external surface treatment of pipes and cylindrical parts (bottles reservoirs, etc. ).

  • Typical employment: Coating with bituminous products oxide and calamine removal, preparation to painting of pipes and cylindrical parts, surface preparation to rubberizing.

  • Equipment: Frequency inverter for rolls conveyor, blast wheel, abrasive recycle system, digital control panel, optional customized automatic loading and offloading system. , dust collector.

Machine details:

  • The number and power of the turbines are chosen according to the requirement production rate.
  • PLC control system, stable quality and easy to get support from local.
  • Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
  • With BE rotating drum separator, high separating rate
  • All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
  • 20 years experienced engineers, customized service available.
  • After-sale service support will be provided within 24hours.
Technical parameters Name Steel pipe outer wall shot machine Steel pipe outer wall shot machine Steel pipe outer wall shot machine
Type QGW30 QGW80 QGW150
Size of cleaning piece(mm) diameter x length Φ50- Φ500×(6000-10000)mm Φ150- Φ800×(6000-8000) Φ(250-15000)×10000mm
Roller running speed(m/min ) 1.0-3.0 0.5-2.5 860mm/min
Blast Wheel Shot-blasting capacity(kg/min) 2×250 2×250 2×350
power(KW) 2×15 2×15 2×30
Dust collector Type BC-36 BC-48 BC-42
Wind volume(m 3 /h) 5000-7000 8000-14500 8000-11000
Total power(not include the dust catcher)KW 49.45 53.77 76.25
Overall dimension(mm) 15000-22000×3100×5400 18000-24000×3850×6800 24000×2265×4986
Remark Not include the dust collector Not include the dust collector

Not include dust collector
