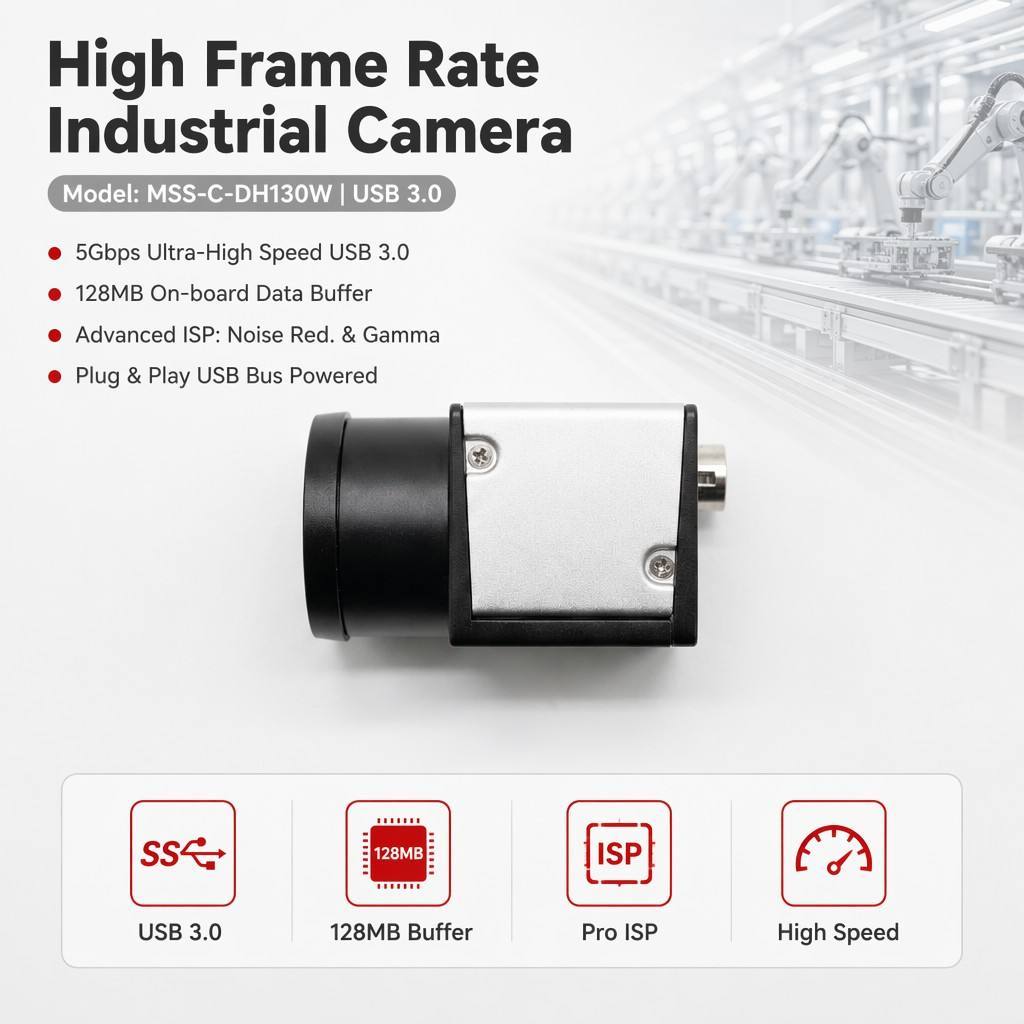

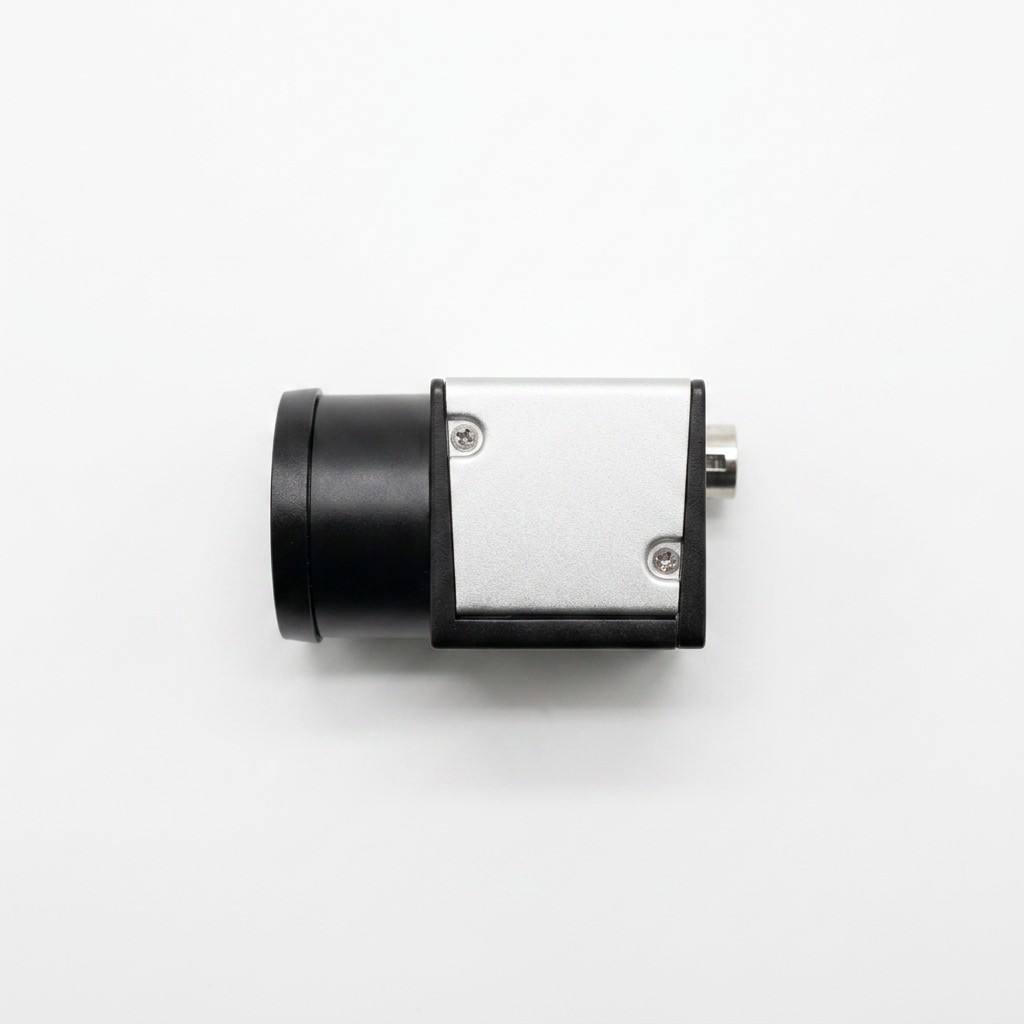

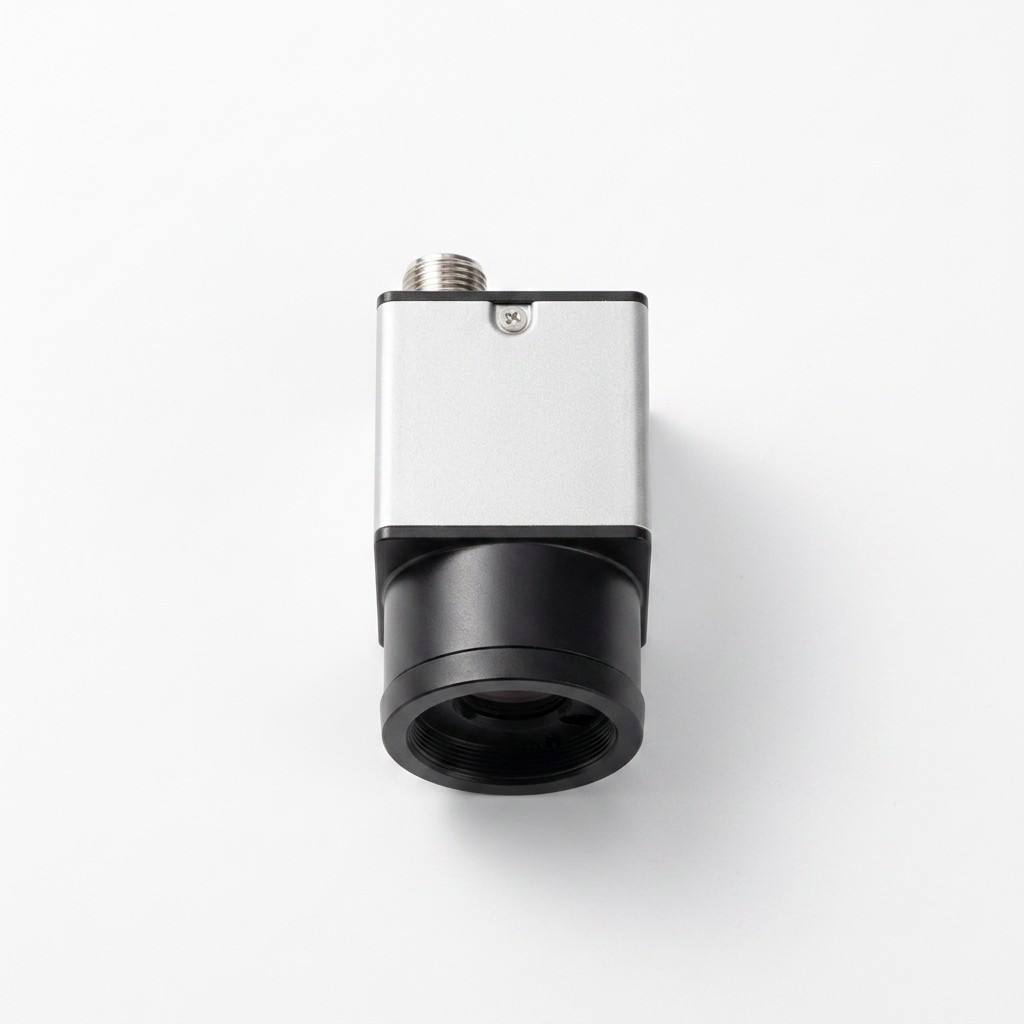

OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
OEM Factory USB 3.0 Microscope Camera 128MB On-board Buffer Burst Mode for Machine Vision CE MSS-C-DH130W
Specifications
External Display Support :
Yes
Price :
£217.13-239.59
dimension :
Custom Size
illumination :
None
Dioptric Adjustment :
N/A (Digital Imaging)
IP Rating :
IP20
MOQ :
1
Calibration :
Manual Calibration
Display Type :
HDMI/LCD Display
Logo/graphic design :
no
Focusing Distance :
Depending on Lens
Model Number :
MSS-C-DH130W
customized support :
OEM, ODM
warranty :
1 Year
Focus Type :
Manual Focus
Brand Name :
MSS
Place of Origin :
Shanghai, China
type :
Industrial Camera, High Frame Rate Camera
camera resolution :
Other
Description
Product descriptions from the supplier

- 4K resolution

- 1/1.8" large target surface

- Ultra high picture quality

- Low noise and high sensitivity


functional characteristics
USB 3.0 interface with backward compatibility for USB 2.0, offering a theoretical transmission bandwidth of 5 GBps and powered via USB.
Compact structure, dimensions: 29mm × 29mm × 29mm
The 128 MB on-chip cache is used for data transmission or image retransmission in burst mode.
Supports various modes: software-triggered, hardware-triggered, and free-run.
Supports ISP features such as Sharpness, Noise Reduction, Gamma Correction, Look-Up Table, Black Level Correction, Brightness, and Contrast.
Color cameras support interpolation, white balance, color transformation matrices, chroma, saturation, and more.
Supports output in various image formats, including ROl, Binning, and Mirror.
Compatible with the USB 3 Vision protocol and the GenlCam standard
Meets CE, FCC, and RoHS certifications
Sensor PYTHON 1300
Sensor Type 1/2"CMOS
Shutter Type Global
Resolution ratio 1280 × 1024
Frame rate 208 fps
Depth 10
Black and White / Color Black and white
Pixel 4.8 μm × 4.8 μm
Pixel 1.3MP
Noise-signal ratio >38dB
Wide dynamic range 60dB
Image Format Mono8/10/10Packed
Binning Support
Decimation Support
ROI Support
X overturn Support
Y overturn Support
Gain 1~32
Gamma Range: 0-4, supports LUT
Shutter Exposure 40μS~1S
Image Acquisition Mode Software-triggered/Hardware-triggered/Free-running
SPC Support
FPN Support
Configuration Channel Supports saving custom configurations for two user groups
Cache 64 MB Image Cache
Interface USB3.0
GPIO Interface 1 optical coupling isolated input, 1 optical coupling isolated output, and 1 non-isolated input/output that can be configured
Lens Interface C-mount
Power supply mode Power supply via USB or direct current through the Hirose interface, with a voltage range of 9 V to 24 V.
Power dissipation 12V≈3.4W
Product size 29mm*29mm*29mm
Net weight 60 g
