Specifications
Brand Name :
MSS
Calibration :
Manual Calibration
Display Type :
HDMI/LCD Display
customized support :
OEM, ODM
warranty :
1 Year
External Display Support :
Yes
dimension :
Custom Size
illumination :
None
Dioptric Adjustment :
N/A (Digital Imaging)
IP Rating :
IP20
Logo/graphic design :
no
MOQ :
1
Model Number :
MSS-C-NF-HFD2412
Focusing Distance :
Depending on Lens
Focus Type :
Manual Focus
Price :
$11,000-11,400
Place of Origin :
Shanghai, China
type :
Industrial Camera, Shortwave infrared camera
camera resolution :
Other
Description
Product descriptions from the supplier

InGaAs detector, response wavelength 0.4~1.7um

Black level correction, good image uniformity

Gigabit network interface, compatible with vision standard

Designed for short-wave infrared imaging and microscopic imaging in low-light scientific research

Resolution 1280X1024, frame rate can be 72FPS, support ROI

Driver-free directly supports software such as halcom, vision pro, etc., easy for system integration


Sensor type CMOS
Target size 1/2"
Camera type Mono
Pixel Size 5umX5um
Effective pixels 1.3MP
Resolution @ frame rate 1280X1024@72FPS
Exposure mode Frame exposure
Sensitivity 121mV1/30s

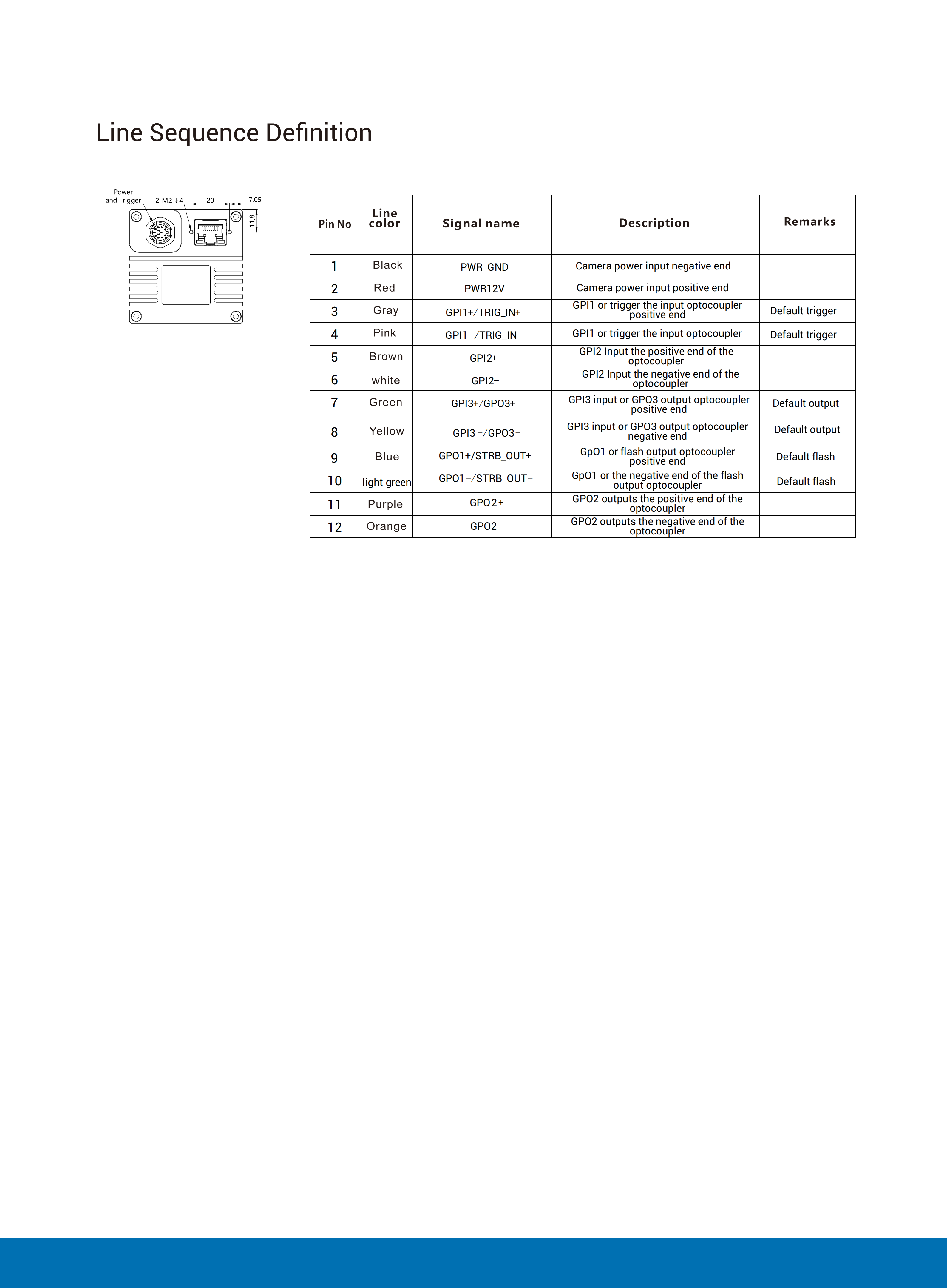

I/0 port 1 trigger input, 1 flash output; One GPI input, one GPO output, and one non-isolated bidirectional I0
Output pixel position width 10bit
AD width 12bit
Frame buffer 256MB
Time of exposure 0.0130~7987.2
Maximum gain (multiple) 126
User EEPROM 2KB
Frequency output format Mono 8bit
Visual standard protocol GigE Vision V1.2 GenlCam
Lens interface C mount,
Port Gigabit Network
Power supply 12V
Power <12W
Boundary dimension 59.5X59.5X40mm (Lens mount and back housing mount are not included)
Weight <250g
Working Temperature 0~40
Working Humidity 20~80% (No Condensation)
Storage Temperature -30~60
Storage Humidity 20~95% (No Condensation)

Operating system WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MacOs system
Drive program DirectShow components Halcon special components Labview dedicated drive OCx components TWAIN components
Programming Language C/C++/C#/VB6/VB.NET/D e l p h i/BCB/Python
Programmable Control Image size (ROl), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control

NF-HFD2412 has a special camera that senses visible light andshort-wave infrared, which is suitable for fluorescence imaging,laserspottrackingimagingsemiconductordetection solar celldetection, hyperspectral imaging, etc.

Application industry:
It is suitable for fluorescence imaging, laser spot tracking imaging, semiconductordetectionsolarcelldetection,hyperspectral imaging etc.
Feature of product:
InGaAsdetectorresponsewavelength0.4~1.7um
Blacklevelcorrection,goodimageuniformity
Gigabit network interfacecompatiblewithvisionstandard
Designedforshort-waveinfraredimagingandmicroscopic imaginginlow-lightscientificresearch
Resolution1280X1024,framerate canbe 72FPS,supportROI
Driver-freedirectly supports software such ashalcom, visionpro, etc., easy for system integration
