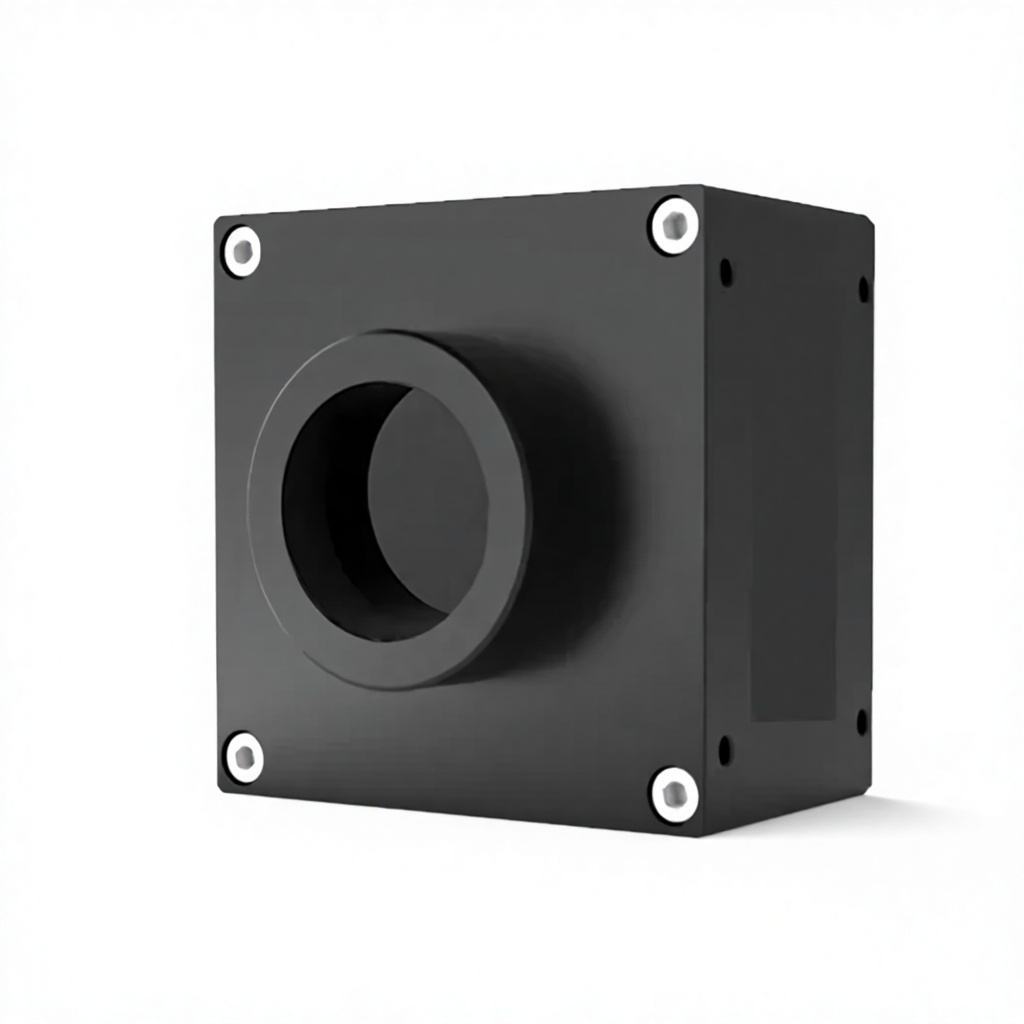

OEM Factory 100m Infrared Microscope Camera Multi-device Networking for Industrial QC CE MSS-C-NW-HFD612N-U

Specifications

External Display Support :

Yes

MOQ :

Model Number :

MSS-C-NW-HFD612N-U

Calibration :

Manual Calibration

Display Type :

HDMI/LCD Display

customized support :

OEM, ODM

warranty :

1 Year

Logo/graphic design :

Place of Origin :

Shanghai, China

Focusing Distance :

Depending on Lens

Brand Name :

MSS

dimension :

Custom Size

illumination :

None

Dioptric Adjustment :

N/A (Digital Imaging)

IP Rating :

IP20

camera resolution :

Other

Focus Type :

Manual Focus

type :

Industrial Camera, Shortwave infrared camera

Price :

$1,350-1,400

Description

Product descriptions from the supplier

100 meters long-distance stable transmission.

Compatible with VISION standard, the free drive directly supports software such as Halcon and VisionPro.

Support external trigger and flash synchronization, up to 7 GPIO, all opto-isolated.

Support 8bit to 12bit lossless format output.

SDK supports Windows, Linux, Mac OS systems.

Unique data packet retransmission technology ensures reliable data transmission.

Excellent SDK, easy to use like a USB camera, plug and play.

Support multiple cameras working at the same time, the number is not limited, and can be networked arbitrarily.

Sensor 4/3" CMOS
Shutter type Rolling shutter
Camera type Mono
Pixel size 3.3umx3.3um
Effective pixels 5MP
Resolution @ frame rate 2640X1968MAX@21.25FPS
Exposure mode Line exposure
GPIO 1 trigger input, 1 flash output; 2 GPI inputs and 3 GPO outputs
Sensitivity 1880 LSB
Output pixel width 12bit
AD width 12bit
Frame buffer 128M Bytes
Exposure time range 0.011~5767.2ms
Maximum gain (multiple) 160
User EEPROM 2K Bytes
Video output format Mono 8/12bit
Visual standard protocol GigE Vision GenlCam
Lens interface C mount
Port Gigabit Network
Power supply Supports 12-24V ±10%; typical value: 12V
Power <5W

Boundary dimension 59.5x59.5x35.5(mm)(Lens base and rear shell interface are not included)
Weight <250g
Working temperature 0~50
Working humidity 20~80% (No Condensation)
Storage temperature -30~60
Storage humidity 20~95% (No Condensation)
Operatingsystem WindowsXP/7/8/10/1132-bitand64-bit systems,Linux32-bit and64-bit systems, ARM Linuxsystems,Android systems,andMACsystems

Drive program Support GigE Vision protocol software, DirectShow components, Halcon dedicated components, LabVIEW dedicated drivers, OCX components, and TWAIN components
Programming language C/C++/C#/VB6/VB.NET/D e l p h i/BCB/Python/Java
Other functions Support any size ROl custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LuT table, frame rate adjustment, custom camera name, etc.

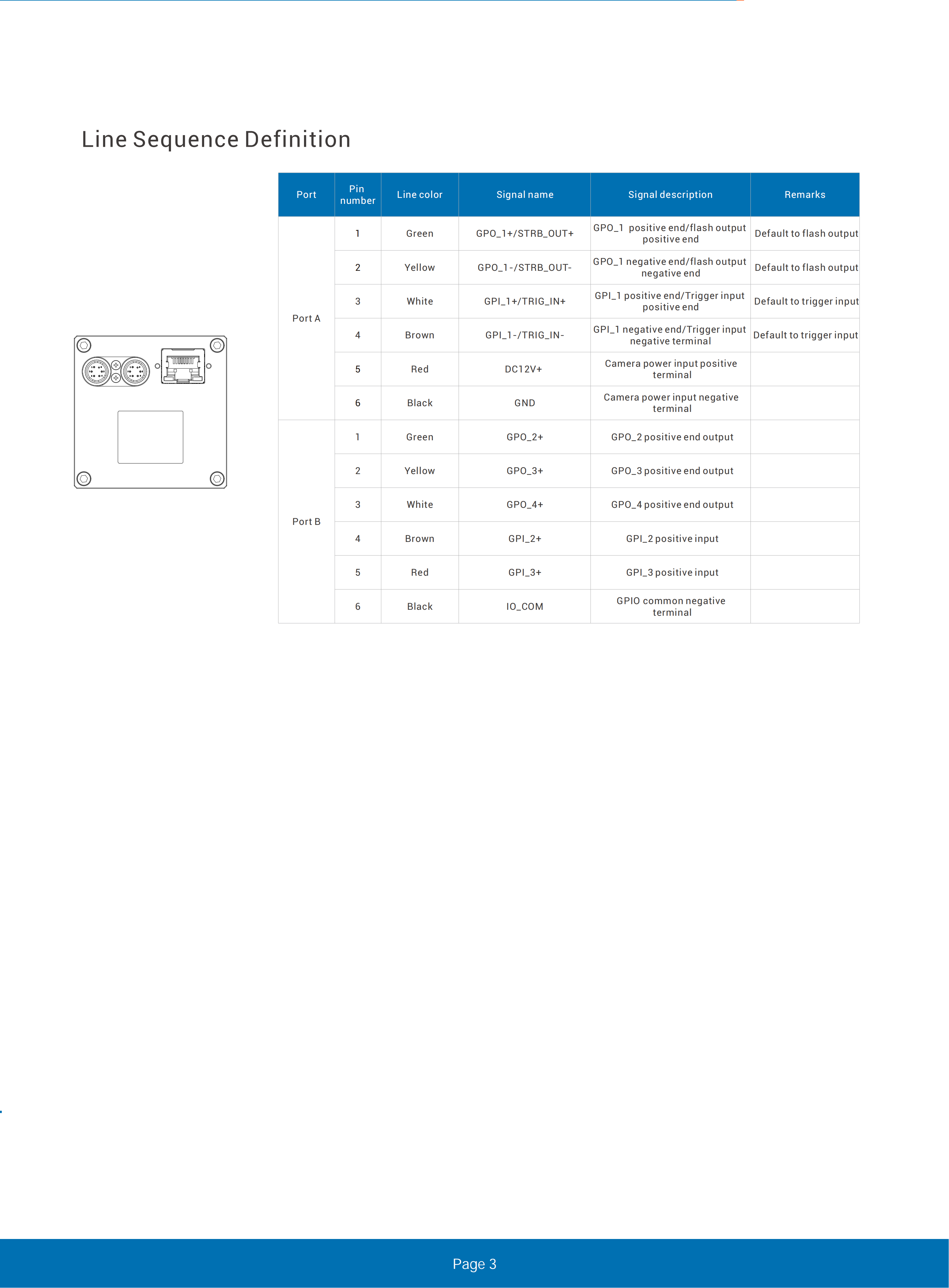

Port A
Green
GPO_1 positive end/flash output positive end
GPO_1+/STRB_OUT+
Default to flash output
GPO_1 negative end/flash output negative end
Yellow
GPO_1-/STRB_OUT-
Default to flash output
White
GPI_1 positive end/Trigger input positive end
GPI_1+/TRIG_IN+
Default to trigger input
GPI_1 negative end/Trigger input negative terminal
Brown
GPI_1-/TRIG_IN-
Default to trigger input
Red
DC12V+
Camera power input negative terminal
Black
GND
Camera power input negative terminal

Port B
Green
GPO_2+
GPO_2 positive end output
Yellow
GPO_3+
GPO_3 positive end output
White
GPO_4+
GPO_4 positive end output
Brown
GPI_2+
GPI_2 positiveinput
Red
GPI_3+
GPI_3 positive input
Black
I0_COM
GPIO common negative terminal

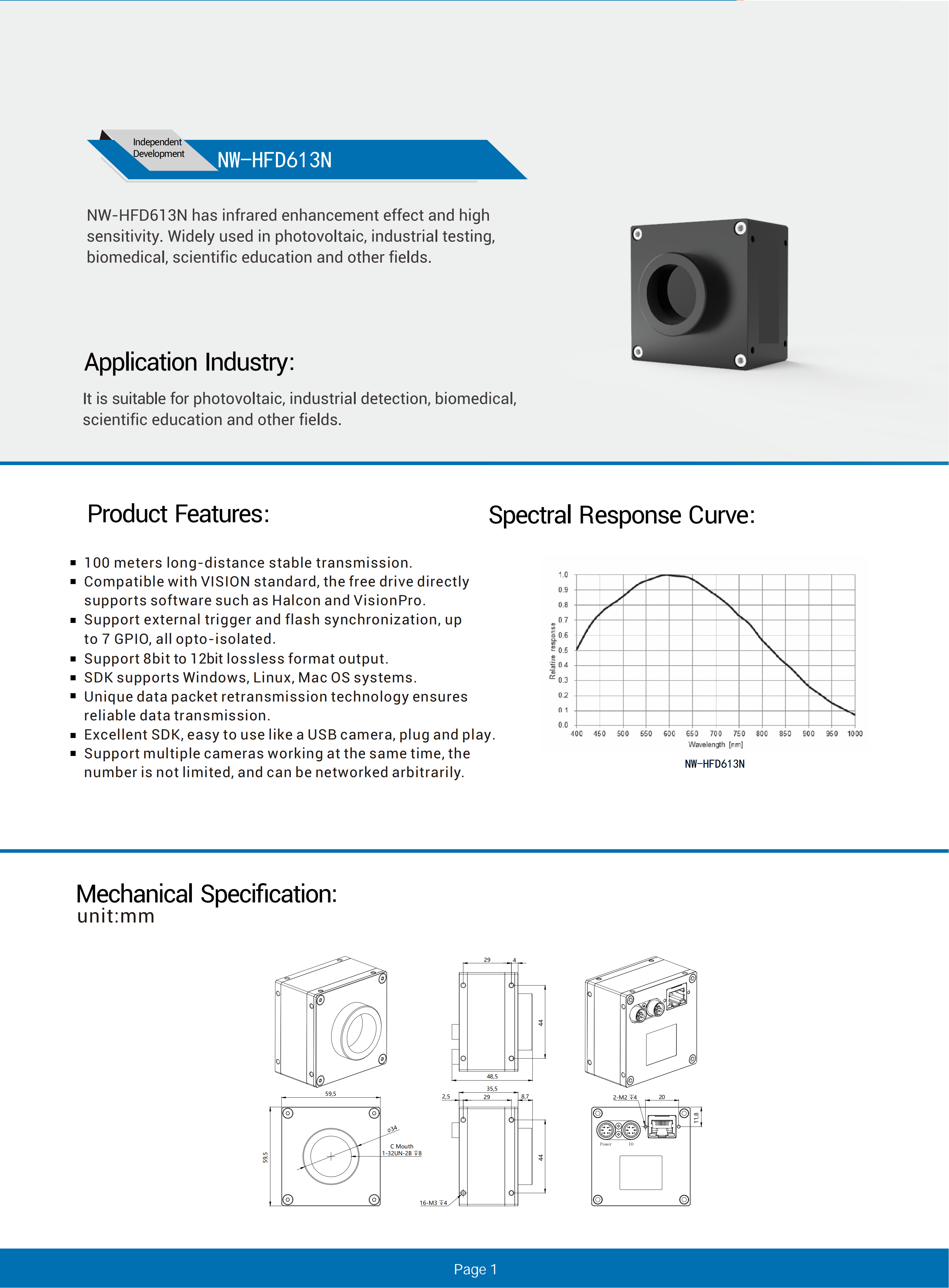

Product Features: 100 meters long-distance stable transmission. Compatible with viSioN standard, the free drive directly supports software such as Halcon and VisionPro. Support external trigger and flash synchronization, up to 7 GPIO, all opto-isolated.
Support 8bit to 12bit lossless format output. SDK supports Windows, Linux, Mac OS systems. Unique data packet retransmission technology ensures reliable data transmission.
Excellent SDK, easy to use like a USB camera, plug and play Support multiple cameras working at the same time, the number is not limited, and can be networked arbitrarily.
