Manufacturer 20mm Pen Microscope Camera GigE 100m Long Distance for Laboratory Research CE MSS-M-HFN343HDHN

Specifications

External Display Support :

Yes

dimension :

Custom Size

illumination :

None

Dioptric Adjustment :

N/A

IP Rating :

IP20

Brand Name :

MSS

Place of Origin :

Shanghai, China

Calibration :

Manual Calibration

Display Type :

LCD Display

customized support :

ODM, OEM

warranty :

1 Year

Model Number :

MSS-M-HFN343HDHN

Logo/graphic design :

MOQ :

Focusing Distance :

Based on the rate

Focus Type :

Auto Focus

Price :

$310-350

type :

Industrial Camera

camera resolution :

Other, 1920*1080

Description

Product descriptions from the supplier

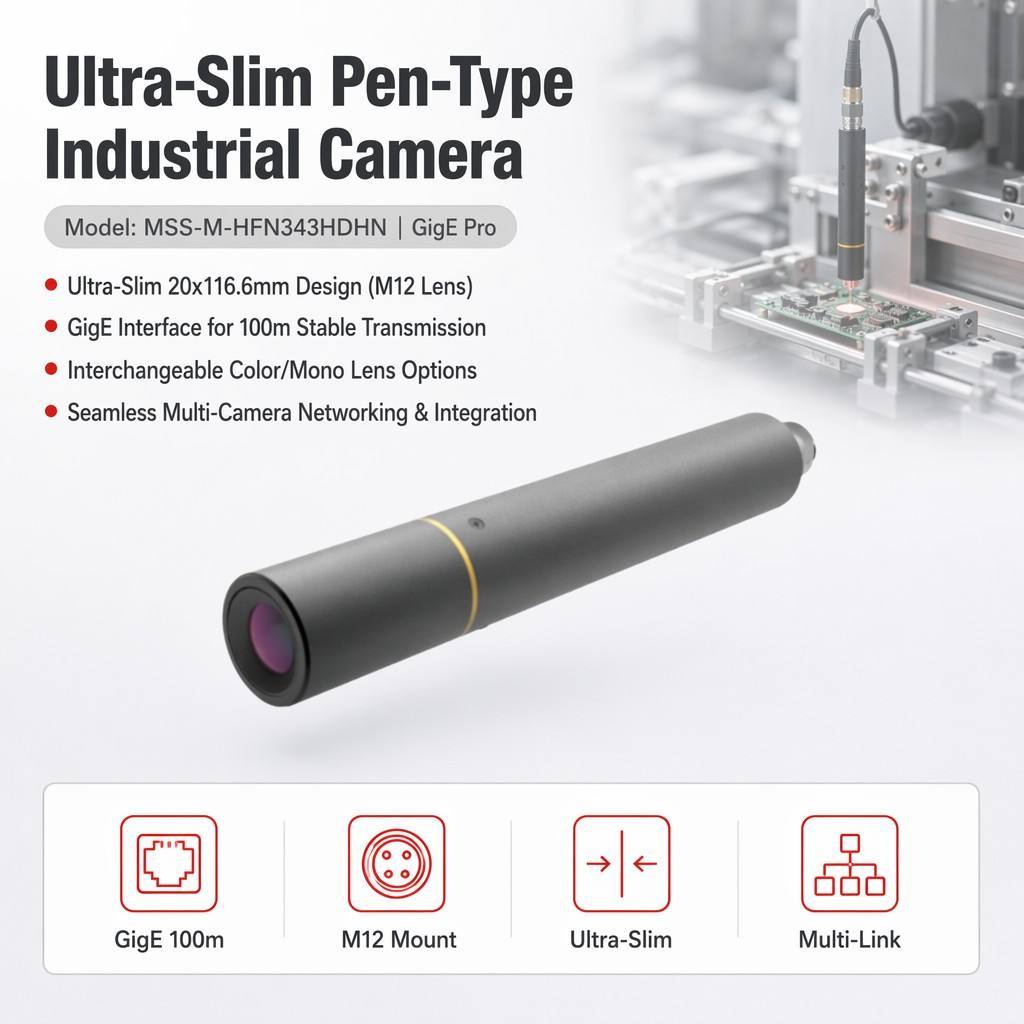

Supports M12 lens, with a contour cross-sectional size of 20x116.6mm.

The camera/optional black and white lens can be replaced without being limited by the field of view.

Gigabit network interface, capable of stable transmission over a long distance of 100 meters.

Supports the simultaneous operation of multiple cameras, with no limit on the number, and allows for arbitrary networking.

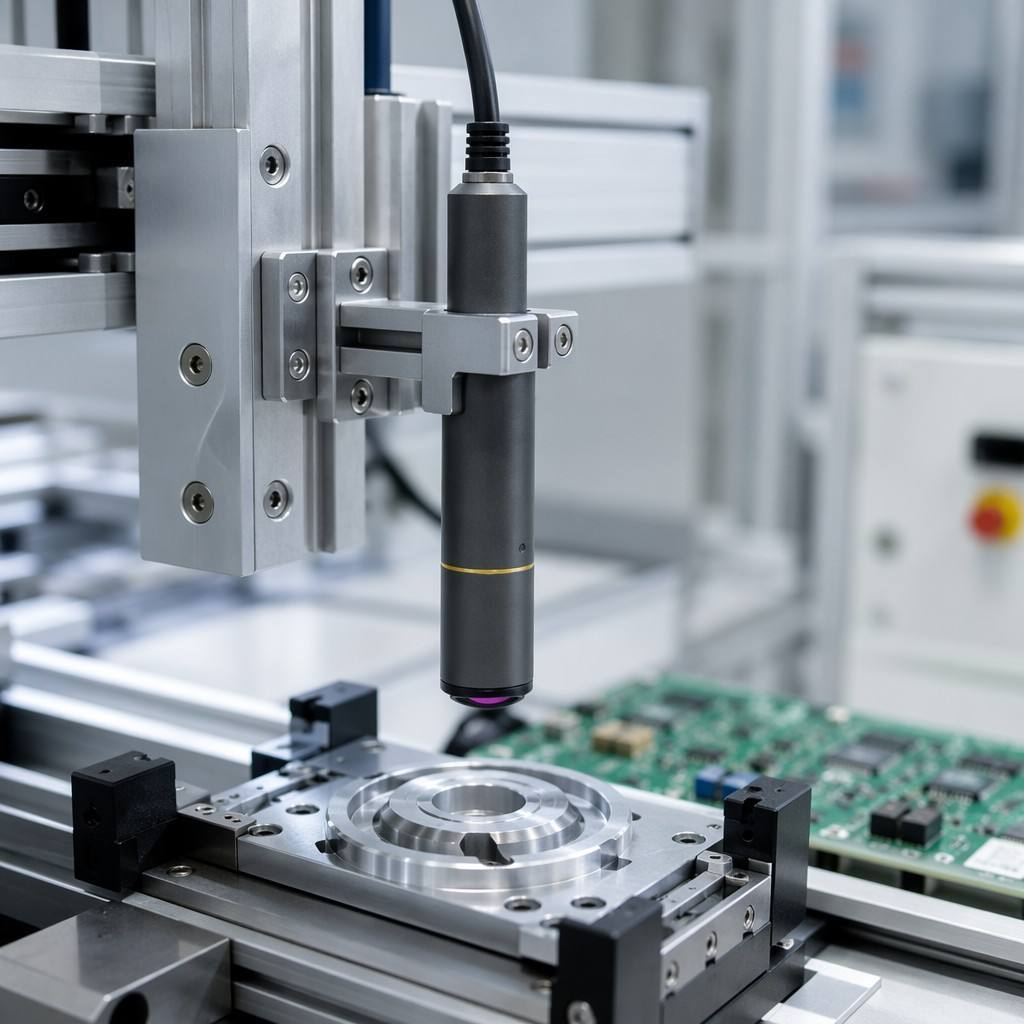

The MSS-HFN343HD/HN has a small crosS-section for easy side -by-side mounting and is particularly suitable for vision applications in theSMD industry industrial inspection, and biomedicalapplications.

Application Industry:
It is suitable for SMT industry, industrial inspection, biomedical and other visual applications.
Product Features:
Support M12 lenses, profile cross-section size 20x116.6mm Camera colour/ black and white optional, lens can be replaced without limitation of the field of view. Gigabit network interface, 100m long-distance stable transmission.
Support multiple cameras working at the same time, the number of unlimited, arbitrary networking.
With hardware image processing acceleration, reduce the host side of the CPU occupancy rate.
Compatible with vision standards, drive-free directly support for HalconVisionPro and other software.

Model Specifications	MSS-HFN343HD	MSS-HFN343HN
Sensor	1/2.6"CMOS
Camera type	Colorr	Mono
Pixel size	3umx3um
Effective pixels	2.3MP
Resolution @frame rate	1920x1200@52fps
Exposure mode	Frame exposure
Signal to Noise Ratio	38dB
Dynamic range	71.4dB
Sensitivity	3.1V/lux*s	3.6V/lux*s
GPIO	1 trigger input
Output pixel width	8bit
AD width	10bit
Frame buffer	128M Bytes
Exposure time range	0.014~786.4ms	0.014~917.5ms
Maximum gain(multiple)	16
User EEPROM	2K Bytes
Video output format	Bayer 8bit	Mono 8bit
Visual standard protocol	GigE Vision V1.2 GenlCam
Lens interface	M12*0.5
Port	Gigabit Network
Power supply	9~12V
Power	<2.66W
Boundary dimension	φ20x116,6mm(Does not include the size of the back-end interface including an M12 lens-object distance of about 100mm, field of view size of 15.8x7mm)
Weight	<100g
Working temperature	0~50℃
Working humidity	20~80%(No Condensation)
Storage temperature	-30~60℃
Storage humidity	20~95%(No Condensation)
Operating system	WINXP,WIN7/8/1032 &64-bit systems,Linux and ARM Linux drivers and Android platform drivers MAC OS system
Drive program	Directshow components Halcon special components Labview dedicated drive OXC components TWAIN components
Programming language	C/C++/C#/VB6/VB.NET/D e l p h i/BCB/Python/Java
Other functions	Support any size ROl custom resolution,contrast and gamma adjustment,saturation adjustment,white balance correction , black level correction,custom dead point coordinate correction,ISPimage processing acceleration,3D noise reduction, custom LUT table,frame rate adjustment,custom camera name,etc.
