OEM Factory Fast AF Microscope Camera Large Field of View for Automation System QC Testing CE MSS-C-CAF4611

Specifications

Calibration :

Manual Calibration

Display Type :

HDMI/LCD Display

MOQ :

customized support :

OEM, ODM

warranty :

1 Year

Logo/graphic design :

Price :

$430-460

External Display Support :

Yes

Model Number :

MSS-C-CAF4611

Place of Origin :

Shanghai, China

dimension :

Custom Size

illumination :

None

Dioptric Adjustment :

N/A (Digital Imaging)

IP Rating :

IP20

Focus Type :

Auto Focus

type :

Industrial Camera

Focusing Distance :

Depending on Lens

Brand Name :

MSS

camera resolution :

1920*1080, 4 K

Description

Product descriptions from the supplier

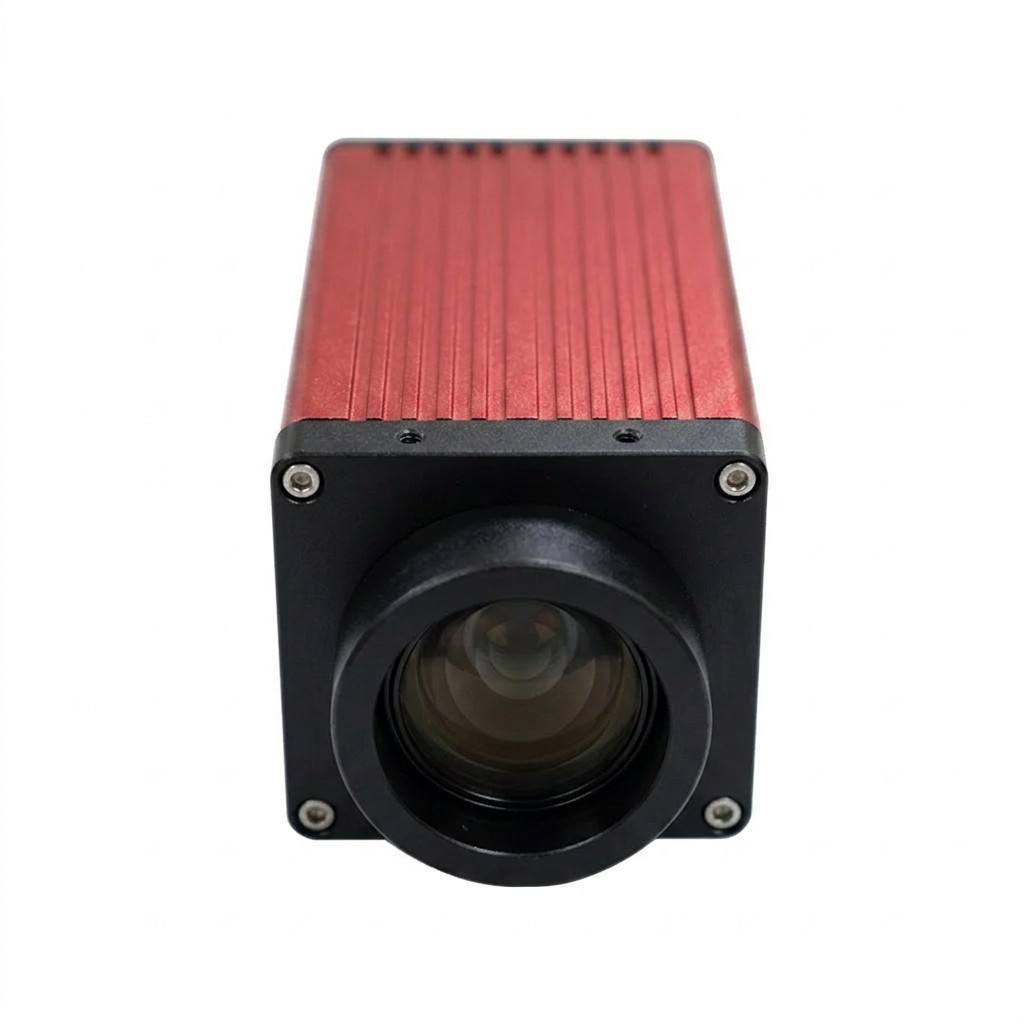

Big field industrial camera. Built in precision optical focusing system, combined with software fast algorithms, can automatically focus in real-time within an adjustable range, without the need for adjustment, automatically focusing and presenting clear images.

This camera outputs high-definition HDMI video signals, with automatic exposure, automatic white balance, automatic saturation adjustment, and automatic wide dynamic range. The camera has functions such as image storage, video recording, and reference judgment. Easy to operate, all operations can be completed with a mouse.

Built in our company's patented image processing technology, with realistic color reproduction and rich details, it is very helpful for industrial special testing.

This product is widely used in industrial testing, medical observation, teaching and research, automation systems and other fields.

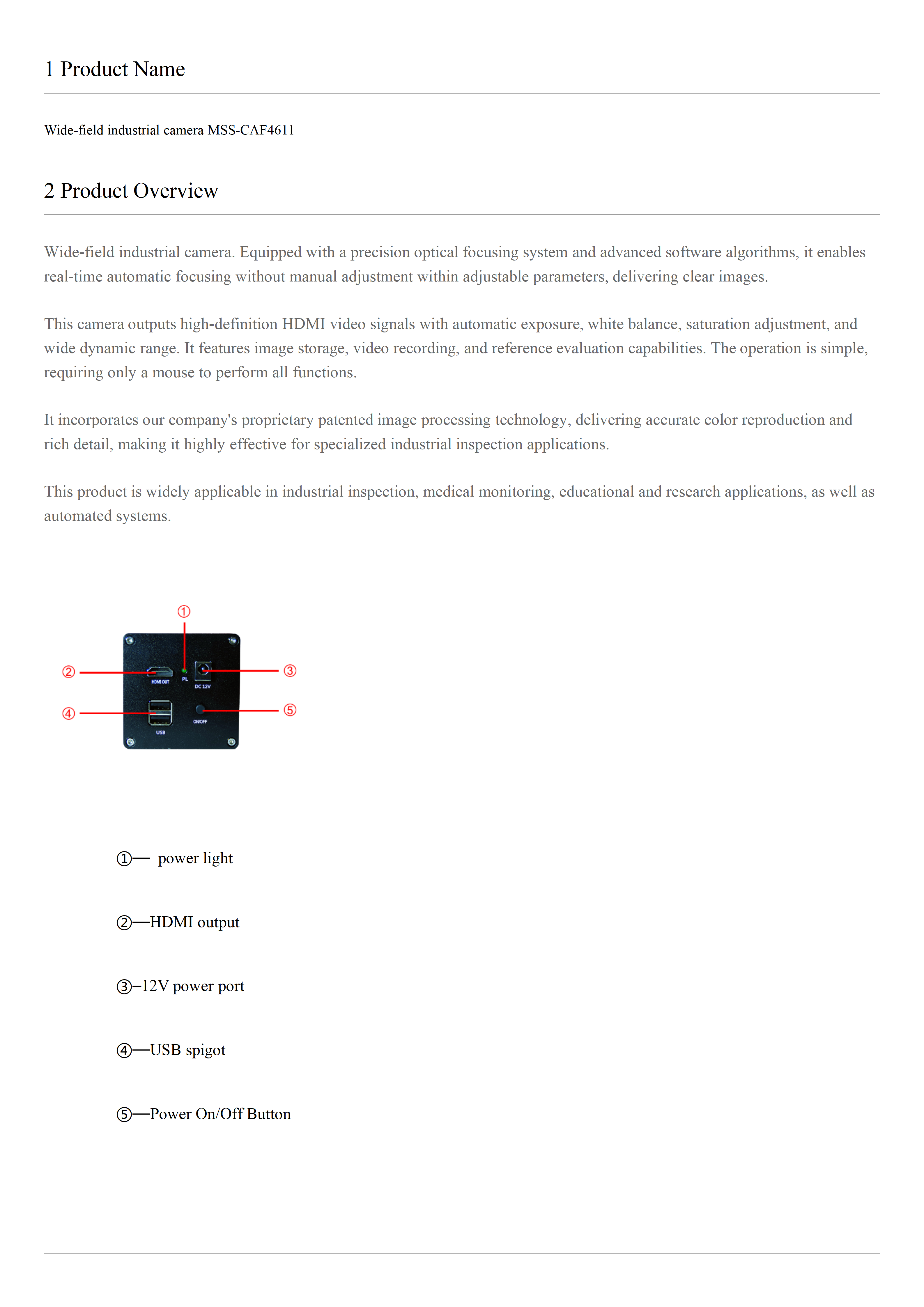

Wide-field industrial camera. Equipped with a precision optical focusing system and advanced software algorithms, it enables real-time automatic focusing without manual adjustment within adjustable parameters, delivering clear images.
This camera outputs high-definition HDMI video signals with automatic exposure, white balance, saturation adjustment, and wide dynamic range. It features image storage, video recording, and reference evaluation capabilities. The operation is simple, requiring only a mouse to perform all functions.
It incorporates our company's proprietary patented image processing technology, delivering accurate color reproduction and rich detail, making it highly effective for specialized industrial inspection applications.
This product is widely applicable in industrial inspection, medical monitoring, educational and research applications, as well as automated systems.

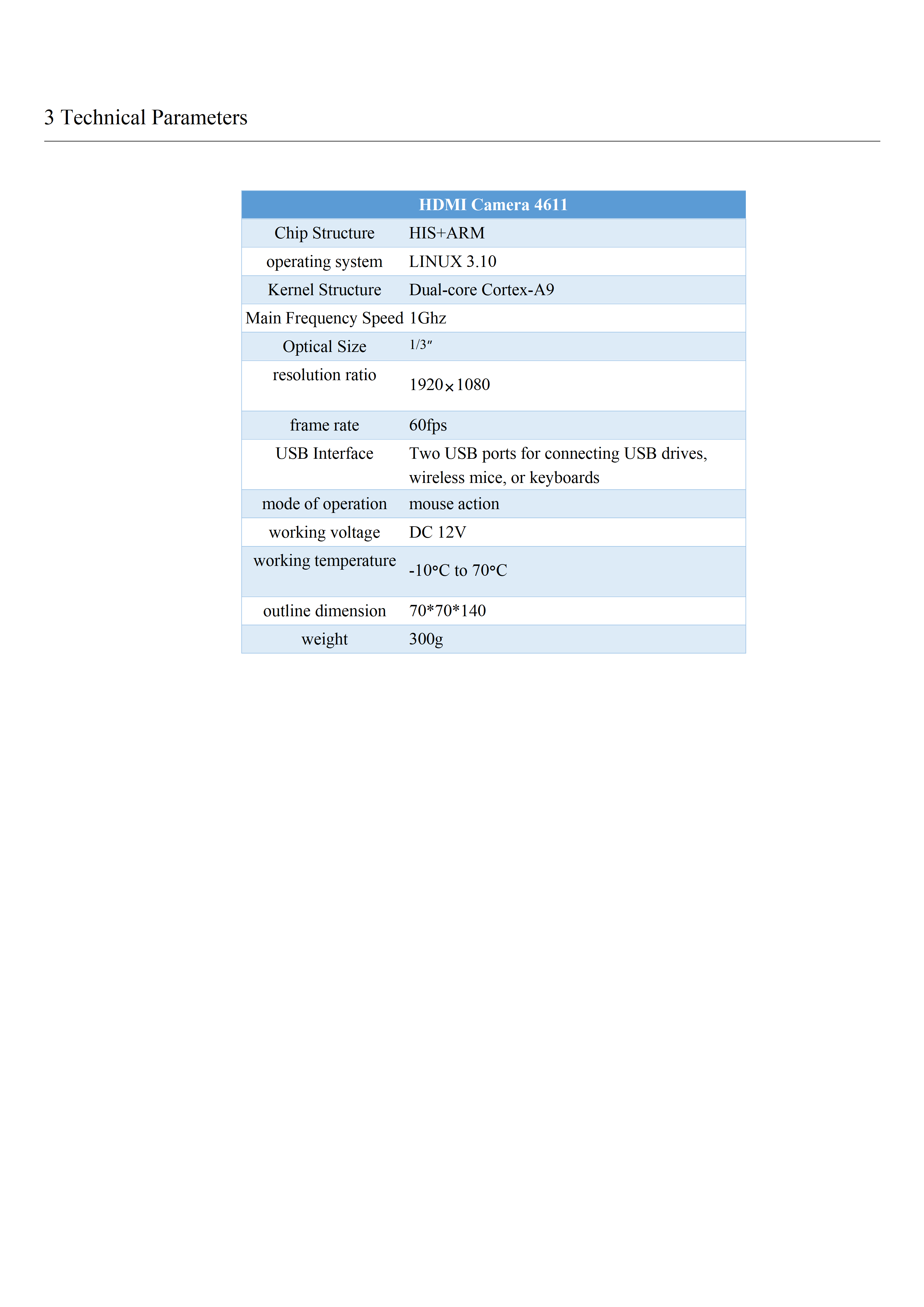

Chip Structure HIS+ARM
operating system LINUX 3.10
Kernel Structure Dual-core Cortex-A9
Main Frequency Speed 1Ghz
Optical Size 1/3″
resolution ratio 1920×1080
frame rate 60fps

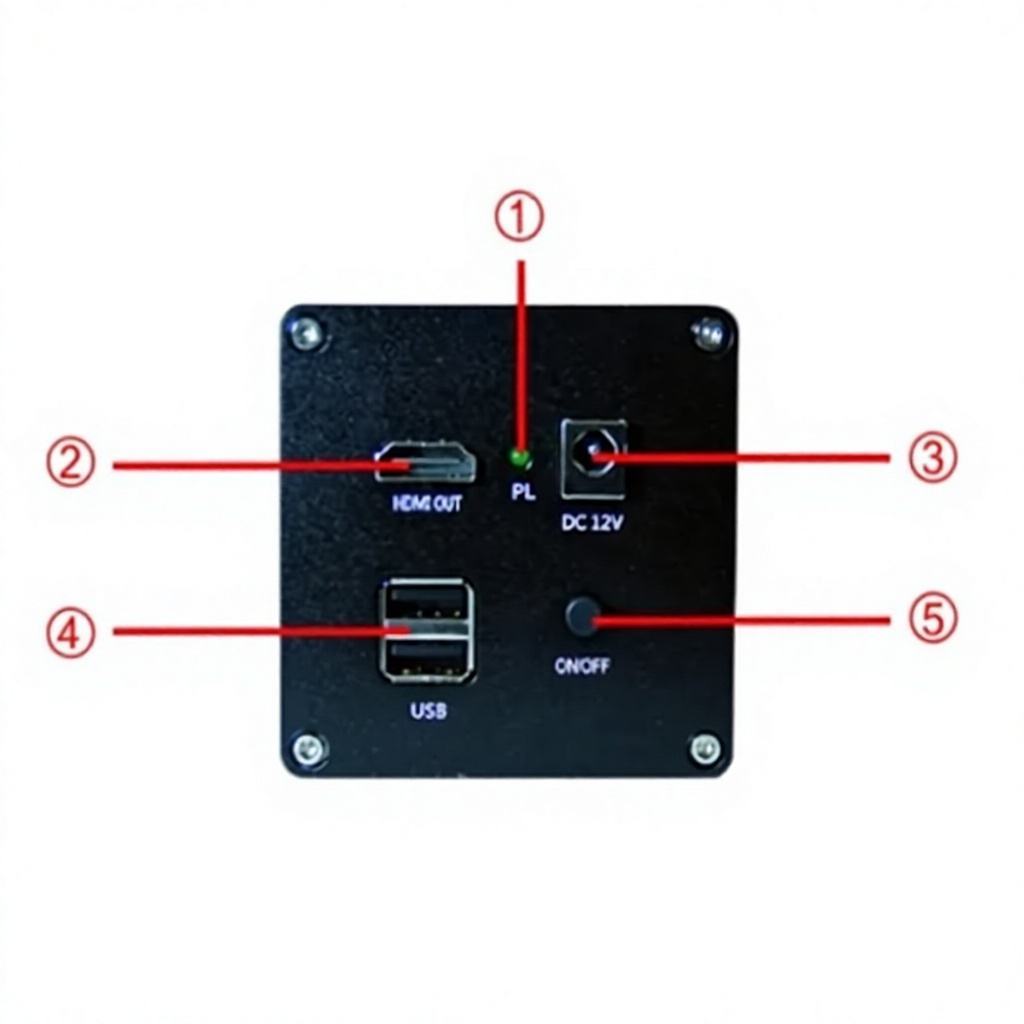

USB Interface Two USB ports for connecting USB drives, wireless mice, or keyboards
mode of operation mouse action
working voltage DC12V
working temperature -10℃ to 70℃
outline dimension 70*70*140
weight 300g
